Yamaha PSR-540 [77/160] Parameter edit1
![Yamaha PSR-540 [77/160] Parameter edit1](/views2/1019243/page77/bg4d.png)
77
FUNCTION
SONG
STYLE
VOICE LR12
F6 ParameterEdit
Octave R2 = 2
Pan R2 = 40
RevDepth R2 =120
ChoDepth R2 =108
DspDepth R2 =112
[BACK] button [NEXT] button
[BACK] button [NEXT] button
[BACK] button [NEXT] button
[BACK] button [NEXT] button
75

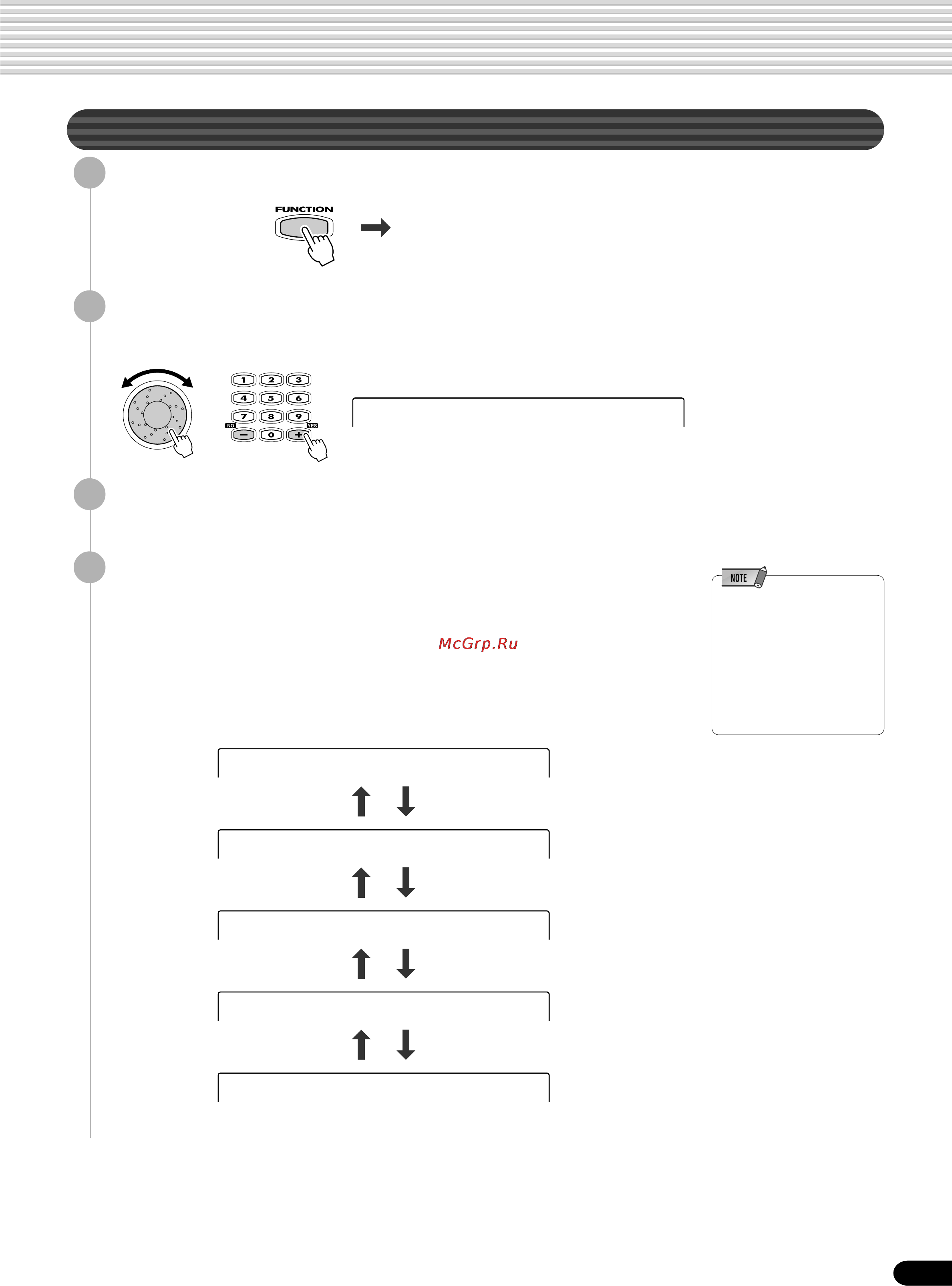

Parameter Edit
1
Press the [FUNCTION] button.
2
Select “Parameter Edit”.
Use the data dial, the [+/YES] button or the [-/NO] button.
3
Press the [NEXT] button to display the PARAMETER EDIT
screen.
4
Adjust the parameter value from the corresponding display.
• Use the data dial, the [+/YES] button, the [-/NO] button or the number
buttons [1]-[0].
• You can switch among the parts just as with the Mixer function above.
• Switch among the parameter displays by using the [NEXT] button and
[BACK] button as shown below.
• The Octave parameter of
the style tracks cannot be
edited.
• Minus settings for the Octave
and Pan parameters can be
directly entered by pressing
the appropriate number
button while holding the
[-/NO] button.
Part Settings
