9
WahClavi
801
DEMO
3

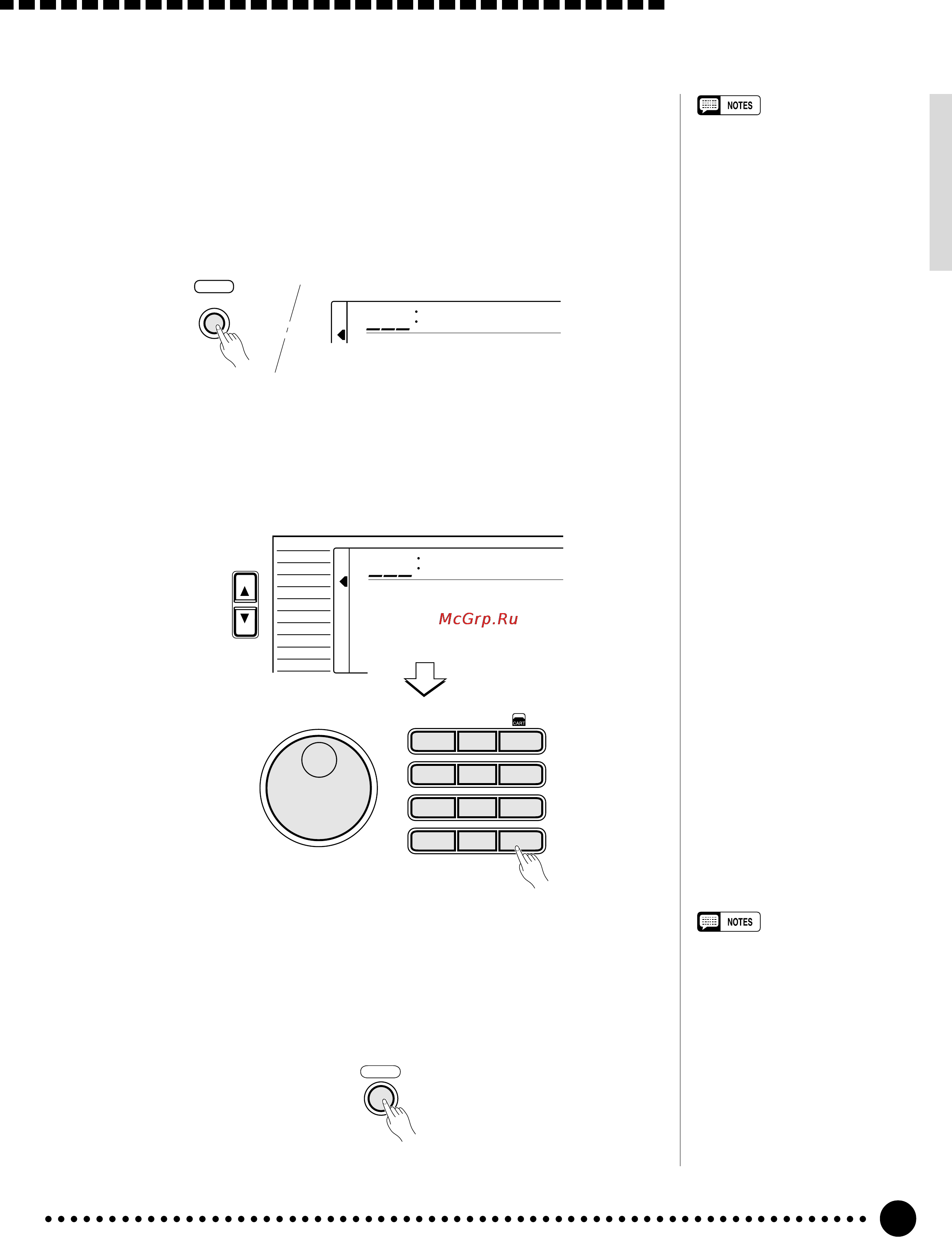

Press the [DEMO] Button...........................................................................................................
Press the [DEMO] button to start demo playback. The PSR-520 SONG
function will automatically be selected and the number and name of the first
demo song will appear on the top line of the display and the SONG [PLAY/
STOP] indicator will light. The demo will begin playing automatically. The
demo songs will play in sequence, and the sequence will repeat until
stopped.
• You can play along on the PSR-
520 keyboard while the demon-
stration is playing.
• The volume bars of the song
tracks at the bottom of the dis-
play will move in response to the
data in each track while the
demo plays.
• About the demo songs created
by the PSR-520 internal accom-
paniment styles:
* Chord names will appear on
the display and the volume
bars of the accomp tracks will
move in response to the data
in each track, while the demo
plays.
* Harmony effect (see page 20)
can be applied when playing
along with the chord progres-
sion of the song.
5
Exit When Done.............................................................................................................................................
Press the [DEMO] button, the SONG [PLAY/STOP] button, or the
AUTO ACCOMPANIMENT [START/STOP] button to stop demo play-
back, then press the [VOICE] button to exit from the SONG function and
return to the normal play-mode display when you’ve finished playing the
demo songs.
DEMO
• When you stop the demo songs
played in sequence and start
again by pressing the [PLAY/
STOP] button, the selected song
will play and stop automatically
when the selected song playback
has ended.
4
Skip to the Beginning Of a Different Demo Song.......................
While the demonstration is playing you can select any of the 25 demo
songs by using the [–/NO] and [+/YES] buttons, the number buttons or the
data dial. Playback will skip to the beginning of the selected song.
–
/NO
+
/YES
654
0
789
123
1
– –
**
FUNCTION
WahClavi
801
VOICE
STYLE
SONG
REGIST MEMORY
MULTI PAD
DUAL VOICE
SPLIT VOICE
HARM
/
ECHO
OVERALL
DIGITAL EFFECT
The Demonstration
