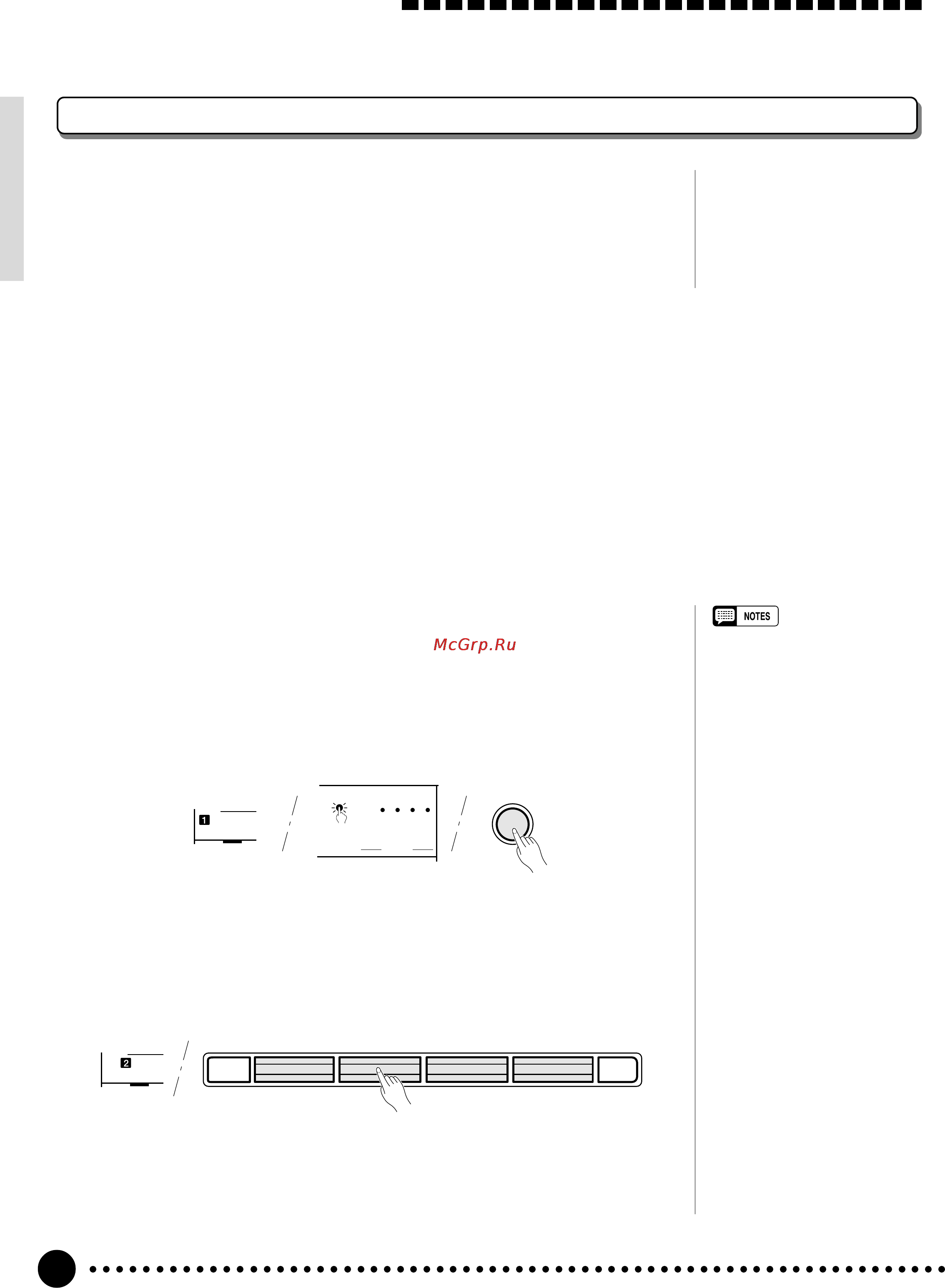

42
Using Auto Accompaniment
One Touch Setting
One Touch Setting lets you instantly select the appropriate panel settings
suitable for the current style. Each style (100 styles) contains four variations.
This means that you can freely use 400 different panel settings. The One Touch
Setting feature automatically sets the following parameters:
1
Turn On the One Touch Setting ......................................................................................
Press the [ONE TOUCH SETTING] button so that the “OTS” icon appears
next to the BEAT display and number “1 “ (type1) appears above “REGIST” on
the display. The panel settings, with the type1 selected, suitable for the cur-
rently selected style are automatically set up for you to play.
The BEAT indicator dots flash at the tempo and synchro start mode is en-
gaged.
• If the One Touch Setting is
turned ON when the NORMAL or
SPLIT mode is selected, the
FINGERED mode is automati-
cally selected.
• You can create your original
setting by editing the One Touch
Setting data and store it into the
Registration Memory — see page
43.
•“No OTS” will appear on the
display if the optional cartridge
styles have no one touch setting
data.
One Touch Setting Parameter List
• Voice number
• Octave
• Pan
• Dual Voice (Voice number, volume,
octave, reverb level, chorus level,
pan)
• Dual ON/OFF
• Split Voice (Voice number, volume,
octave, reverb level, chorus level,
pan, split point=59)
• DSP variation ON/OFF
• Multi Pad Kit number
• Style parameters=default
• Synchro start=ON
• Accomp volume=100
• Accomp split point=54
• Accomp large/small=large
• Tempo=Default (for the currently
selected style)
• Main A/B section
• Keyboard volume
• Reverb level
• Chorus level
• DSP level
• Harmony/Echo ON/OFF, type
• DSP type
• Sustain (Panel) ON/OFF
• Reverb ON/OFF
• Chorus ON/OFF
• DSP ON/OFF
2
Select another Type...............................................................................................................................
Press one of the REGISTRATION MEMORY buttons [2]~[4] to select an-
other type. The corresponding One Touch Setting number appears above
“REGIST” in the display, and the display changes to the one for the selected
type.
ONE TOUCH
SETTING
REPEAT CHORD
BEAT
OTS
REGIST
ACCOMP
FREEZE
MEMORIZE 1 2 3 4
REGIST
One Touch Setting can be turned OFF by pressing the [ONE TOUCH SET-
TING] button a second time so that the “OTS” icon disappears from the dis-
play.
