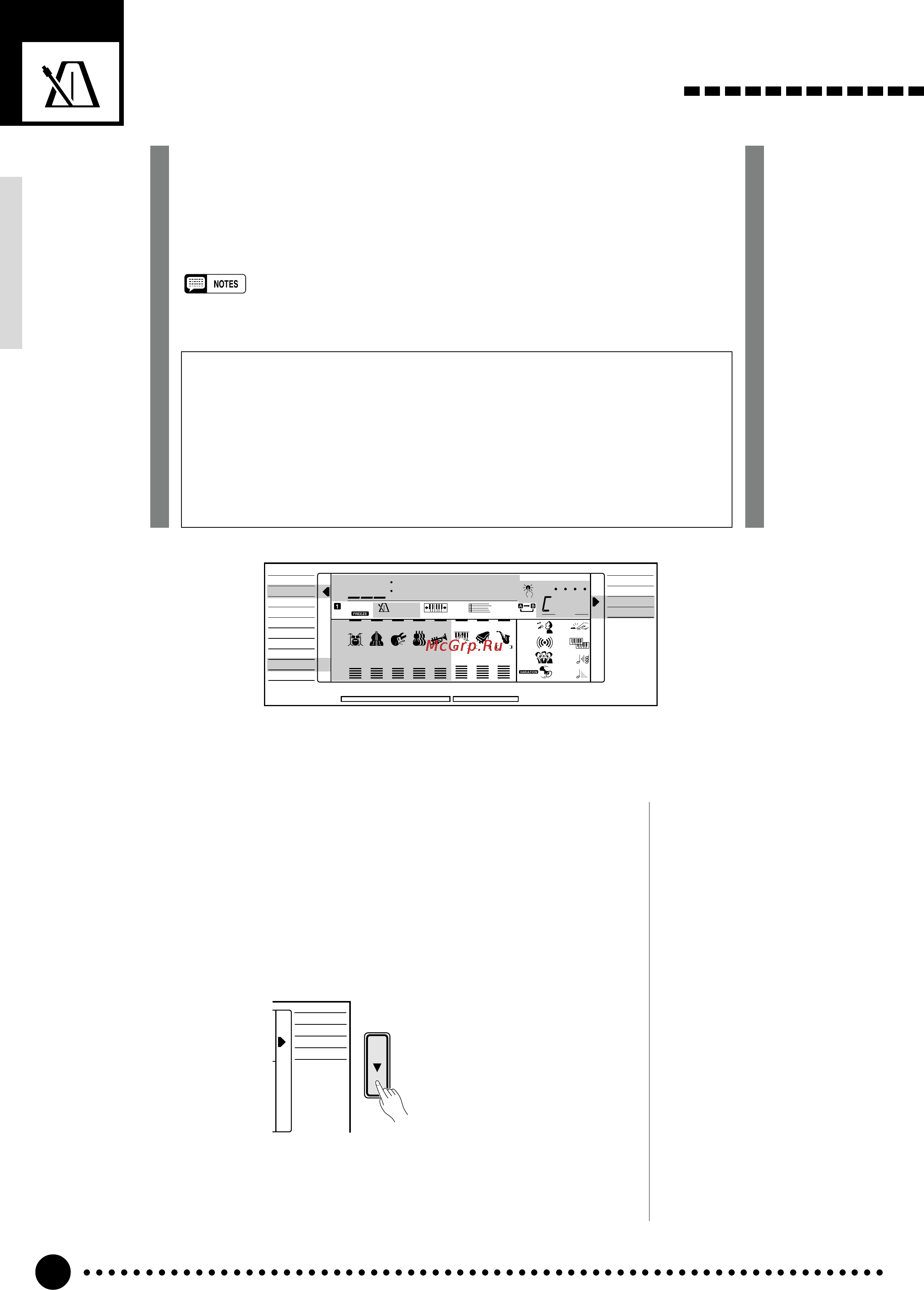

30
Using Auto Accompaniment
The PSR-520 has 100 different accompaniment “styles” that can be used
to provide fully-orchestrated or rhythm-only accompaniment. The PSR-
520’s sophisticated Auto Accompaniment system can provide automated
bass and chord backing that is perfectly matched to the selected accom-
paniment style.
• The maximum number of notes that can be played simultaneously on the PSR-520 keyboard is
reduced when the Accompaniment is used.
1
Select the SINGLE or FINGERED
Accompaniment Mode
.....................................................................................................................
Press the [MODE] button to the right of the display as many times as
necessary until the arrow in the display appears next to “SINGLE” or “FIN-
GERED” in the mode list to the right of the display. If you select the “SIN-
GLE” mode, accompaniment chords are played as follows:
NORMAL
SPLIT
SINGLE
FINGERED
ACCOMP TRACK SONG TRACK
8BeatPop
TEMPO TRANSPOSE MEASURE REPEAT CHORD
BEAT
TOUCHMINUS ONE
REVERB DUAL
CHORUS HARMONY
DSP SUSTAIN
RHYTHM BASS CHORD PAD PHRASE ACCOMP MELODY
2
MELODY
1
111
ON /
OFF
VOICE
VOL
REGIST
REC REC REC
OTS
801
134126152105 1011011
118 10 a01
VOICE
STYLE
SONG
REGIST MEMORY
MULTI PAD
DUAL VOICE
SPLIT VOICE
HARM
/
ECHO
OVERALL
DIGITAL EFFECT
NORMAL
SPLIT
SINGLE
FINGERED
About the PSR-520 Styles
The styles are created with the “Style File Format”, Yamaha’s original auto-accom-
paniment format which has evolved through years of development and refinement.
Style File Format allows you to use exceptionally high quality accompaniments with
a variety of chord types through its unique conversion system. Style File Format
styles, based on GM system level 1, can be played with the GM compatible tone
generator. In addition to the internal styles, the optional music cartridges let you use
different high quality styles created with the Style File Format.
