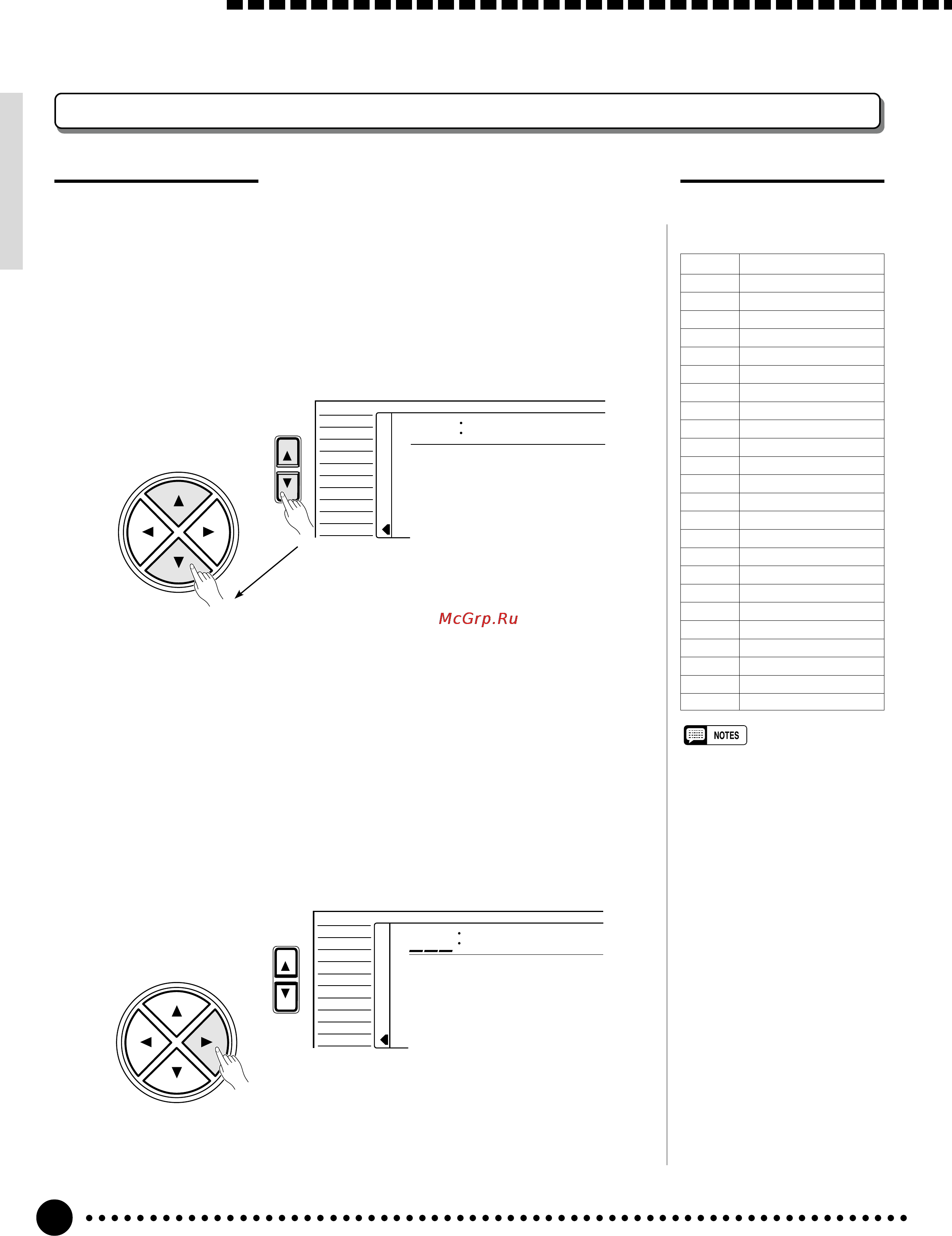

28
Digital Effects
Changing the DSP Effect
Selecting the DSP Effect Type
2
Select the DSP Type..............................................................................................................................
Use the cursor [>] button to enter theDSP Type function and then select
one of the 46 DSP types using the [–/NO] and [+/YES] buttons, the number
buttons or the data dial. The name of the selected DSP type appears on the
top line of the display.
FUNCTION
≤Stage2
110
VOICE
STYLE
SONG
REGIST MEMORY
MULTI PAD
DUAL VOICE
SPLIT VOICE
HARM
/
ECHO
OVERALL
DIGITAL EFFECT
CURSOR
The DSP Types
01~04 Hall 1~4
05~08 Room 1~4
09, 10 Stage 1, 2
11, 12 Plate 1, 2
13, 14 Early Reflection 1, 2
15 Gate Reverb
16 Reverse Gate
17~21 Chorus 1~5
22~25 Flanger 1~4
26 Symphonic
27 Phaser
28~32 Rotary Speaker 1~5
33, 34 Tremolo 1, 2
35 Guitar Tremolo
36 Auto Pan
37 Auto Wah
38 Delay L, C, R
39 Delay L, R
40 Echo
41 Cross Delay
42 Distortion Hard
43 Distortion Soft
44 EQ Disco
45 EQ Telephone
46 OFF
1
Select the DSP Type Function..........................................................................................
Press the [FUNCTION] button to the left of the display as many times
as necessary until the arrowhead in the display appears next to “DIGITAL
EFFECT” in the function list to the left of the display, and use the cursor
[▲] and [▼] buttons to select the DSP Type function, “Dsp m”.
FUNCTION
Dsp ≥
VOICE
STYLE
SONG
REGIST MEMORY
MULTI PAD
DUAL VOICE
SPLIT VOICE
HARM
/
ECHO
OVERALL
DIGITAL EFFECT
CURSOR
• See page 79 for a complete
listing of the DSP types.
• The DSP type can be reset to its
default by simultaneously press-
ing the [–/NO] and [+/YES] but-
tons.
• If the Voice Set function is ON
(page 69) the DSP type will
change automatically whenever a
different voice is selected via the
VOICE function.
• When the Rotary Speaker 1~5 is
selected, the [DSP VARIATION]
button (ON/OFF) will switch the
speed of the rotating speaker
between fast (ON) and slow
(OFF).
• You can return to the previous
display, “Dsp
m
”, by pressing the
cursor [
<
] button, and choose
the REVERB or CHORUS effect.
• If you want to disable the DSP
effect for all the data excepting
VOICE function voice, select
OFF in the Type selection.
