Moxa EDS-405A-EIP-T [105/109] Export configuration

Moxa Managed Ethernet Switches EDS Configurator GUI

4-5

Export Configuration

The Export Configuration utility is used to save the entire configuration of a particular Moxa switch to a text

file. Take the following steps to export a configuration:

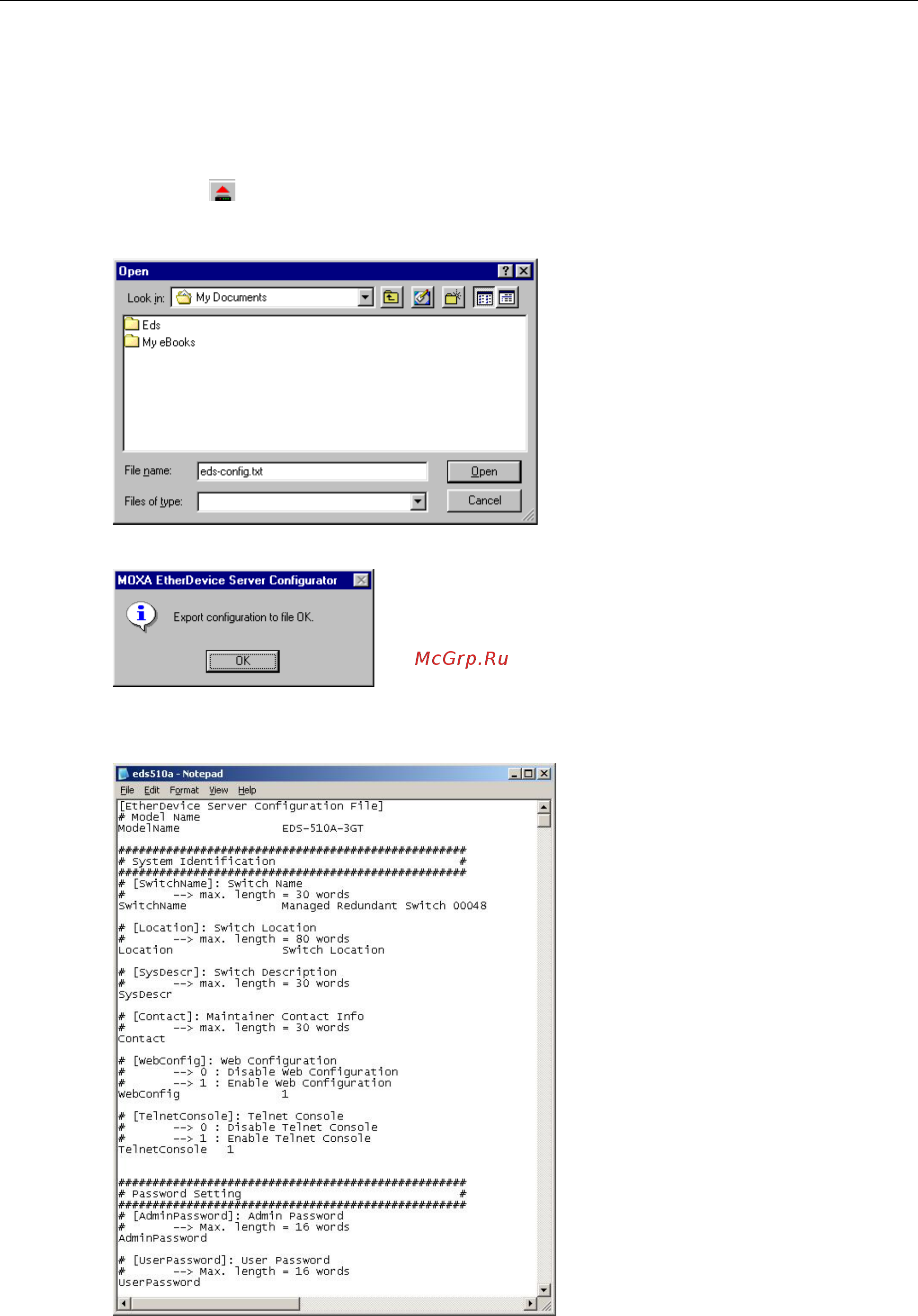

1. Highlight the switch (from the Server list in the Configurator window’s left pane), and then click the Export

toolbar icon or select Export Configuration from the Configuration menu. Use the Open window to

navigate to the folder in which you would like to store the configuration, and then type the name of the file

in the File name input box. Click Open to continue.

2. Click OK when the Export configuration to file OK message appears.

3. You may use a standard text editor, such as Notepad under Windows, to view and modify the newly created

configuration file.
