Moxa Managed Ethernet Switches Getting Started

2-4

7. Use the following keys on your keyboard to navigate the Moxa switch’s serial console:

Key Function

Up, down, right, left arrow keys,

Tab

Move the onscreen cursor

Enter Display and select options

Space

Toggle options

Esc Previous menu

Configuration by Telnet Console

Opening the Moxa switch’s Telnet or web console over a network requires that the PC host and Moxa switch are

on the same logical subnet. You may need to adjust your PC host’s IP address and subnet mask. By default, the

Moxa switch’s IP address is 192.168.127.253 and the Moxa switch’s subnet mask is 255.255.255.0 (referred to

as a Class B network). Your PC’s IP address must be set to 192.168.xxx.xxx if the subnet mask is 255.255.0.0,

or to 192.168.127.xxx if the subnet mask is 255.255.255.0.

NOTE

To connect to the Moxa switch’s Telnet or web console, your PC host and the Moxa switch must be on the

same

logical subnet.

NOTE

When connecting to the Moxa switch’s Telnet or web console, first connect one of the Moxa switch’s Ethernet

ports to your Ethernet LAN, or directly to your PC’s Ethernet port. You may use either a straight

through or

cross

-over Ethernet cable.

NOTE

The Moxa switch’s default IP address is 192.168.127.253.

After making sure that the Moxa switch is connected to the same LAN and logical subnet as your PC, open the

Moxa switch’s Telnet console as follows:

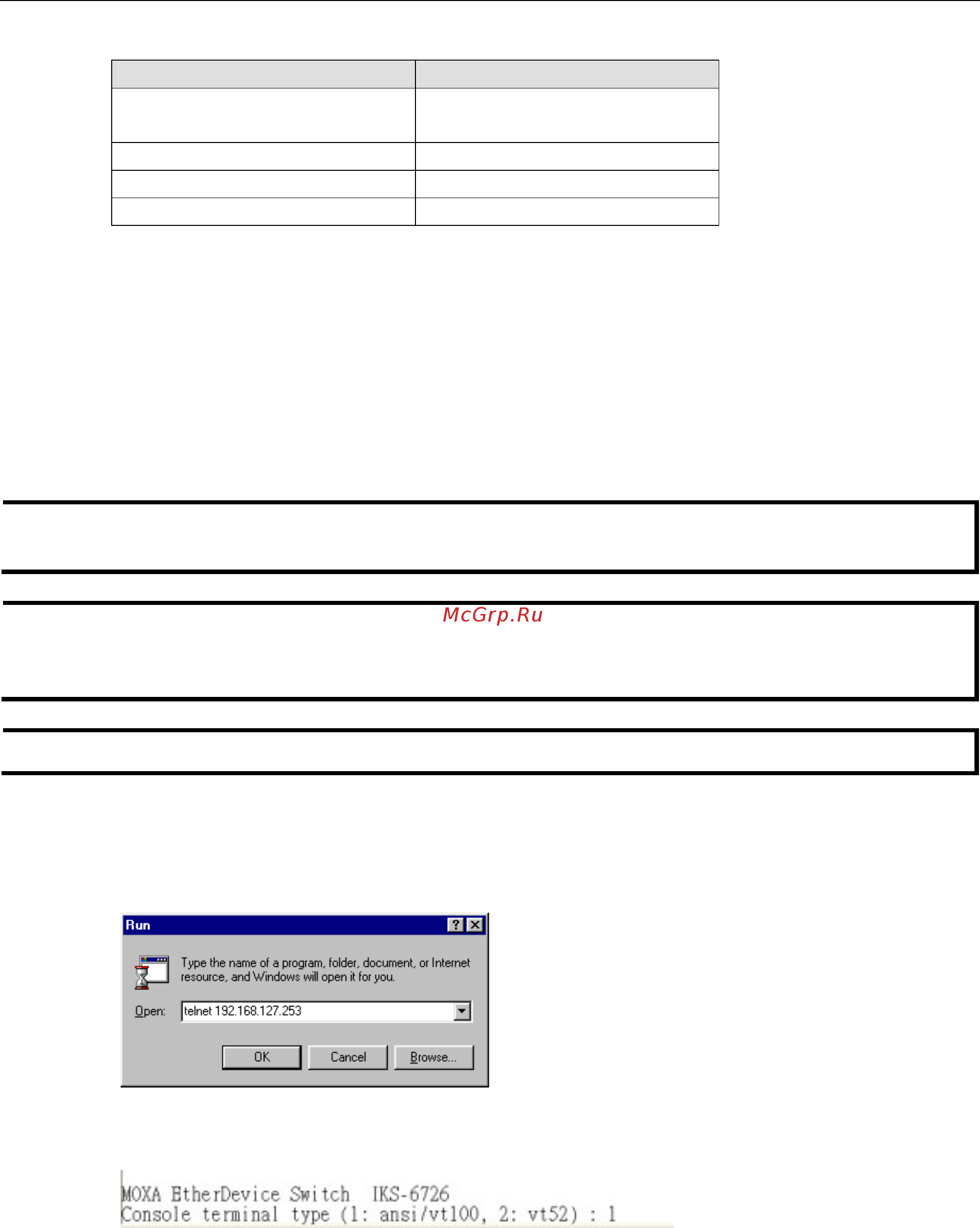

1. Click Start



Run from the Windows Start menu and then Telnet to the Moxa switch’s IP address from the

Windows Run window. You may also issue the Telnet command from a DOS prompt.

2. In the terminal window, the Telnet console will prompt you to select a terminal type. Type 1 to choose

ansi/vt100, and then press Enter.
