Moxa Managed Ethernet Switches Featured Functions

3-29

Sum of measured power

Setting Description

Measured power This item shows the total measured power of PDs

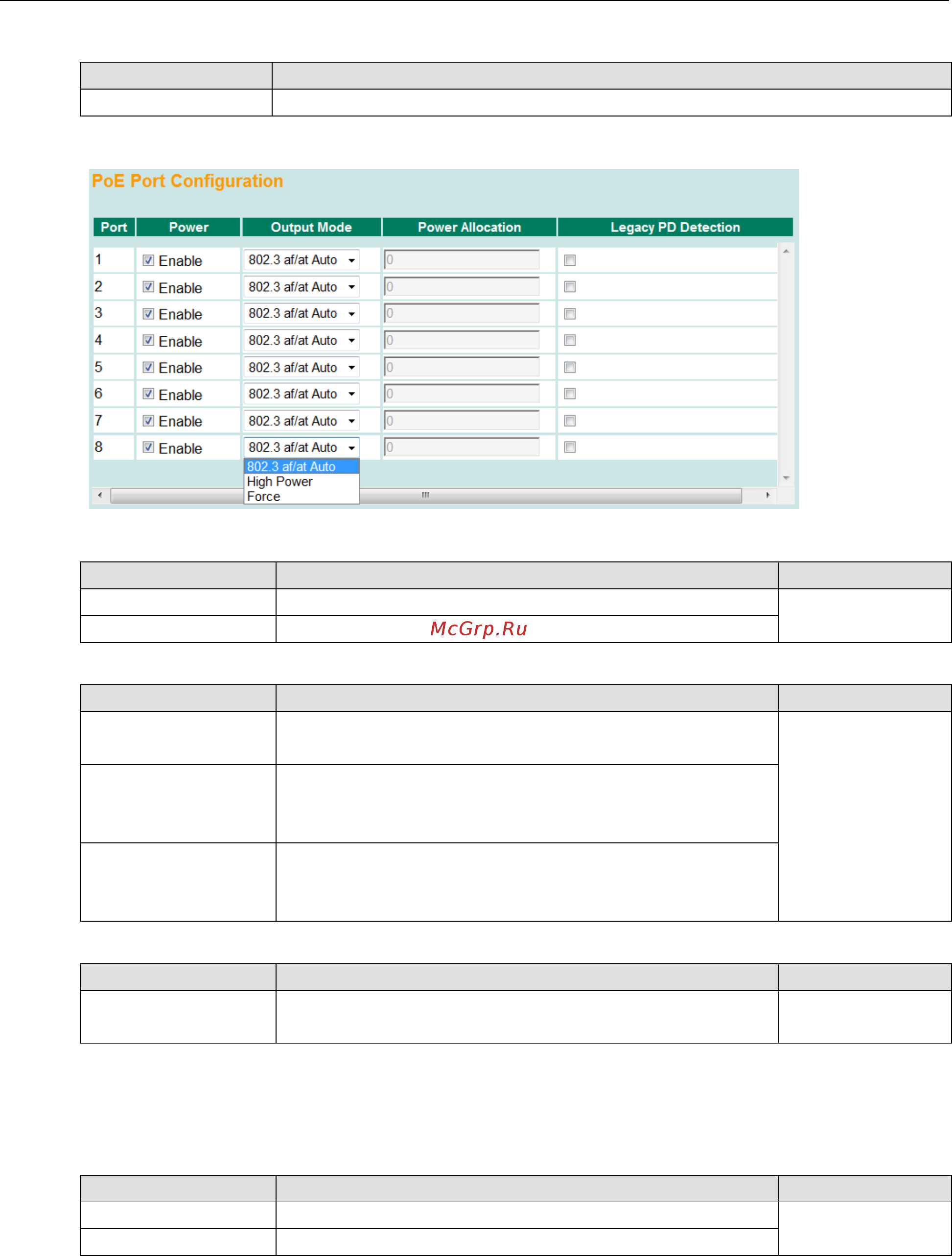

PoE Port Configuration

Power

Setting Description Factory Default

Checked Allows data and power transmission through the port Enable

Unchecked Immediately shuts off port access

Output Mode

Setting Description Factory Default

802.3 af/at Auto Power transmission on IEEE 802.3 af/at protocols.

The acceptable PD resistance range is 17 kΩ to 29 kΩ.

802.3 af/at Auto

High Power

High Power mode provides users a higher power output to PD.

The acceptable PD resistance range is 17 kΩ to 29 kΩ

, and the

power allocation of the port is automatically set to 36 W.

Force Force mode provides users to output power to a non 802.3 af/at

PD. The acceptable PD resistance range is over 2.4 kΩ

, and the

range of power allocation is 0 to 36 W.

Power Allocation

Setting Description Factory Default

0 to 36 In

the Force output mode, the power allocation can be set from

0 to 36 W.

Legacy PD Detection

The PoE Ethernet Switch provides the Legacy PD Detection function. When the capacitance of PD is higher

than 2.7μF, checking the Legacy PD Detection enables system to output power to PD. If you check the

Legacy PD Detection, it will take longer detection time from 10 to 15 seconds before PoE power output.

Setting

Description

Factory Default

Checked Enables the legacy PD detection Disable

Unchecked Disables the legacy PD detection
