Moxa EDS-405A-EIP-T [24/109] Configuring ptp

Moxa Managed Ethernet Switches Featured Functions

3-12

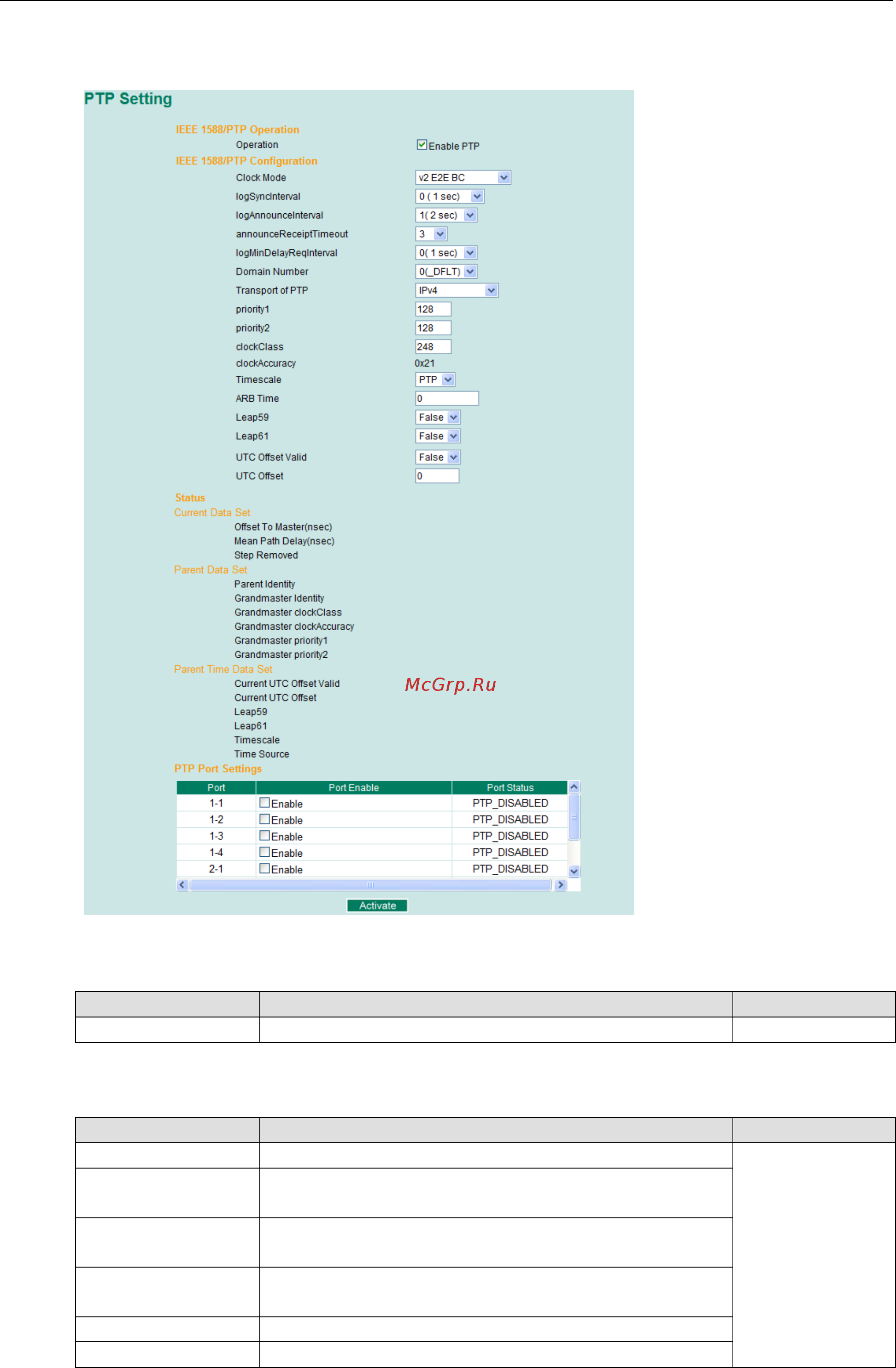

Configuring PTP

IEEE 1588/PTP Operation

Operation

Setting Description Factory Default

Enable PTP Globally disables or enables IEEE 1588 operation. Disabled

IEEE 1588/PTP Configuration

Clock Mode (sets the switch’s clock mode)

Setting Description Factory Default

v1 BC Operates as an IEEE 1588 v1 boundary clock. v1 BC

v2 E2E 2-step TC Operates as an edge-to-edge IEEE 1588 v2 transparent clock

with 2-step method.

v2 E2E 1-step TC Operates as an edge-to-edge IEEE 1588 v2 transparent clock

with 1-step method.

v2 P2P 2-step TC Operates as a peer-to-peer IEEE 1588 v2 transparent clock

with 2-step method.

v2 E2E BC Operates as an edge-to-edge IEEE 1588 v2 boundary clock

v2 P2P BC Operates as a peer-to-peer IEEE 1588 v2 boundary clock
