Please read and follow these guidelines:

• Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring sharing similar electrical characteristics can be bundled

together

• You should separate input wiring from output wiring

• We advise that you label the wiring to all devices in the system.

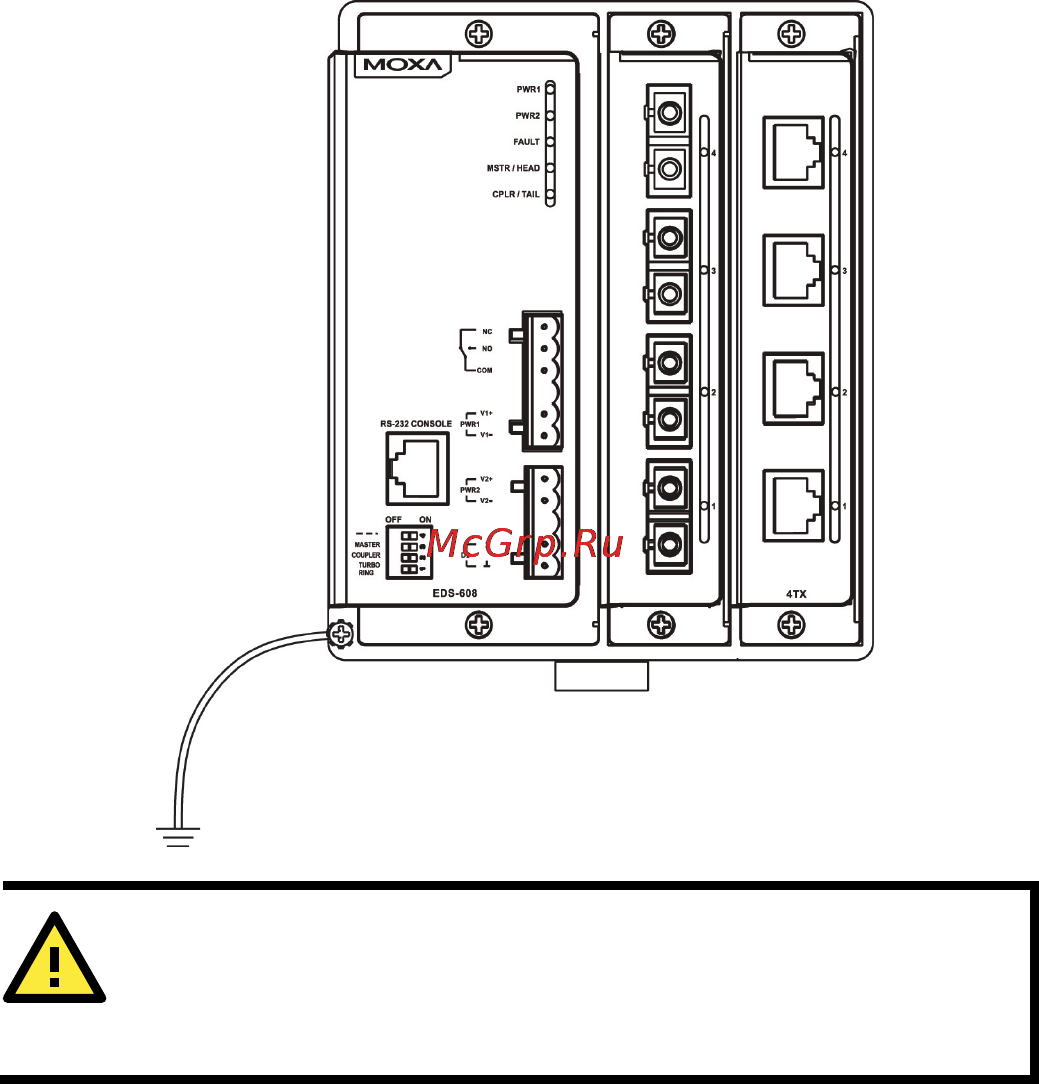

Grounding the Moxa EDS-600

EDS switches are designed to enhance EMS performance by grounding.

EDS switches come with metal DIN-Rail brackets for grounding the

switches. For optimal EMS performance, connect the chassis ground nut

on the switch to the grounding point.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.
