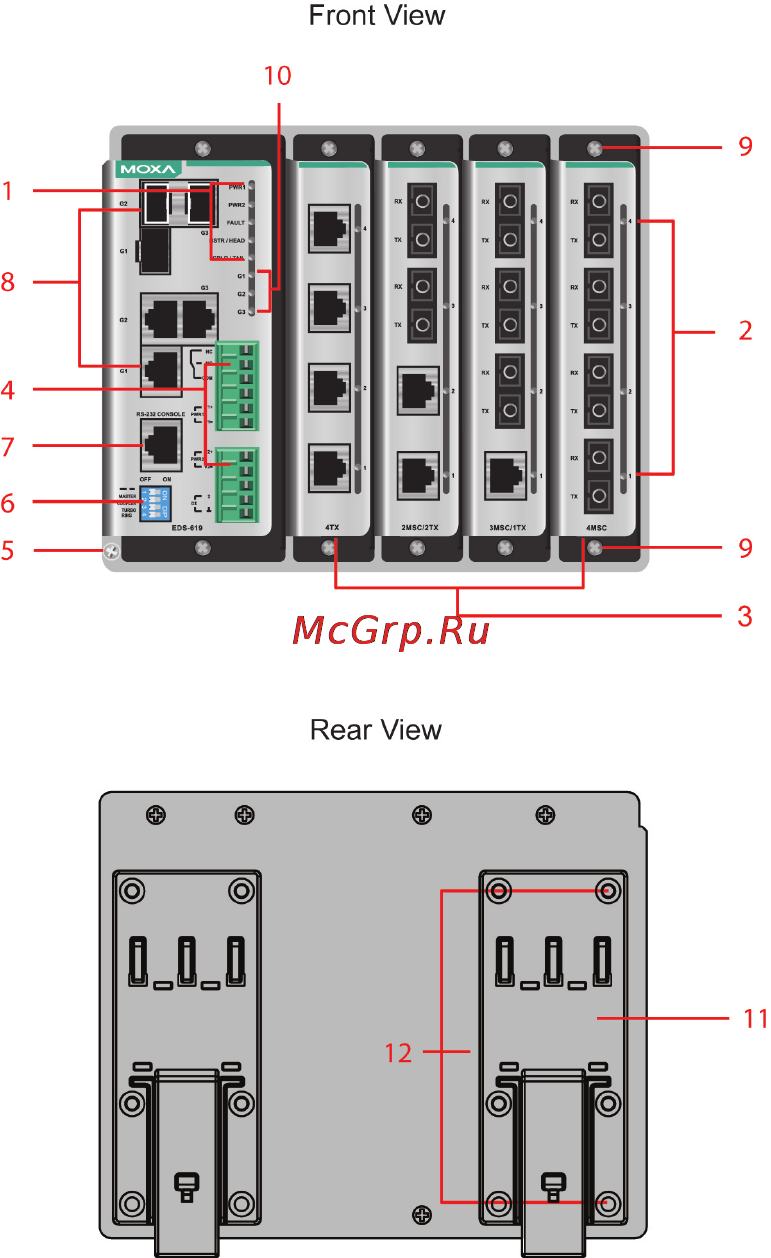

Panel Views of the EDS-619

Front Panel:

1. System Status LEDs

2. Fast Ethernet Interface Module port LEDs

3. Fast Ethernet Interface Module

4. Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output

5. Grounding screw

6. DIP switches for Ring Master, Ring Coupler, and Turbo Ring

7. RS-232 Console port

G1 to G3: 10/100/1000 BaseT(X) or 100/1000Base SFP slot combo

ports

9. Screw to attach Fast Ethernet Interface Module

10.

Gigabit Ethernet LEDs

Rear Panel:

11.

DIN-Rail Attachment Plate

12. Screw holes for wall mounting kit
