EDS-616/EDS-619

DIN-Rail Mounting

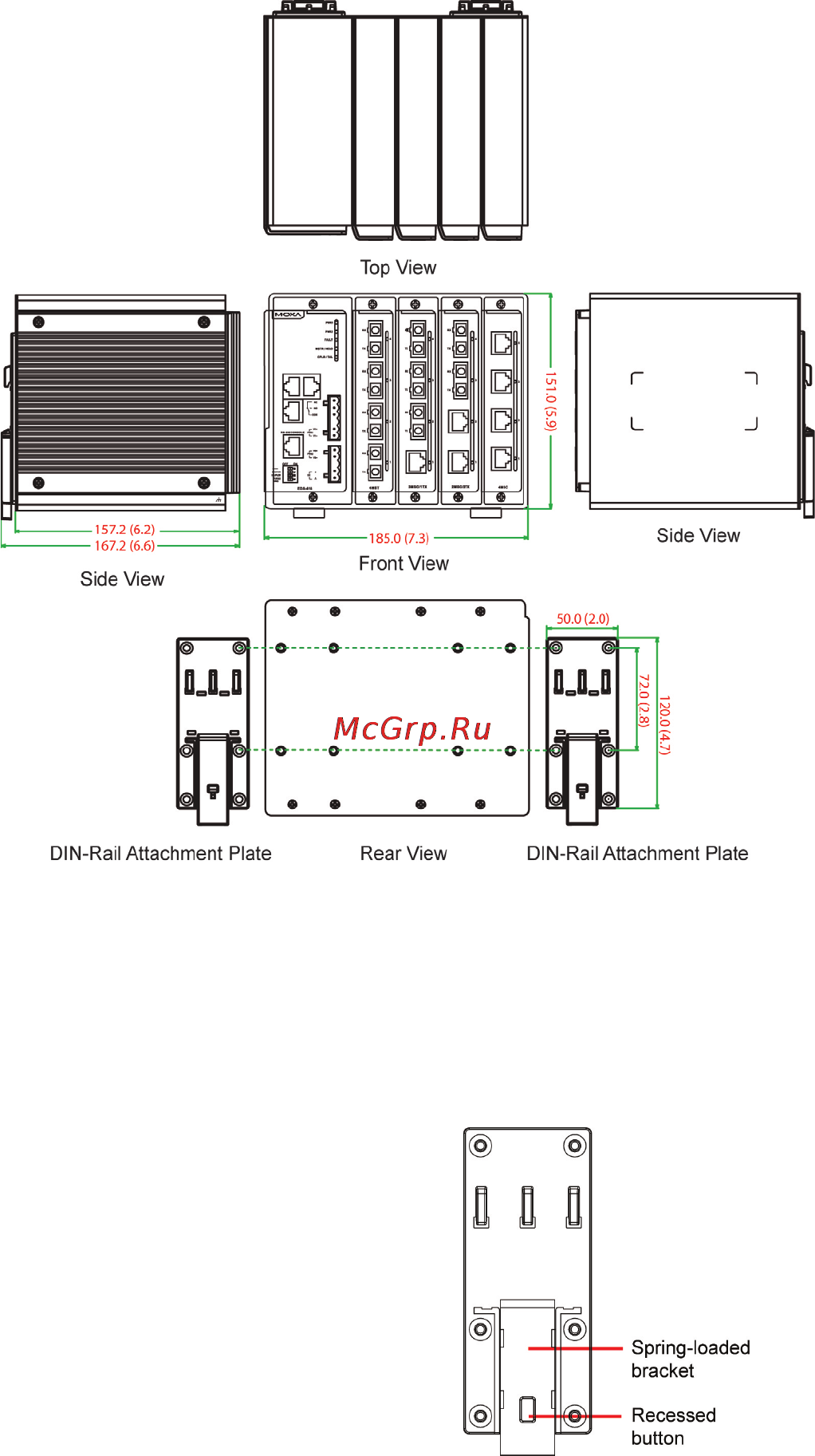

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of the EDS-600 when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate to the EDS-600, be sure the

spring-loaded bracket is situated towards the bottom, as shown in the

following figures.

STEP 1:

If the spring

-loaded bracket is

locked in place, p

ush the recessed

button to release it. Once released,

you

should feel some resistance

from the spring as you slide the

bracket up and down a few

millimeters in each direction.
