Moxa EDS-611 [9/19] Wall mounting optional

- 9 -

STEP 2:

Insert the top of the DIN

-Rail into

the

top slots on the DIN-Rail

attachment plate.

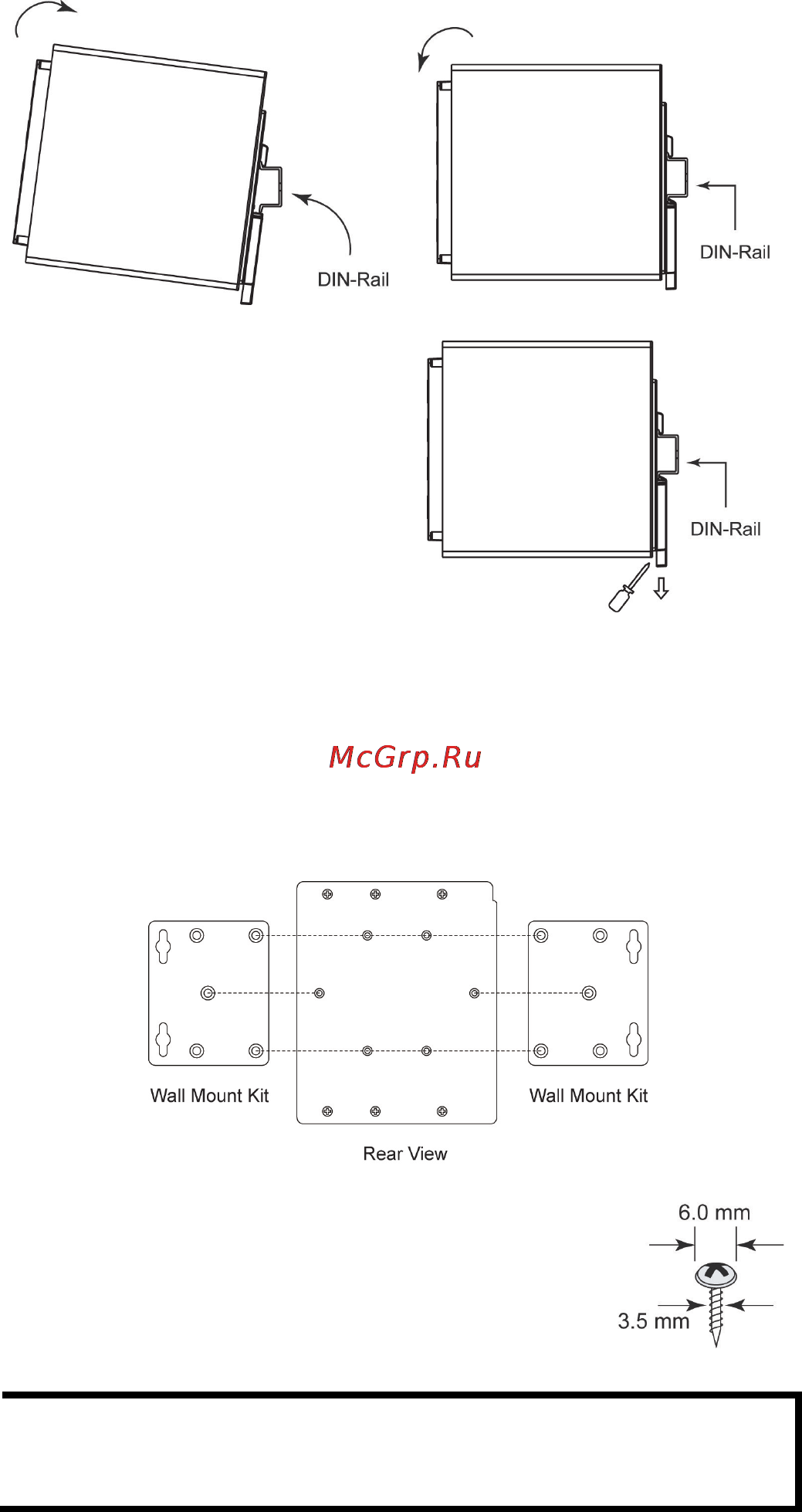

STEP 3:

The DIN

-Rail attachment unit will

snap into place as shown

in the

following illustration.

To remove the Moxa

EDS-600

switch

from the DIN

Rail, use a screwdriver

to push down the spring

-loaded

bracket until it locks in place, as

shown in the following diagram.

Next, rotate the bottom of the switch

upwards and then remove the

switch from the DIN

-Rail.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount the EDS-600

on the wall, as shown in the following illustrations:

STEP 1: Remove the aluminum DIN-Rail attachment plate from the rear

panel of the EDS-600, and then attach the wall mount plates with M3

screws, as shown in the figure at the right.

STEP 2: Mounting the EDS-600 on the wall requires 4

screws. Use the

EDS-600, with wall mount plates

attached, as a guide to mark the correct locations of the

4 screws. The heads of the screws should be less than

6.0 mm in diameter, and the shafts should be less than

3.5 mm in diameter, as shown in the figure at the right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.
