Moxa EDS-611 [15/19] Basefx or 1000basesfp fiber port

- 15 -

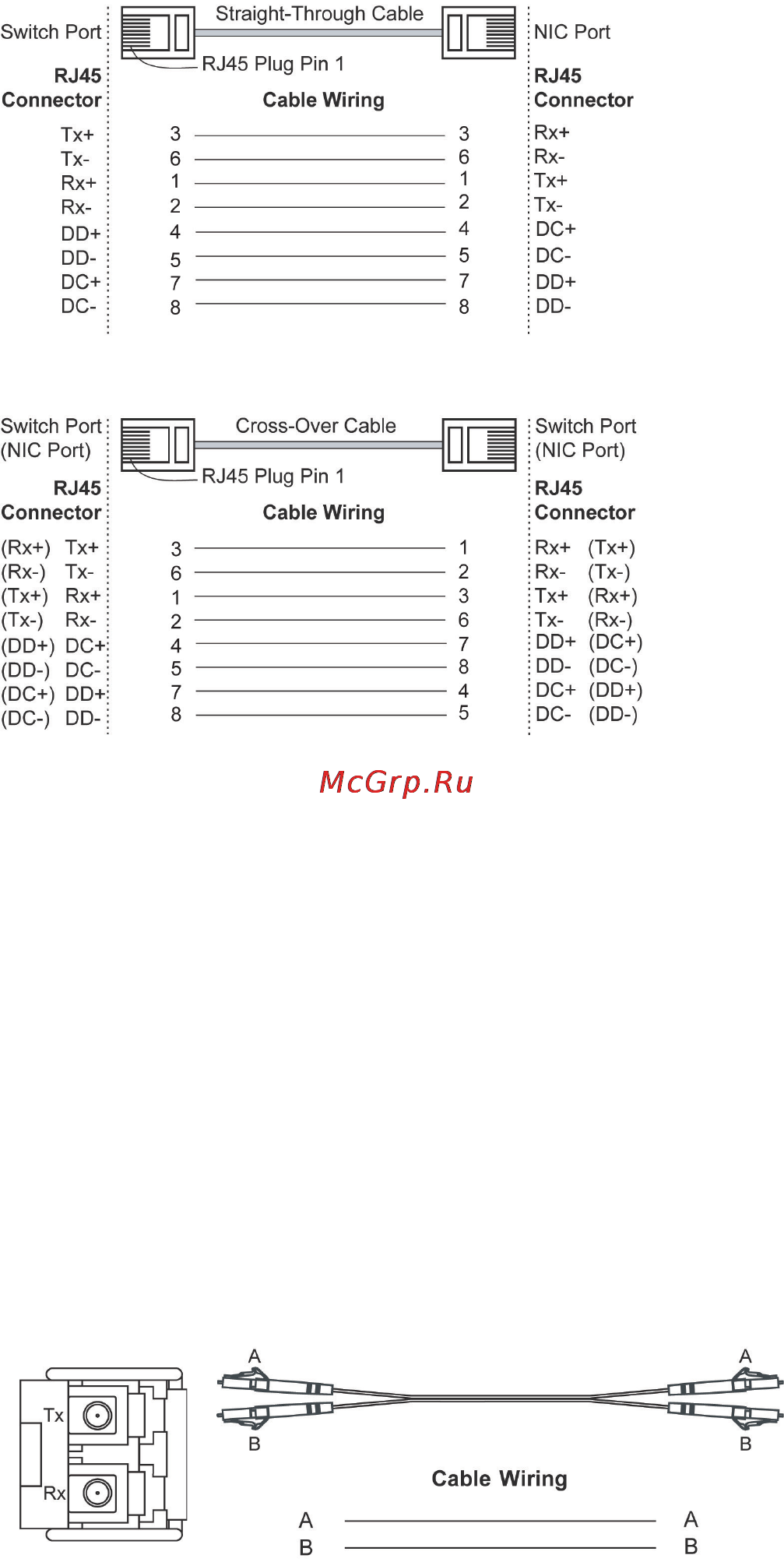

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

100BaseFX or 1000BaseSFP Fiber Port

The Gigabit Ethernet ports on the EDS-600 series are SFP slots, which

require 100BaseFX SFP or Gigabit mini-GBIC fiber transceivers to work

properly. Moxa provides complete transceiver models for various distance

requirements.

The concept behind the LC port and cable is quite straightforward.

Suppose you are connecting devices 1 and 2. Unlike electrical signals,

optical signals do not require a circuit in order to transmit data.

Consequently, one of the optical lines is used to transmit data from device

1 to device 2, and the other optical line is used to transmit data from

device 2 to device 1, for full-duplex transmission.

Remember to connect the Tx (transmit) port of device 1 to the Rx (receive)

port of device 2, and the Rx (receive) port of device 1 to the Tx (transmit)

port of device 2. If you make your own cable, we suggest labeling the two

sides of the same line with the same letter (A-to-A and B-to-B, as shown

below, or A1-to-A2 and B1-to-B2).

LC-Port Pinouts

LC-Port to LC-Port Cable Wiring
