Panel Views of the EDS-608

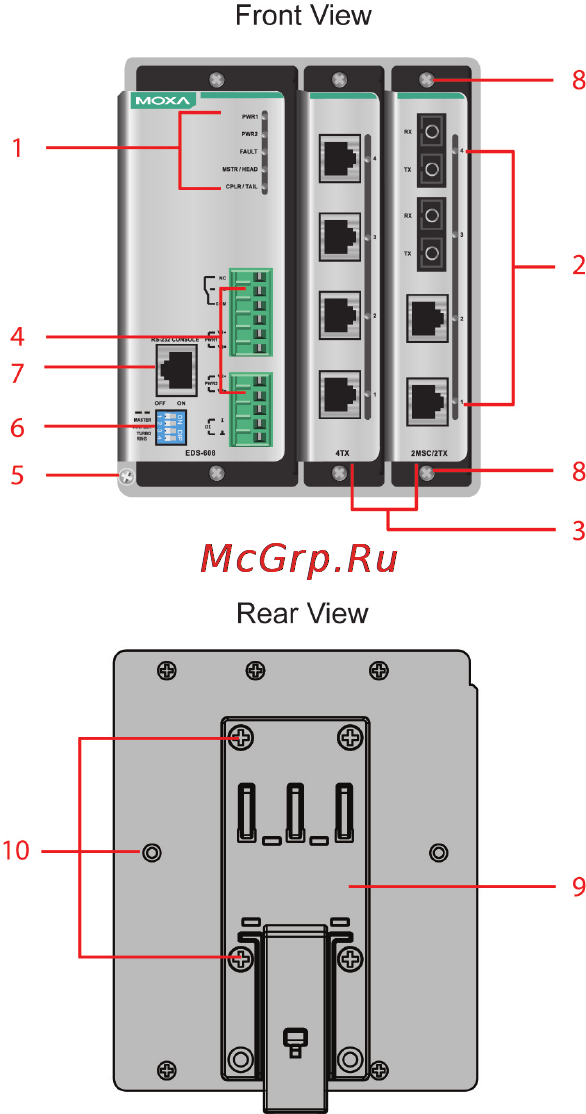

Front Panel:

1. System Status LEDs

2. Fast Ethernet Interface Module port LEDs

3. Fast Ethernet Interface Module

4. Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output

5. Grounding screw

6. DIP switches for Ring Master, Ring Coupler, and Turbo Ring

7. RS-232 Console port

8. Screw to attach Fast Ethernet Interface Module

9. DIN-Rail Attachment Plate

10. Screw holes for wall mounting kit
