Moxa TN-5516A-8PoE-WV-T [10/20] Din rail mounting optional

- 10 -

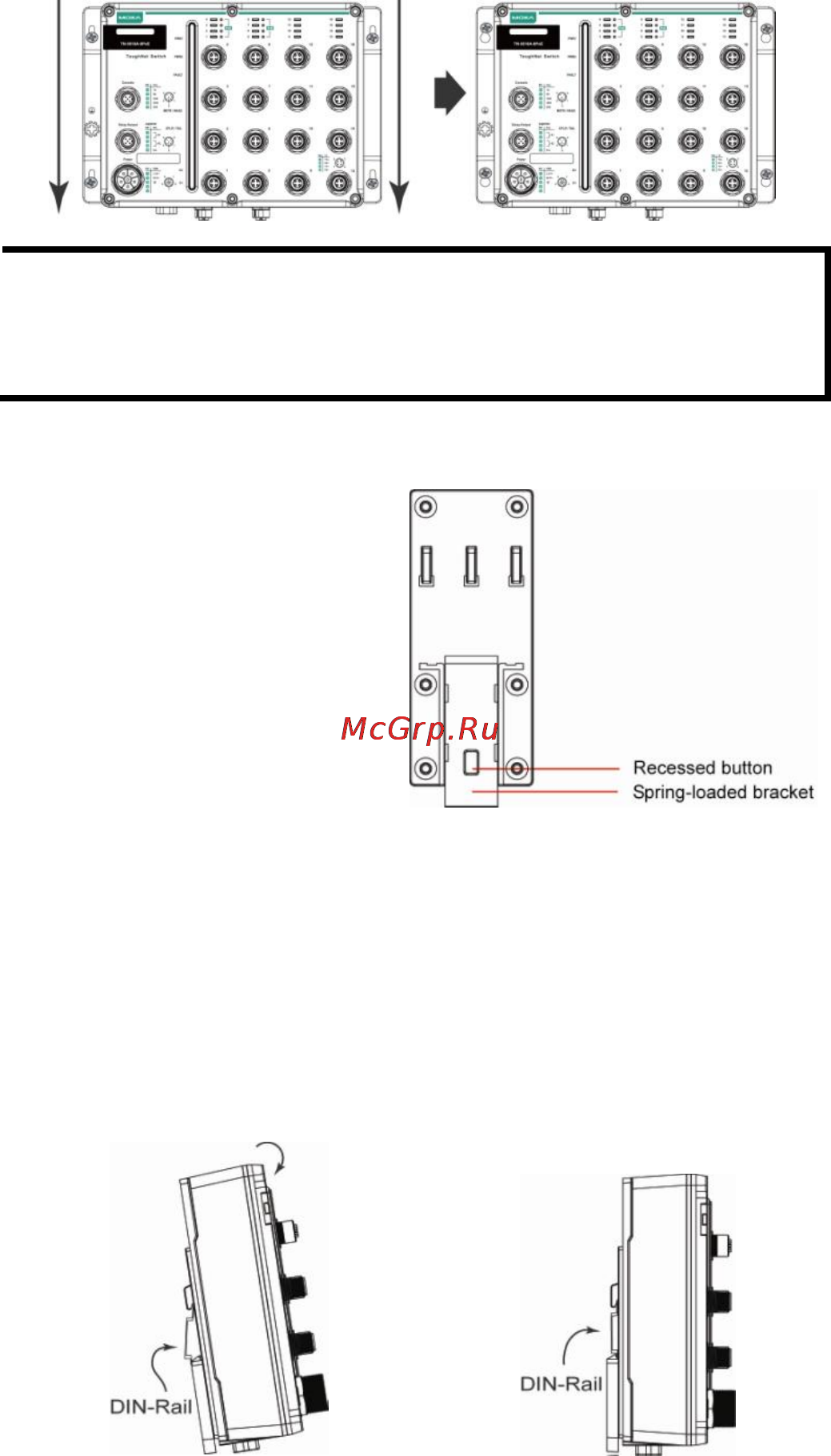

STEP 3:

Once the screws are fixed in the wall, hang the ToughNet switch on the 4

screws through the large opening of the keyhole-shaped apertures, and

then slide the switch downwards. Tighten the four screws for added

stability.

NOTE

To provide greater protection from vibration and shock, use

screws with shaft diameter between 6.0 mm and 7.0 mm, and fix

the ToughNet switch onto the wall directly through the large

opening of the keyhole-shaped apertures.

DIN Rail Mounting (optional)

You can use the optional DIN rail

mounting kit DK-DC50131 (must

be purchased separately) to mount

the TN-5516A/5518A on a 35 mm

DIN rail.

STEP 1:

Use 12 screws (6 screws per plate)

to attach the two DIN rail

attachment plates to the rear panel

of the switch.

STEP 2:

If the spring-loaded bracket is locked in place, push the recessed button

to release it. Once released, you should feel some resistance from the

spring as you slide the bracket up and down a few millimeters in each

direction.

STEP 3:

Position the ToughNet switch on the

DIN rail, tilting to hook clamps over

the top edge of the rail.

STEP 4:

Swing the switch down fully onto

the DIN rail until both clamps

completely latch.
