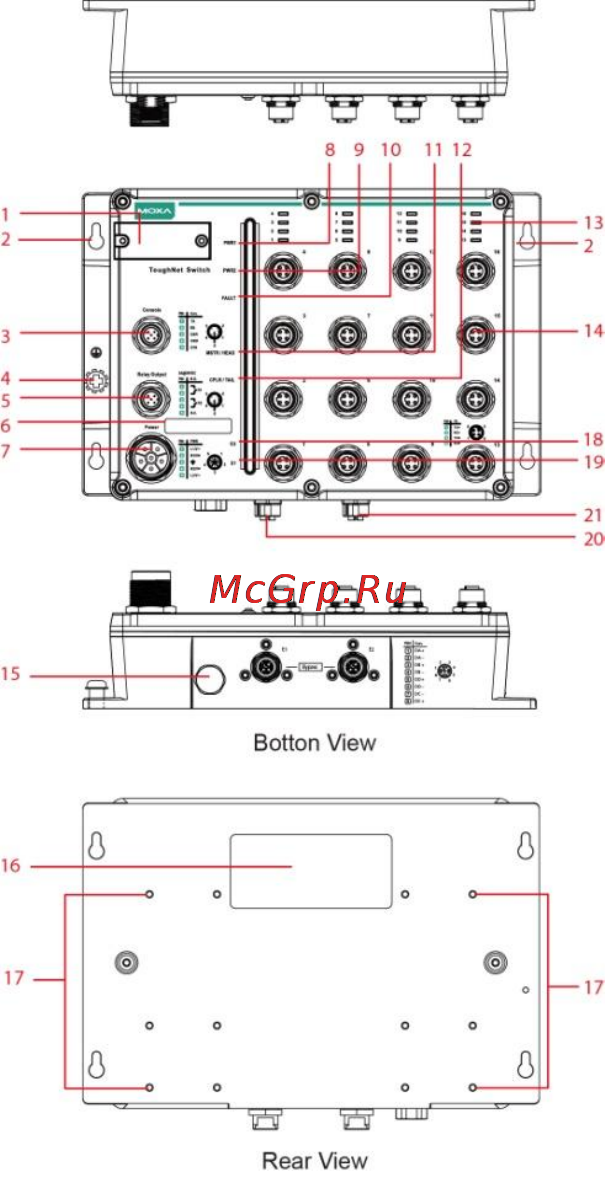

TN-5516A/5518A Panel Layouts

1. Model name

2. Screw holes for

panel mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage

range indicator

7. Power input port

(male 5-pin shielded

M23 connector)

8. PWR1 LED: for

power input 1

9. PWR2 LED: for

power input 2

10. FAULT LED

11. MSTR/HEAD LED: for

ring master or chain

head

12. CPLR/TAIL LED: for

ring coupler or chain

tail

13. TP port’s 10/100

Mbps LED

14. 10/100BaseT(X)

port (M12 D-coded

4-pin female

connector)

15. Waterproof vent

16. Product label

17. 12 screw holes for

DIN rail mounting kit

18. E2 LED: Not used by the TN-5516A series

19. E1 LED: Not used by the TN-5516A series

20. Gigabit Ethernet port E1 (corresponds to port 17 in the TN-5518A

User’s Manual)

21. Gigabit Ethernet port E2 (corresponds to port 18 in the TN-5518A

User’s Manual)
