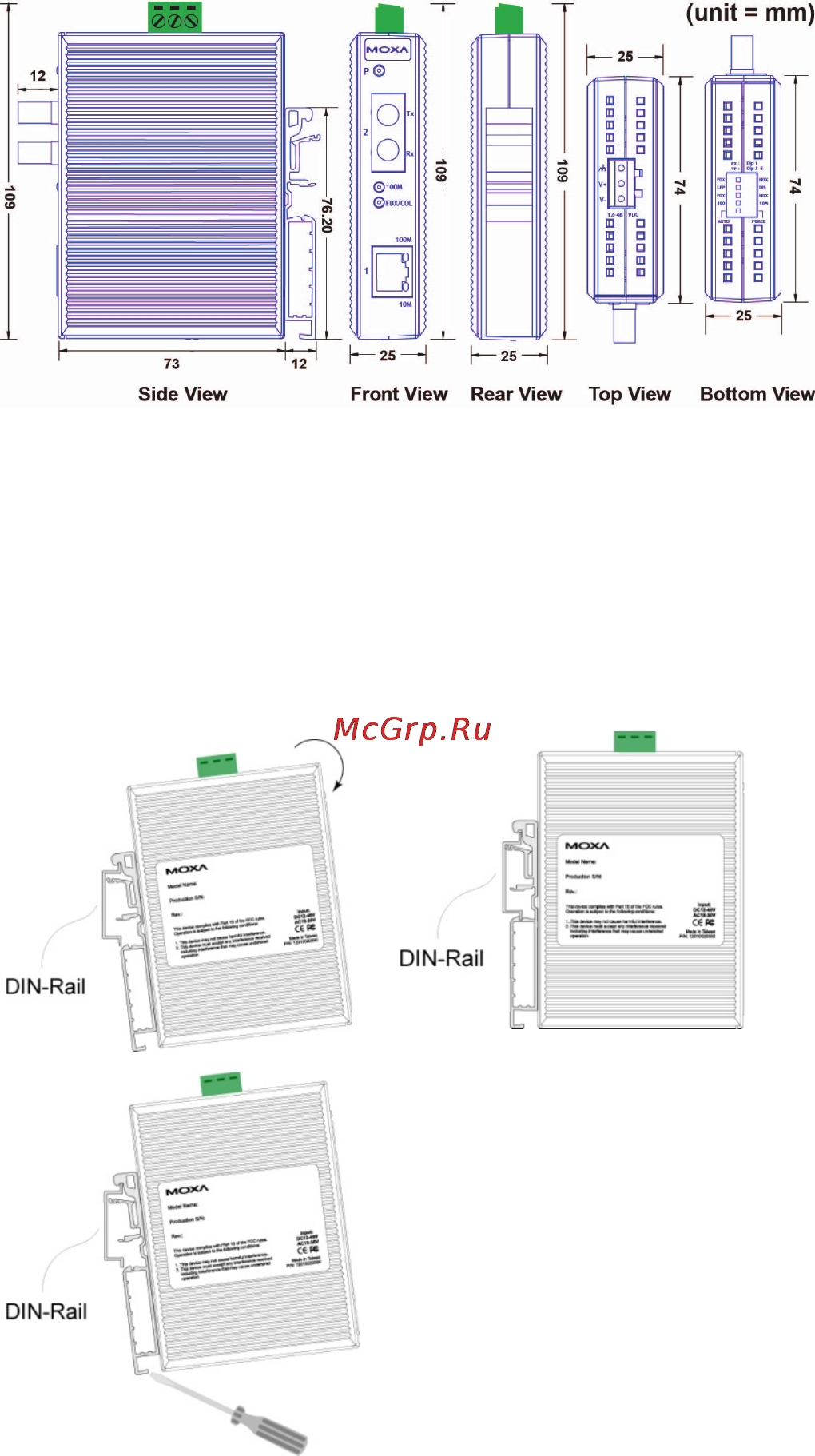

Mounting Dimensions

IMC-21 series (10/100BaseT(X) to 100BaseFX)

DIN-Rail Mounting

The plastic DIN-Rail attachment plate should already be fixed to the rear

panel of IMC when you take it out of the box. If you need to reattach the

DIN-Rail attachment plate to IMC, make sure the DIN-Rail kit is situated

towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN

-Rail into

the slot.

STEP 2:

The DIN

-Rail attachment unit will

snap into place as shown below.

To remove Moxa IMC-21 from the

DIN

-Rail, insert a flat-blade screw

driver horizontally into the DIN

-Rail

kit under the IMC

21, and then pull it

upwards and release IMC towards you

away from the DIN

-Rail.
