- 8 -

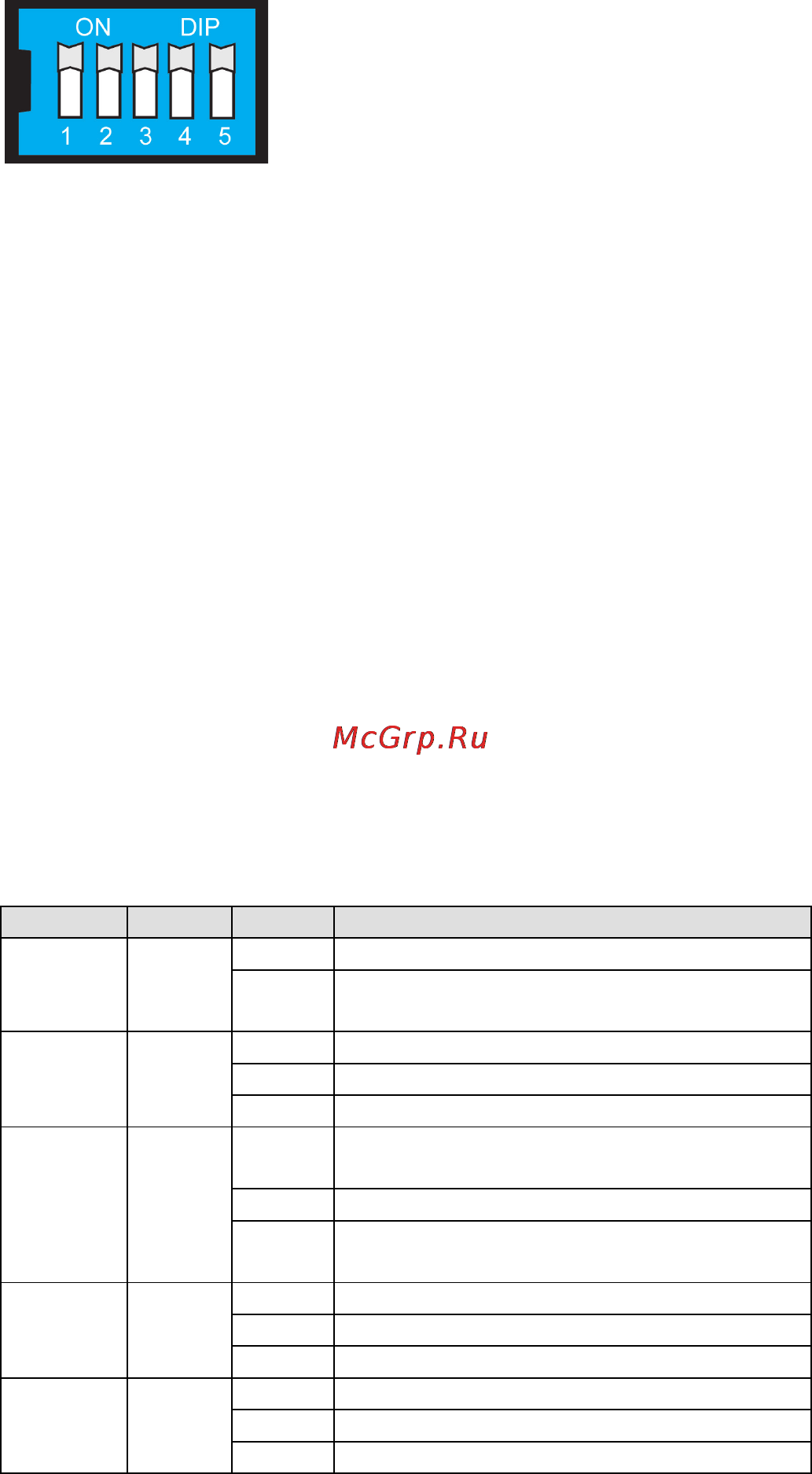

DIP Switch Settings
IMC-21 Series (10/100BaseT(X) to 100BaseFX)
DIP Switch 1 (Default OFF: FDX)
FDX: Fiber port in full duplex mode
HDX: Fiber port in half duplex mode
DIP Switch 2 (Default OFF: LFP)
LFP: Enables LFP (Link Fault Pass-Through) for 100BaseFX
LFP DIS: Disables LFP for 100BaseFX
DIP Switch 3 (Default OFF: FDX)
FDX: TP port at full duplex mode
HDX: TP port at half duplex mode
DIP Switch 4 (Default OFF: 100)
100: TP port at 100 Mbps
10: TP port at 10 Mbps
DIP Switch 5 (Default OFF: AUTO)
AUTO: TP port in AUTO (auto-negotiation) mode
FORCE: Force TP port into 10M or half duplex mode
After changing the DIP switch setting, you will need to power off and then
power on the IMC-21 to activate the new setting.
LED Indicators
The front panel of Moxa Industrial Media Converter contains several LED
indicators. The function of each LED is described in the table below.
IMC-21 series (10/100BaseT(x) to 100BaseFX)
LED
Color
State
Description
P
AMBER
On
Power is being supplied to the power input.
Off
Power is not being supplied to the power
input.
100M
(FX)
GREEN
On
FX port’s 100 Mbps link is active.
Blinking
Data is being transmitted at 100 Mbps.
Off
FX Port’s 100 Mbps link is inactive.
FDX/COL
(FX)
GREEN
On
100BaseFX port is transmitting in full
duplex mode.
Blinking
A data collision has occurred.
Off
100BaseFX port is transmitting in half
duplex mode.
100M
(TP)
GREEN
On
TP port’s 100 Mbps link is active.
Blinking
Data is being transmitted at 100 Mbps.
Off
TP port’s 100 Mbps link is inactive.
10M
(TP)
GREEN
On
TP port’s 10 Mbps link is active.
Blinking
Data is being transmitted at 10 Mbps.
Off
TP port’s 10 Mbps link is inactive.
