- 6 -

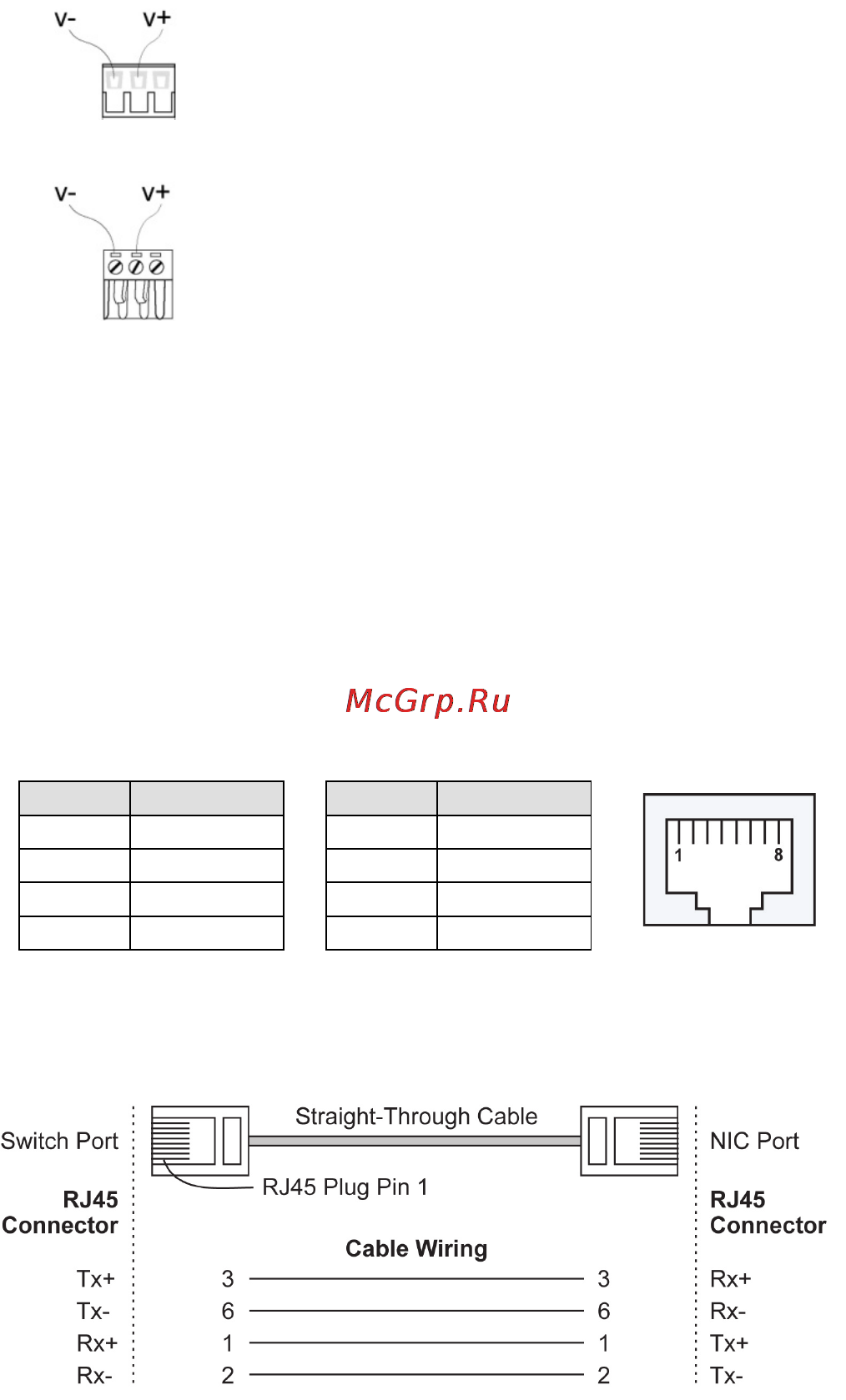

Wiring the Power Inputs
The two left-most contacts of the 3-contact terminal block connector on
IMC’s top panel are used for IMC’s DC or AC inputs. Top and front views of
one of the terminal block connectors are shown here.
Top View
Front View
STEP 1:
Insert the negative/positive DC wires
into the V
-/V+ terminals.
STEP 2:
To keep the DC wires from pulling loose,
use a small flat
-
blade screwdriver to tighten the
wire
-clamp screws on the front of the terminal
block connector.
STEP 3:
Insert the plastic terminal block
connector prongs into the terminal block
receptor, which
is located on IMC’s top panel.
Communication Connections
IMC-21 has one 10/100BaseT(X) Ethernet port.
RJ45 Ethernet Port Connection
The 10/100BaseT(X) port located on IMC’s front panel are used to
connect to Ethernet-enabled devices.
Below we show pinouts for both MDI (NIC-type) and MDI-X
(HUB/Switch-type) ports, and also show cable wiring diagrams for
straight-through and cross-over Ethernet cables.
MDI Port Pinouts
MDI-X Port Pinouts
8-pin RJ45
Pin
Signal
1
Tx+
2
Tx-
3
Rx+
6
Rx-
Pin
1
2
3
6
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable
Wiring
