- 10 -

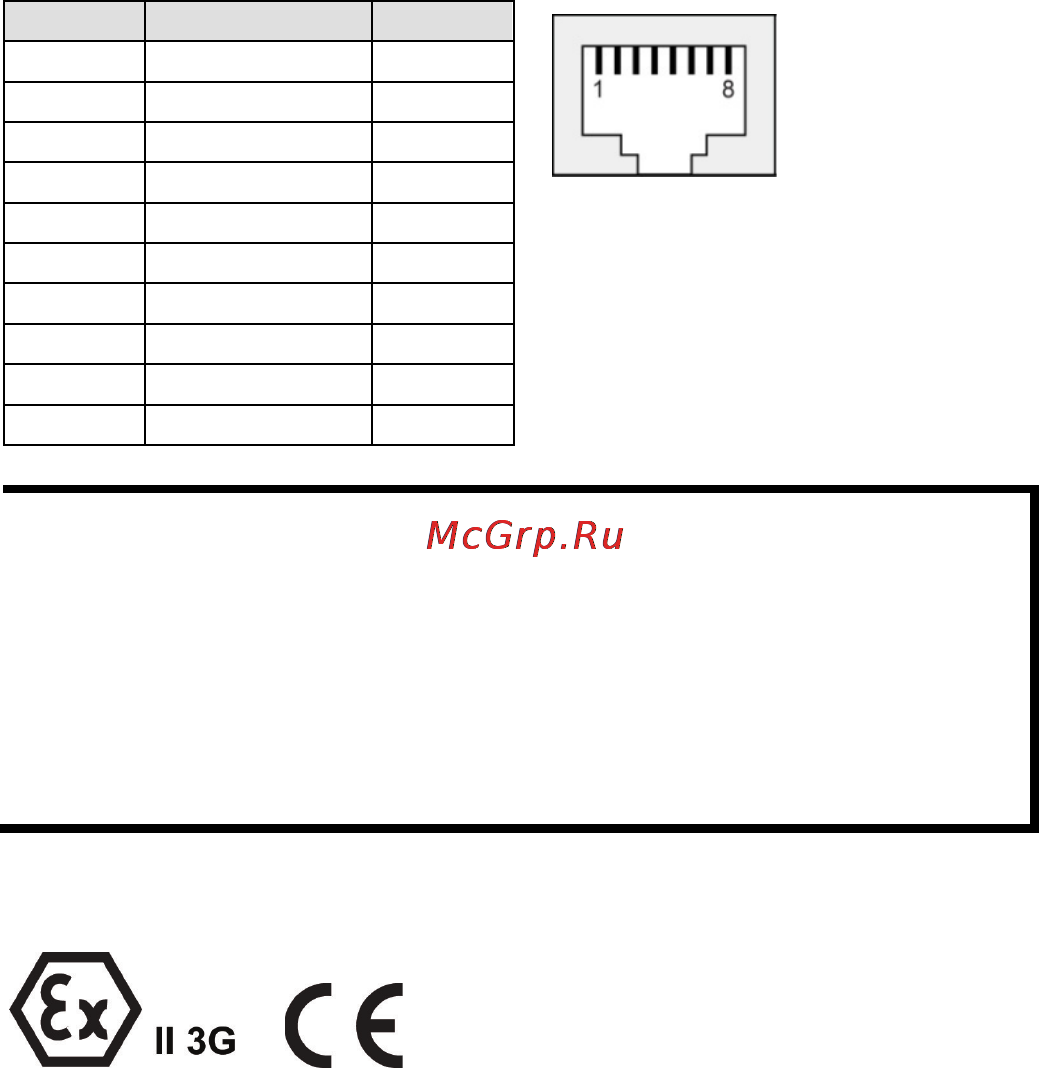

Console Pinouts for 10-pin or 8-pin RJ45

10-Pin

Description

8-Pin

–

DSR

RTS

GND

TxD

RxD

DCD

CTS

DTR

–

NOTE

1. The pin numbers for the DB9 and DB25 male connectors,

and hole numbers for the DB9 and DB25 female

connectors

are labeled on the connector strip. However, the numbers

are typically quite small, so you may need to use a

magnifying glass to see the numbers clearly.

2. The pin numbers for both 8-pin and 10-

pin RJ45 connectors

(and ports) are typically not labeled on the connectors

(or

ports). Refer to the pinout diagram above for details.

ATEX Information

1. DEMKO certification number: 10 ATEX 0902666X

2. Ambient range (-40°C ≤ Tamb ≤ 75°C)

3. Certification string: Ex nA nL IIC T4

4. Standards covered ( EN60079-0:2006, EN60079-15:2005)

5. The conditions of safe usage:

a. The Ethernet Communication Devices are intended for mounting

in an IP54 enclosure and used in an area of not more than

pollution degree 2 as defined by IEC60664-1.

b. Conductors suitable for use in an ambient temperature greater

than 93°C must be used for the Power Supply Terminal.

c. A 4 mm2 conductor must be used when connection to the

external grounding screw is utilized.

d. Cables must be suitable for use in an ambient temperature

greater than 93°C.
