- 5 -

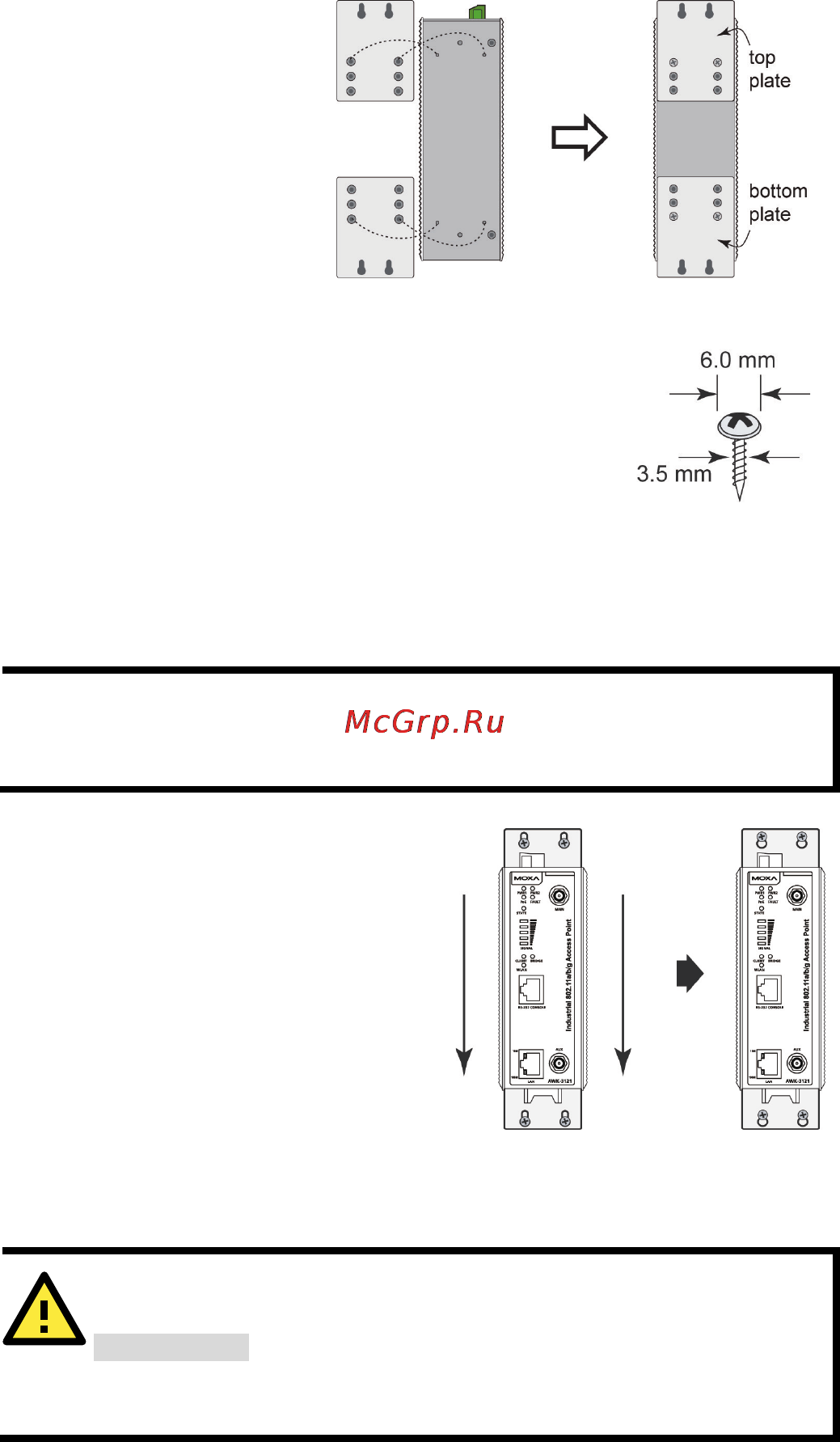

Wall Mounting (optional)
For some applications, it may be more convenient to mount the
AWK-3121 to a wall, as illustrated below.
STEP 1:
Remove the aluminum
DIN
-rail attachment plate
from the AWK
-3121, and
then attach the wall mount
plates with M3 screws, as
shown in the adjacent
diagrams.
STEP 2:
Mounting the AWK
-3121 to a wall requires 4 screws.
Use the AWK
-3121 device, with wall mount plates
attached, as a guide to mark the correct locations of
the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the
shafts should be
less
than 3.5 mm in diameter, as shown in the figure at the
right.
Do not drive the screws in all the way into the wall—leave a space of about
2 mm to allow room for sliding the wall mount panel between the wall and
the screws.
NOTE
Test the screw head and shank size of the screws by inserting the
screws
into one of the keyhole shaped apertures of the
wall-mounting plate before attaching the plate to the wall.
STEP 3:
Once the screws are fixed into the
wall, insert the four screw heads
through the
large opening of the
keyhole
-
shaped apertures, and then
slide the AWK
-
3121 downwards, as
indicated to the right. Tighten the
four screws for added stability.
Wiring Requirements
WARNING
Safety First!
Be sure to
disconnect the power cord before installing and/or
wiring your Moxa AWK-3121.
