- 4 -

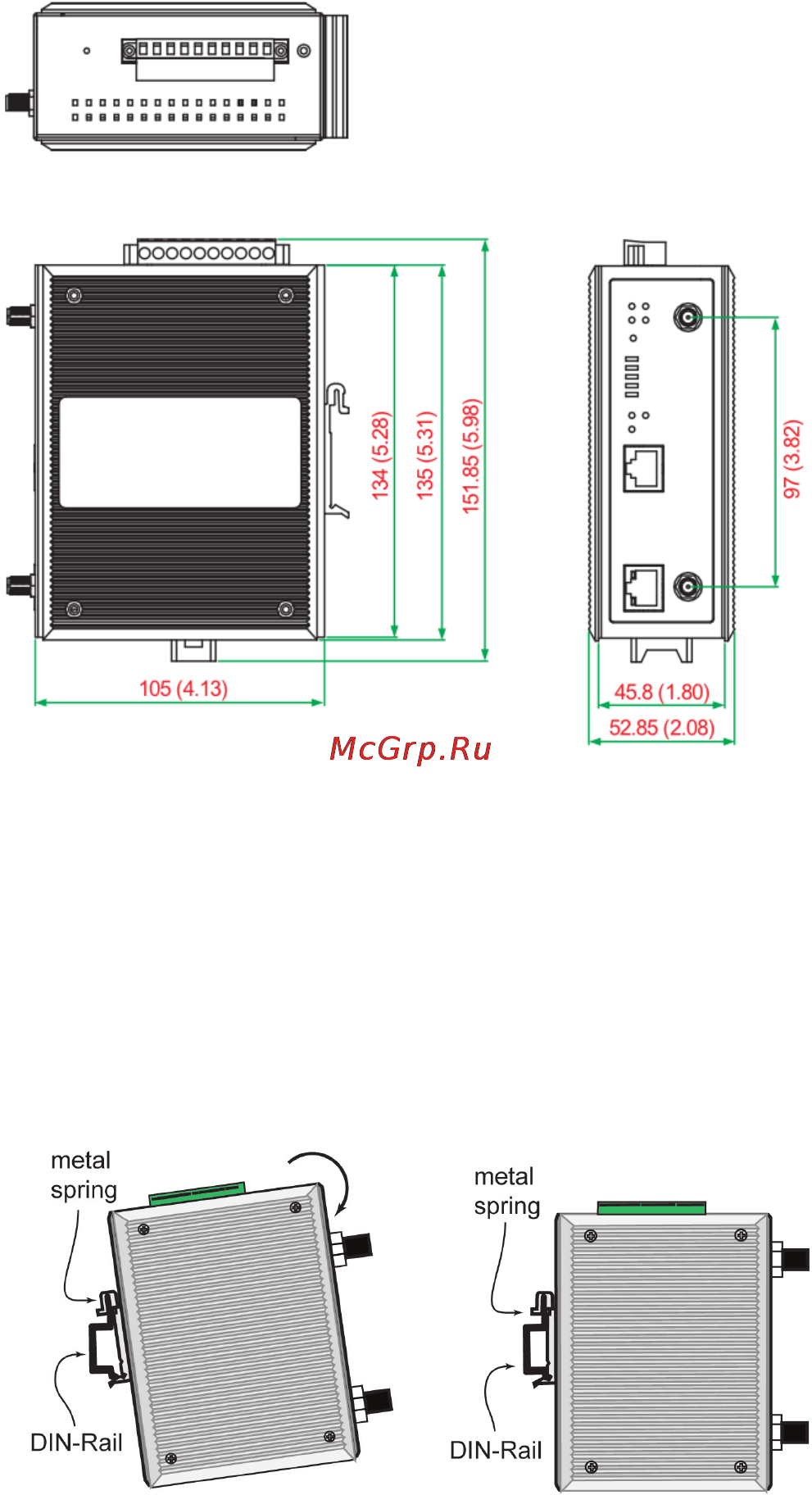

Mounting Dimensions
Unit = mm (inch)
DIN-Rail Mounting
The aluminum DIN-rail attachment plate should be fixed to the back panel
of the AWK-3121 when you take it out of the box. If you need to reattach
the DIN-rail attachment plate to the AWK-3121, make sure the stiff metal
spring is situated towards the top, as shown in the figures below.
STEP 1:
Insert the top of the DIN
rail into
the slot just
below the stiff metal
spring.
STEP 2:
The DIN
-rail attachment unit will
snap into place as shown below.
To remove the AWK-3121 from the DIN rail, simply reverse Steps 1 and 2.
