DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should be fixed to the back
panel of the AWK-5222 when you take it out of the box. If you need to
reattach the DIN-Rail attachment plate to the AWK-5222, make sure the
stiff metal spring is situated towards the top, as shown in the figures
below.

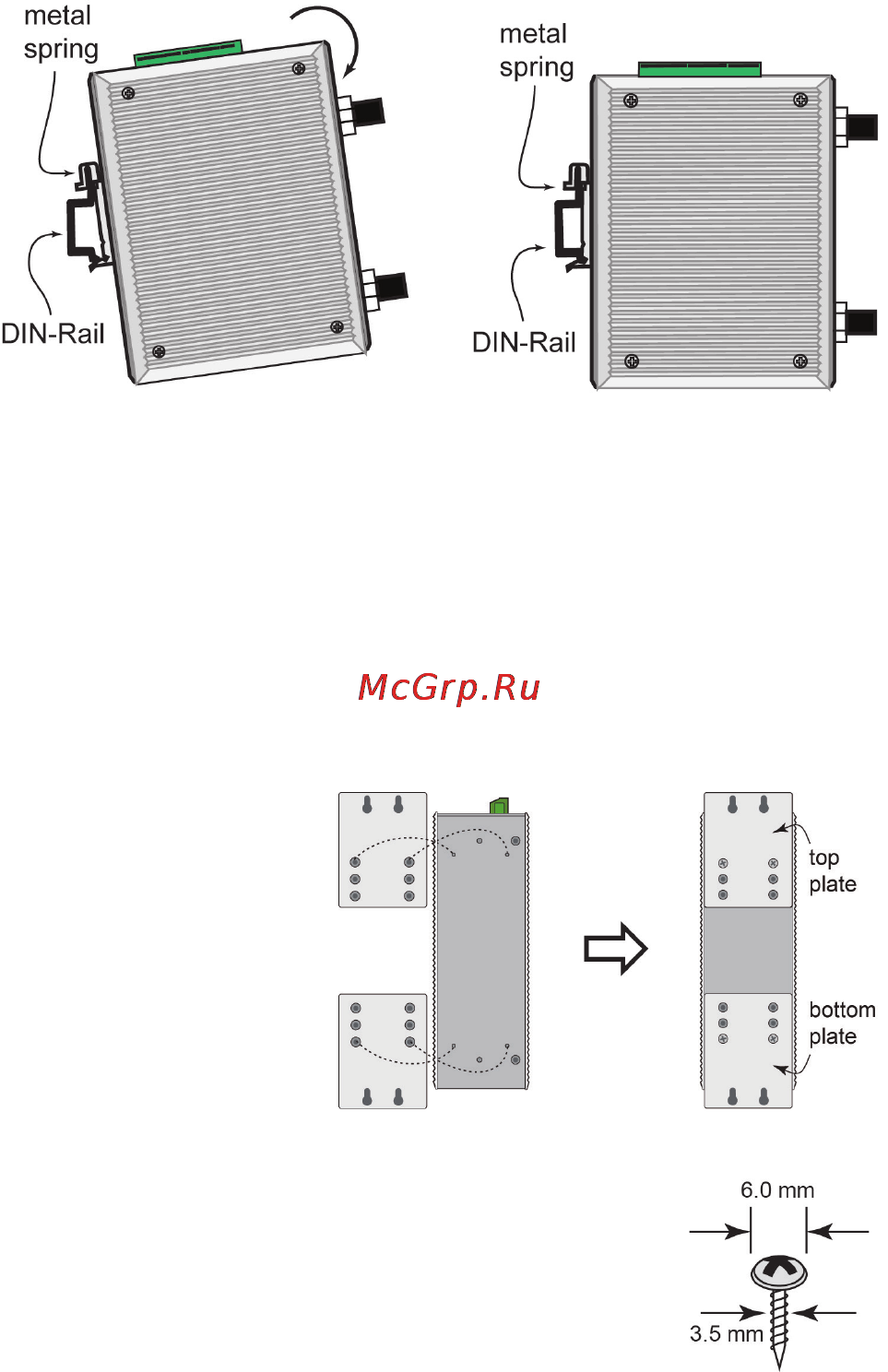

STEP 1:
Insert the top of the DIN
-Rail into
the slot just
below the stiff metal
spring.
STEP 2:
The DIN
-Rail attachment unit will
snap into place as shown below.
To remove the AWK-5222 from the DIN-Rail, simply reverse Steps 1 and
2.
Wall Mounting (optional)
For transportation applications that require an EN50155 certification
report, you should purchase the optional wall mount for the AWK-5222,
since the wall mount has passed EN50155 testing. The wall mount is also
convenient for other applications that require mounting the AWK-5222 to
a wall.
STEP 1:
Remove the aluminum
DIN
-Rail attachment plate
from the AWK
-5222, and
then attach the wall mount
plates with
M3 screws, as
shown in the adjacent
diagrams.
STEP 2:
Mounting the AWK
-5222 to a wall requires 4 screws.
Use the AWK
-5222 device, with wall mount plates
attached, as a guide to mark the correct locations of
the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the
shafts should be
less than 3.5 mm in diameter, as shown in the figure
at the right.
Do not screw the screws in all the way—leave a space of about 2 mm to
allow room for sliding the wall mount panel between the wall and the
screws.
