- 7 -
ATTENTION
This product is intended to be supplied by a Listed Power Unit
marked
“Class 2” or “LPS” and rated O/P: 12 to 48 VDC,
max 800
mW, 25°C.
ATTENTION
Make sure
the external power adapto
r (includes power cords and
plug assemblies) provided with the unit is certified and suitable
for use in your country.
Grounding the Moxa AWK-5222
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting devices.
ATTENTION
This product is intended to
be mounted to a well-grounded
mounting surface, such as a metal panel.
Wiring the Redundant Power Inputs
The top two pairs of contacts of the 10-contact terminal block connector
on the AWK-5222’s top panel are used for the AWK-5222’s two DC inputs.

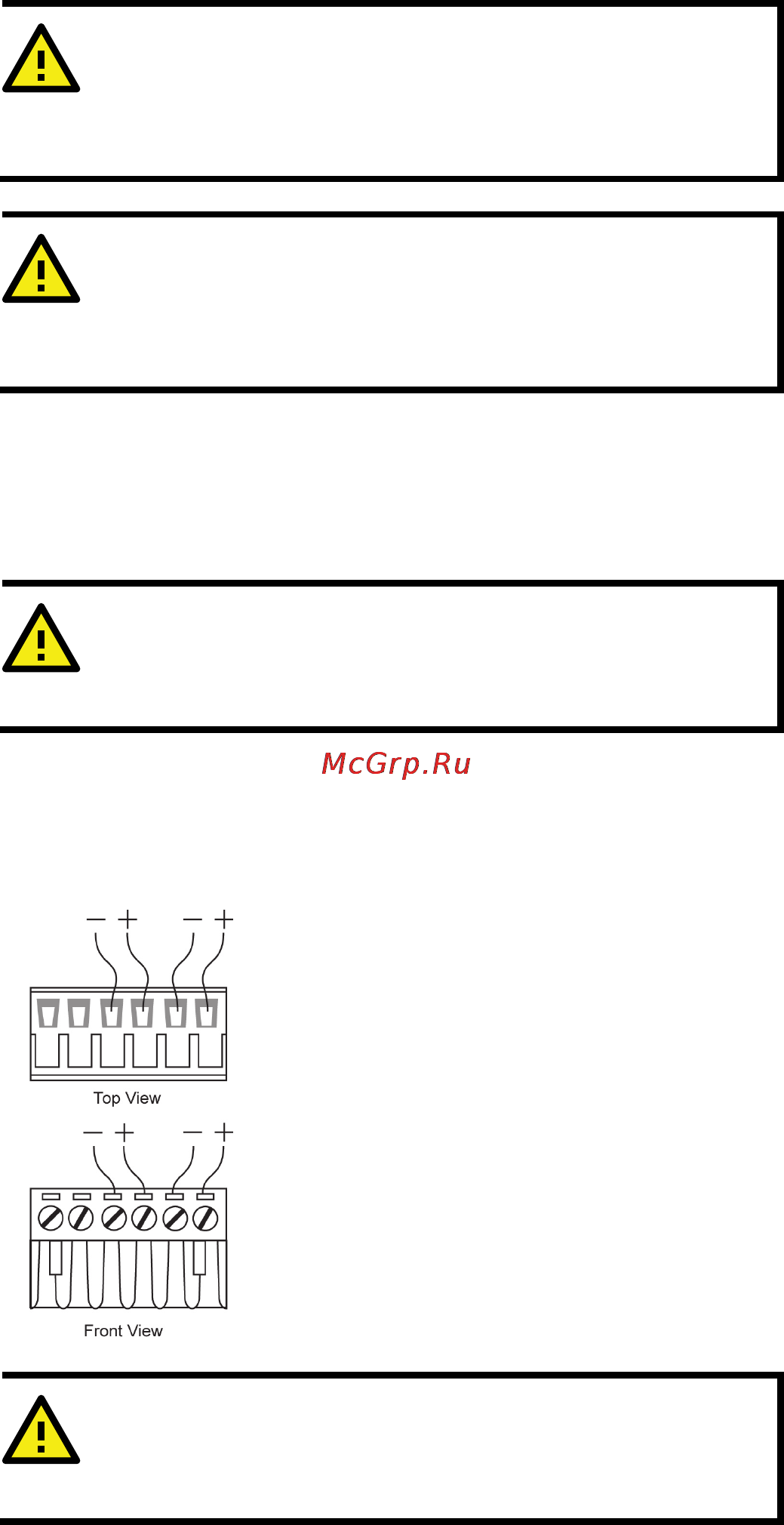

Top and front views of the terminal block connector is shown here.
STEP 1: Insert the negative/positive DC wires
into the
V-/V+ terminals.
STEP 2:
To keep the DC wires from pulling
loose,
use a small flat
-
blade screwdriver to tighten the
wire
-clamp screws on the front of the terminal
block connector.
STEP 3:
Insert the plastic terminal block
connector prongs into the terminal block
receptor, which is
located on the AWK-5222’s t
op
panel.
ATTENTION
Before connecting
the AWK-5222
to the DC power inputs, make
sure the DC power source voltage is stable.
