C320Turbo/PCIEL Hardware Installation

2-2

Installing the Intellio C320Turbo/PCIEL Control

Board

Step 1: Power off the PC.

WARNING

Make sure

the system is powered off before installing the PCI Express board to avoid damage.

Step 2: Remove the PC cover

Step 3: Remove the slot cover bracket

Step 4: Gently press the C32010T/PCIEL firmly into a free PCI Express x1 slot

Step 5: Fasten the holding screws to secure the Control Board

☞ Now the installation of the Control Board is complete. Continue to install the external modules.

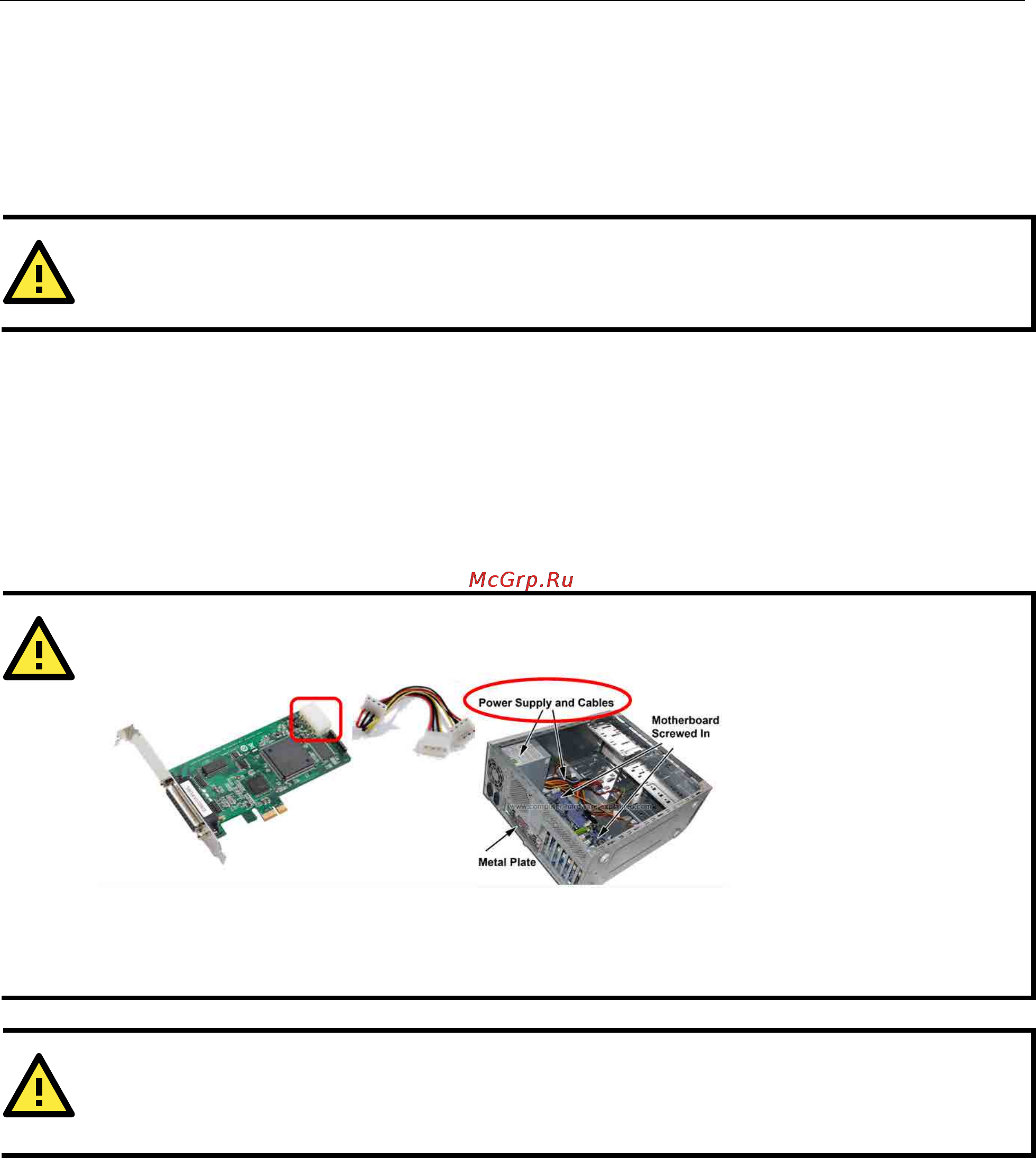

WARNING

The PCI express slot su

pplies only 3.3VDC and 5VDC and is not enough to power the C320T/PCIEL module

Users can use the power

connector on the C320T/PCIEL to connect directly to the power supply. If the host

device

does not have an IDE power cable,

please use the C32050T power adapter for external power supply.

WARNING

If using the C32065T as an external module, the C32050T power adapter needs to be used to supply external

power.

Installing the External Modules

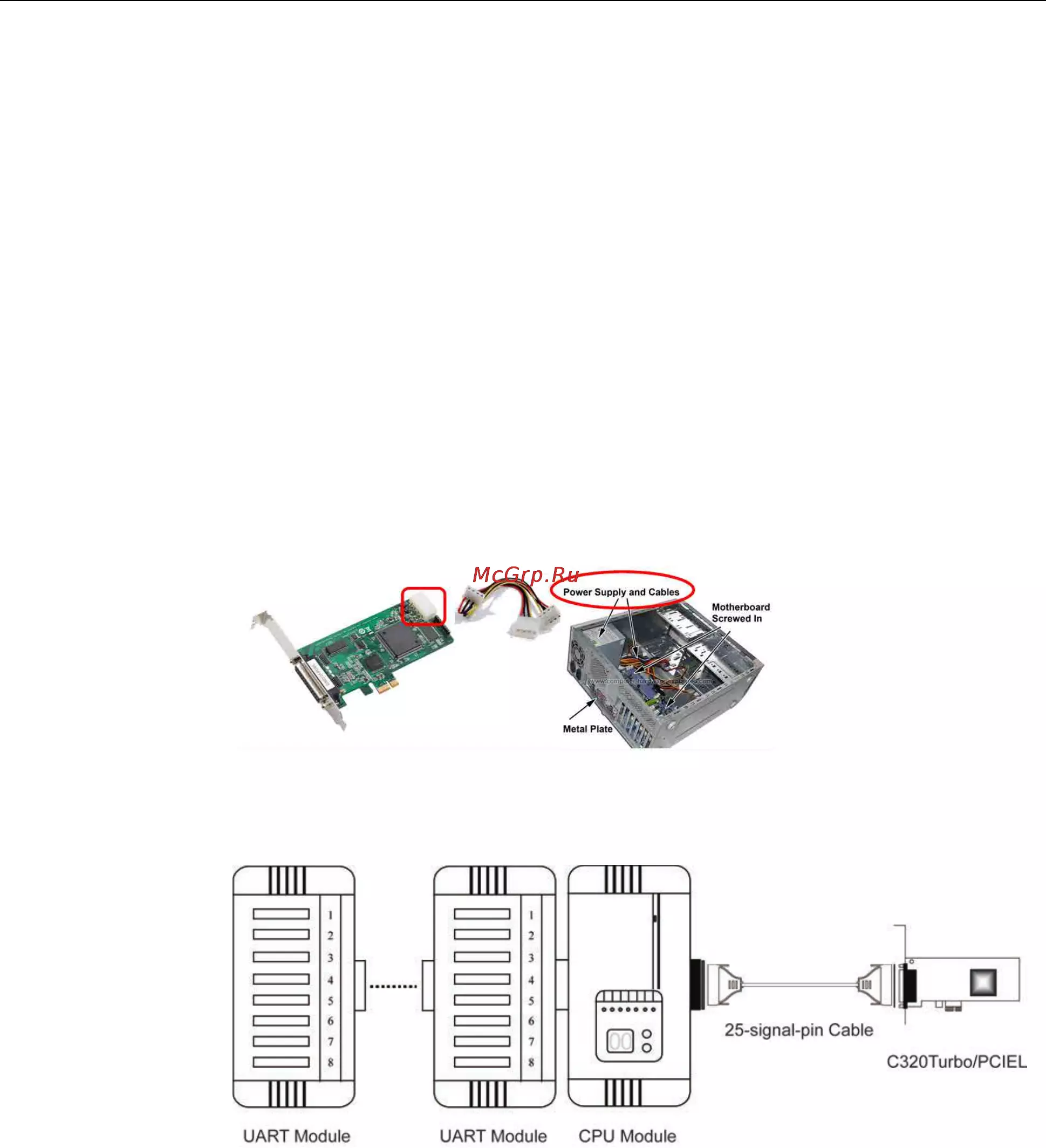

There are two connection options for the installation of external modules: CPU and UART Modules for Desktop,

and Basic/Extensive Modules for rackmount.

Normally, a standard 2-meter 15-pin DB25 to DB25 cable links the Control Board to the external module.

However, to extend the distance between Control Board and external module to over 2 m (up to 100 m) to

improve power insufficiency problem of the PC host, external power for the CPU/Basic Modules along

with a cable specially fabricated with only 10 signal pins should be used as illustrated in the next two

subsections and in chapter 5 as well. Otherwise, power degradation will cause system failure.
