C320Turbo/PCIEL Software Installation

3-5

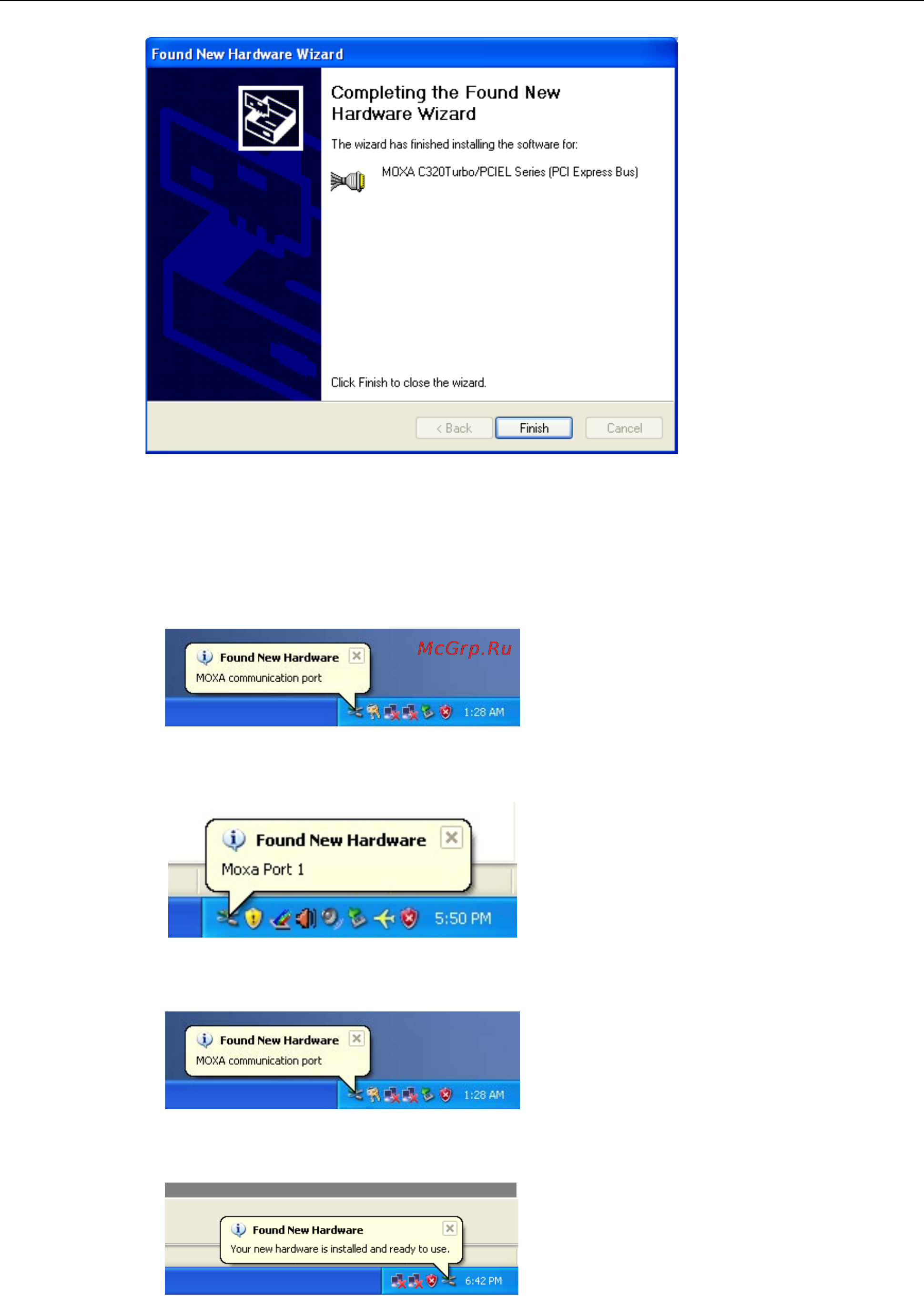

Installing the Multiport Board’s Serial Ports

1. Once you have successfully installed your PCI Express Multiport Board, the Windows XP operating system

will detect the board’s ports, and then begin installing them automatically.

2. You will see the following Found New Hardware message.

3. Then you will see the following Moxa Port 1 message. The Windows XP operating system will automatically

install the drive of Moxa Port 1.

4. For multiport boards, you will receive the Found New Hardware message, indicating that another

communication port has been located. Follow the above procedure for installing the subsequent ports.

5. Once all ports have been successfully installed, you will receive the following message, indicating that your

hardware has been installed successfully and is ready to use.
