DA-681A Series Linux System Recovery
5-4

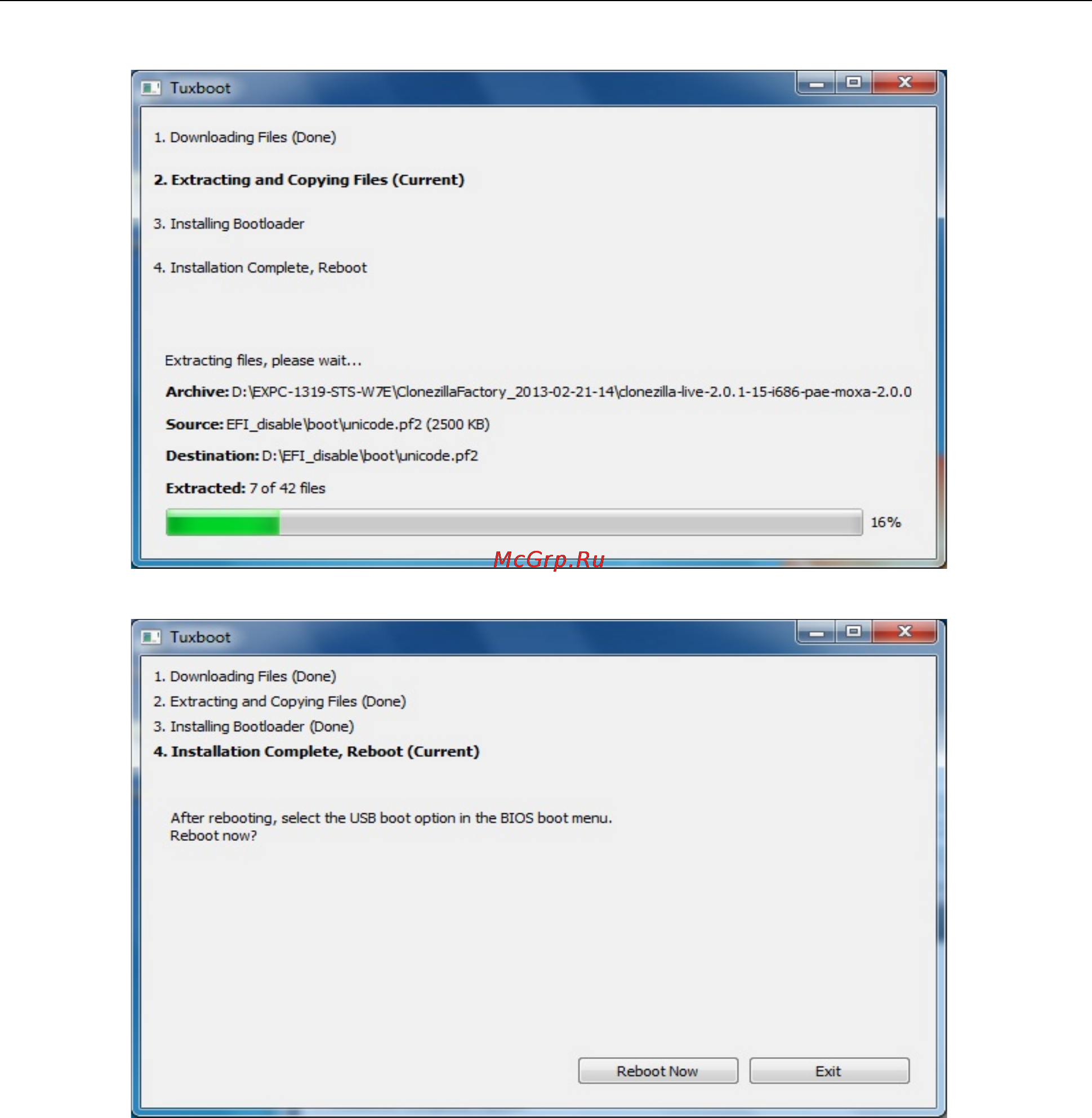

4. The boot files will be copied to your USB drive.
5. When finished, click Exit to stop the program.
6. Manually copy the os_image directory from the <Software DVD>
\Recovery\DA-681A-LX_V1.0_FW\1.0_Build_15092410\Clonezilla folder on the Software DVD to
\home\partimag\ on the USB drive.
