DA-681A Series Linux Introduction
1-3
Software Specifications
The Linux operating system pre-installed on the DA-681A embedded computer is the Debian Jessie 8.1
distribution. The Debian project is a worldwide group of volunteers who endeavor to produce an operating
system distribution that composed entirely of free software. The Debian GNU/Linux follows the standard Linux
architecture, making it easy to use programs that meet the POSIX standard. In addition to Standard POSIX

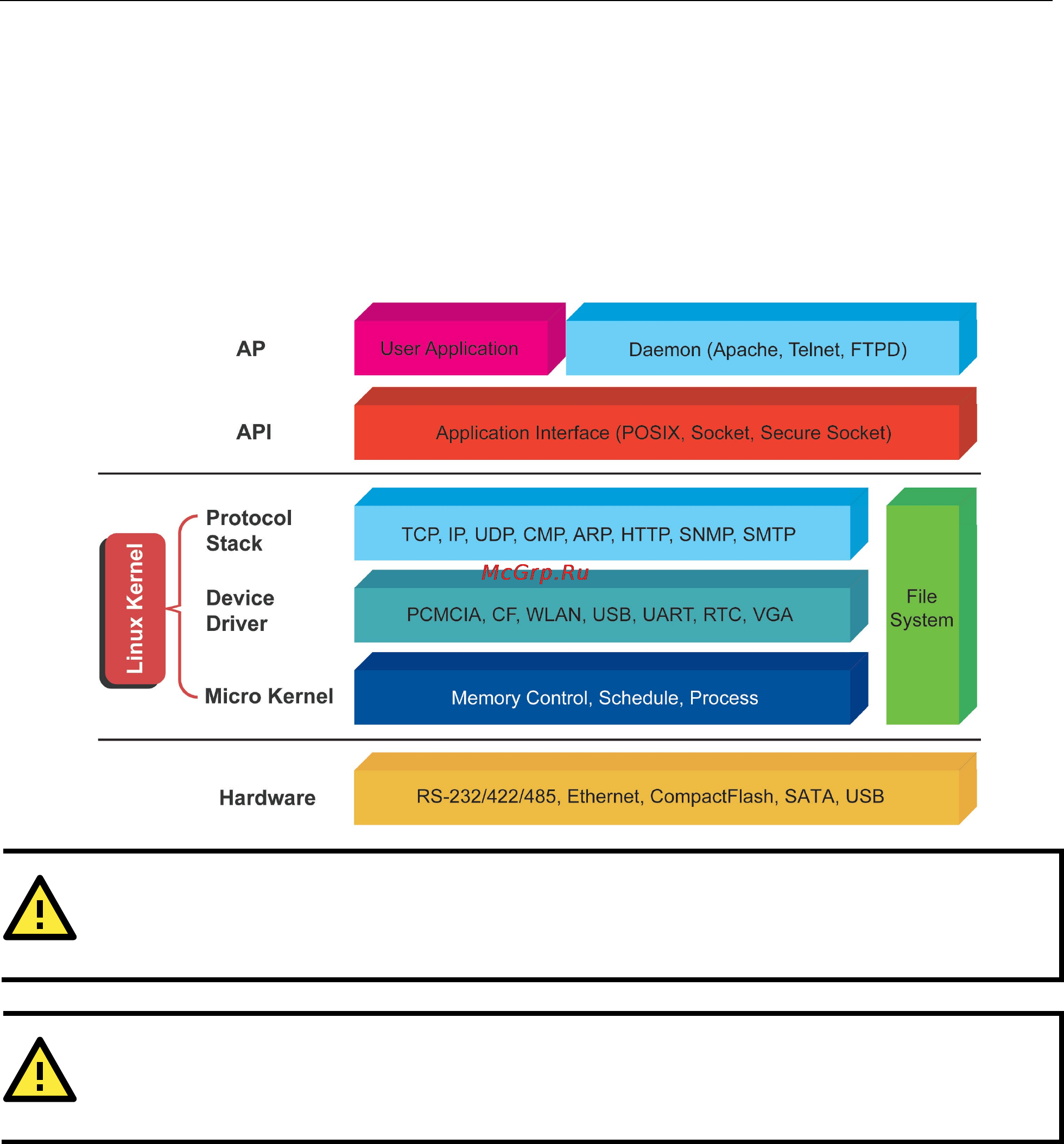

APIs, device drivers for Moxa UART and other special peripherals are also included. An example software
architecture is shown below:
ATTENTION
Refer to
http://www.debian.org/ and http://www.gnu.org/
for information and documentation of the Debian
GNU/Linux and free software concept.
ATTENTION
The above software architecture is only an example. Different models or different build revisions of the Linux
operating system may include components not shown in the above graphic.
