DA-681A Series Linux System Recovery
5-7

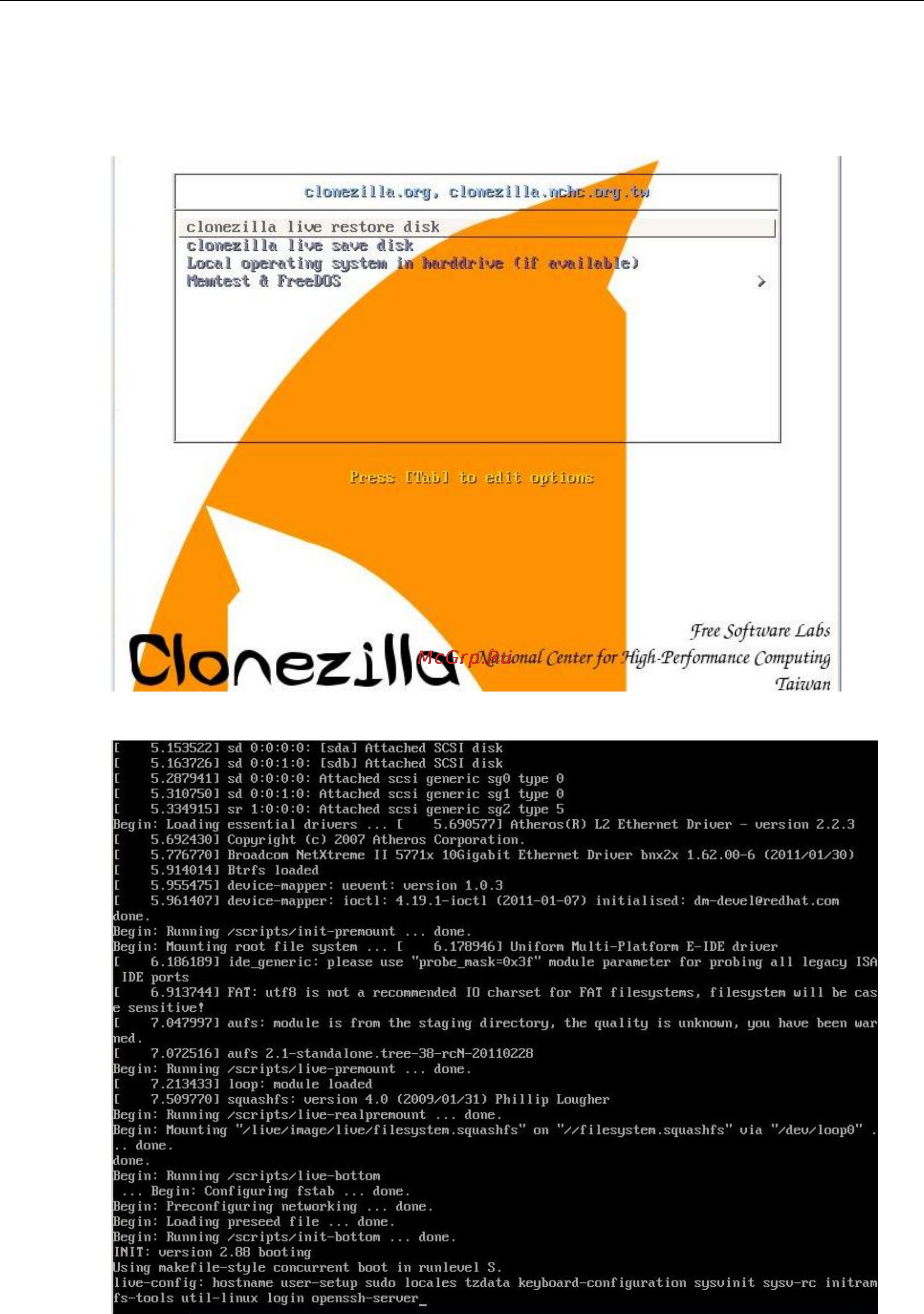

Step 3: Restore the system from the USB drive
Connect the USB disk to any of the DA-681A’s USB ports and then reboot the computer. The system will boot
from the USB disk and the Pre-installation Environment and the recovery utility will appear.
1. Select clonezilla live restore disk.
2. Wait for the USB drive boot process to finish.
