V2403 Series Hardware Hardware Connection Description

3-8

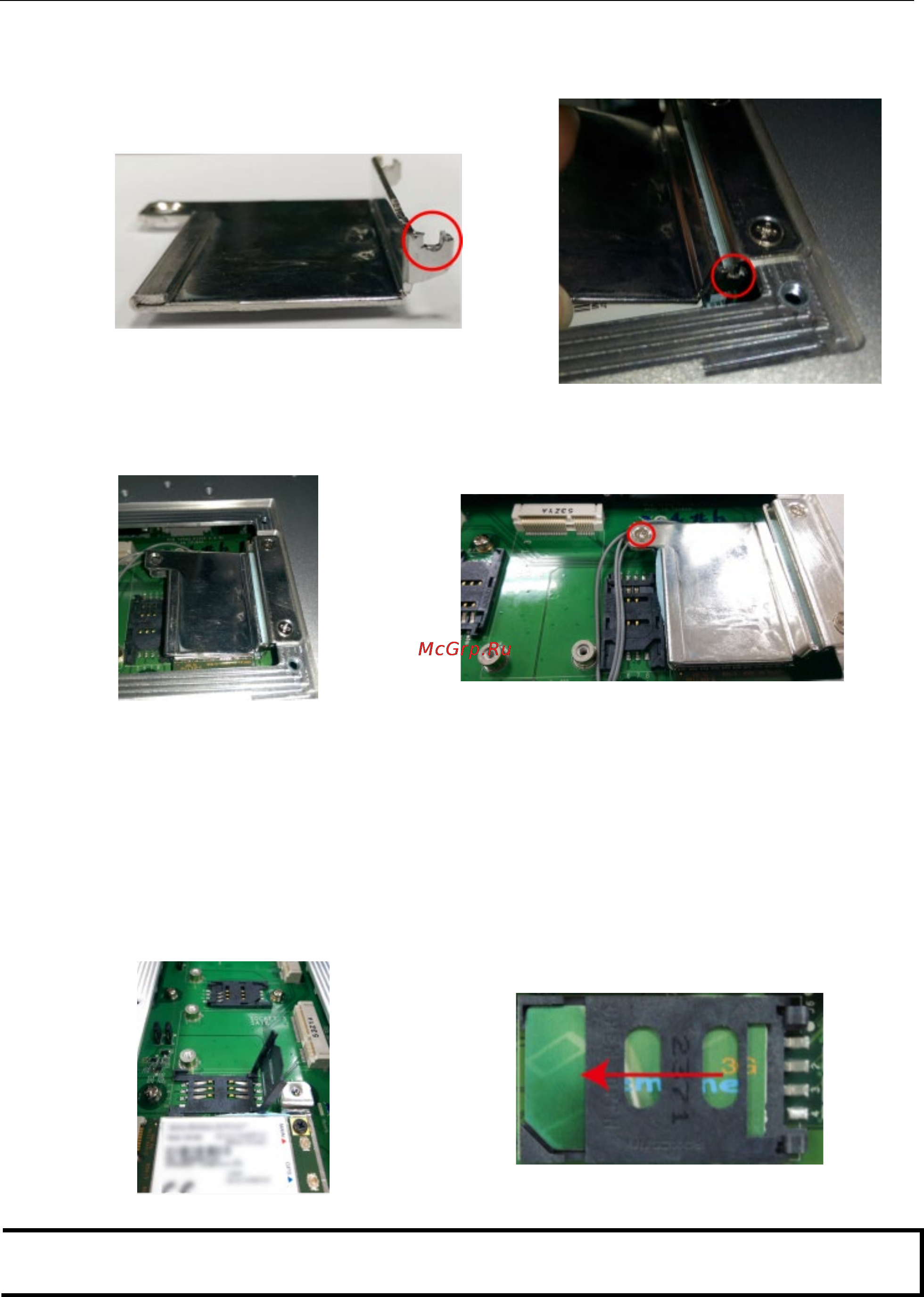

STEP 5: Use the fillister to obliquely buckle the heat sink that was already installed inside the V2403 computer,

as shown below:



STEP 6: Slightly push down the upper heat sink cover and use the silver screw from the wireless package to

fasten the upper heat sink cover (outlined in red below).



STEP 7: Replace the bottom cover.

Installing the USIM card

The V2403 has 2 USIM slots for 3G/LTE wireless Internet connections. Instructions for installing a USIM card

are shown below:

Pull up the USIM card slot and insert the USIM card. When finished, replace the holder and slide the slot

towards the catch to fasten the holder.



NOTE

You may also purchase 3G, 4G, and Wi

-Fi external antennas from from Moxa. Please contact Moxa sales

representative for your demand.
