V2403 Series Hardware BIOS Setup
4-2
Entering the BIOS Setup

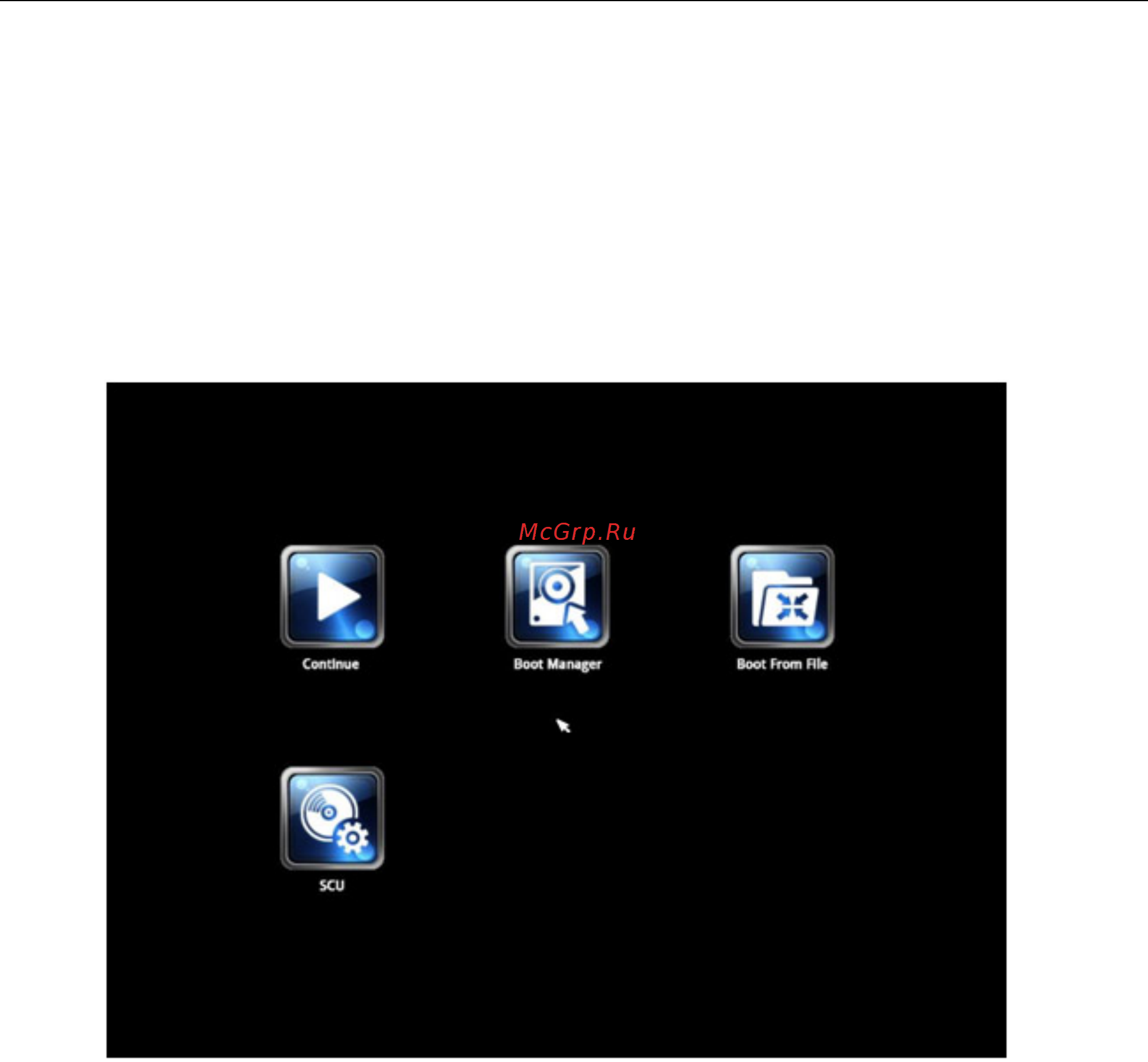

To enter the BIOS setup utility, press the F2 key while the system is booting up. The main BIOS Setup screen
appears with the following options:
• Continue: Continue to boot up
• Boot Manager: Select the device to boot up
• Boot From File: Select the UEFI boot up file
• SCU: Enter the BIOS configuration.
Click SCU to enter the BIOS configuration.
When you click SCU, a basic description of each function key is listed at the bottom of the screen. Refer to these
descriptions to learn how to use them.
F1: Help
F5/F6: Change Values
F9: Setup Defaults
F10: Save and Exit
↑↓
: Select Item
←
→
: Select Menu
ESC: Exit
ENTER: Select or go to Submenu.
