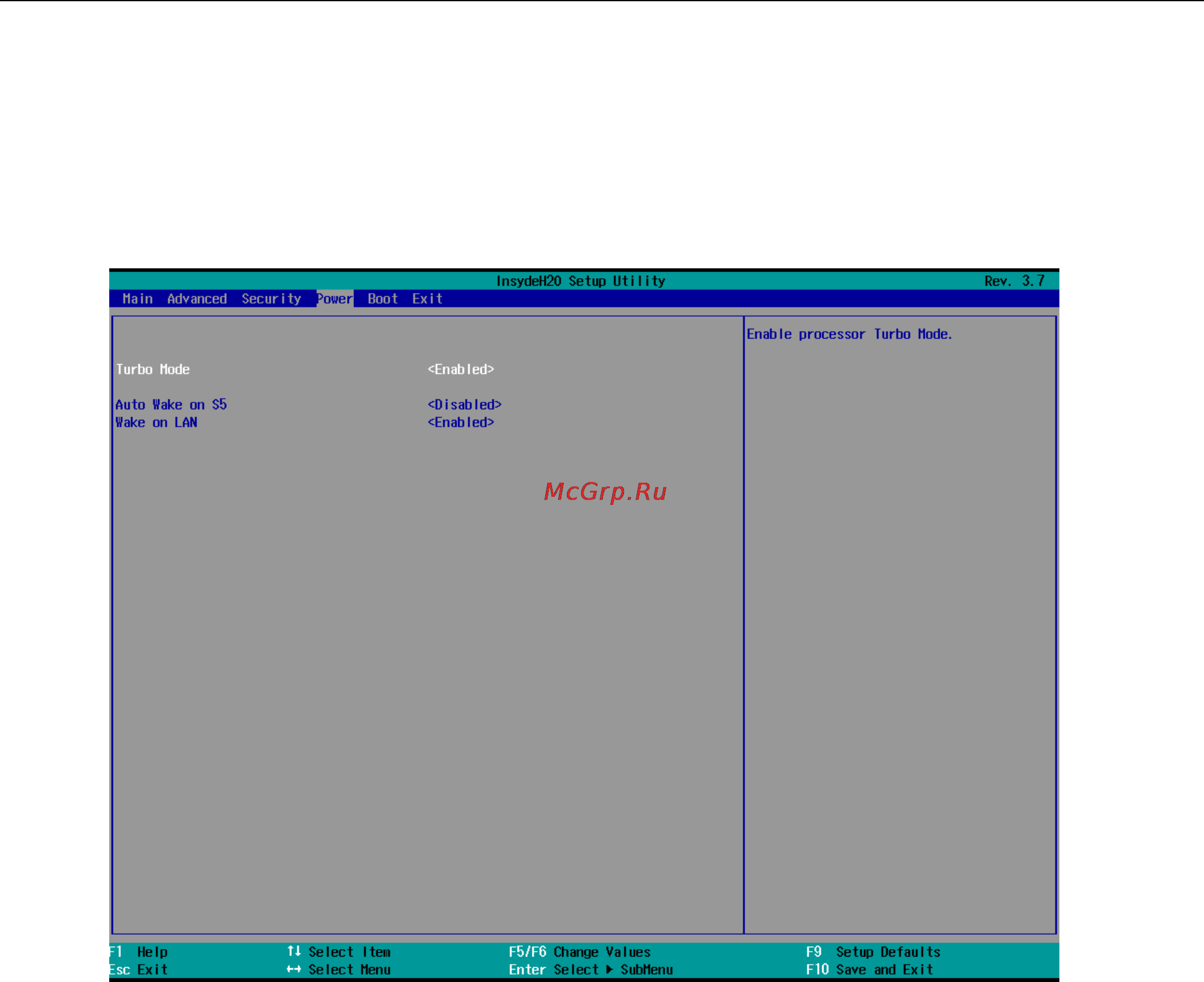

V2403 Series Hardware BIOS Setup
4-11
Turbo Mode
This field is only for models with an Intel Core-i7 processor.
This field allows you to determine whether to enable the Intel CPU Turbo Boost technology.
Options: Enabled (default), Disabled.
