V2403 Series Hardware BIOS Setup
4-18
Step 3: Run the Upgrade Program on the V2403 Computer

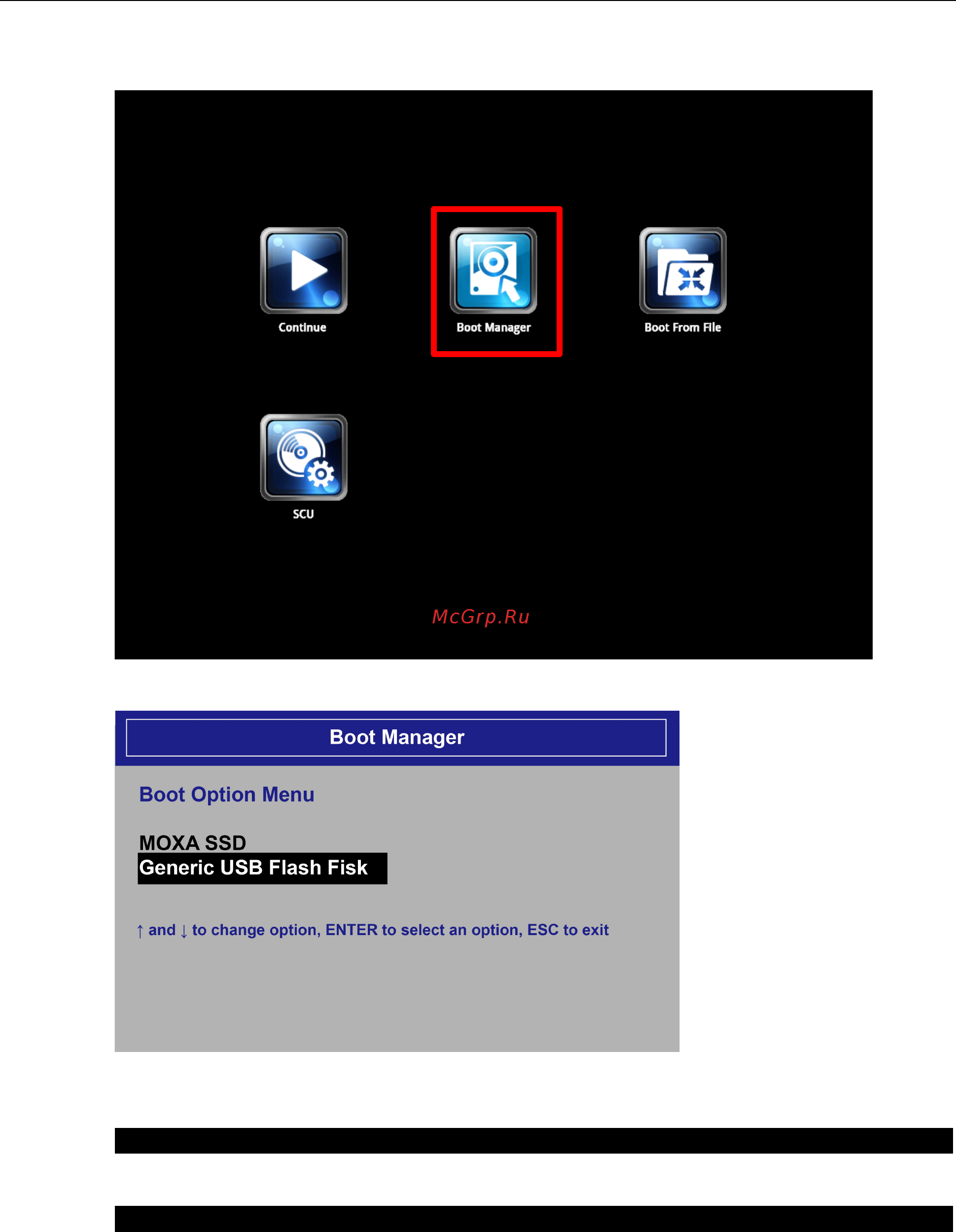

1. Reboot the computer, and press F2 during the booting process to display the Boot Manager.
2. Select USB Disk as the first boot source and press [Enter] to continue.
3. When the computer finishes booting up, a command window appears. Go to the directory where the
upgrade file is located. For example, if the upgrade file is stored in the V2403 folder, type cd V2403.
C:\cd V2403
4. Run the upgrade program by typing 24A12S01.exe.
Note that the filename for the upgrade program may vary depending on the version.
C:\V2403>
24A12S01.exe
