V2403 Series Hardware Hardware Connection Description
3-12
Connecting to a DVI-I Monitor
The V2403 computers come with a DVI
-I
connector
that you can connect to a DVI
monitor. Use the cable to connect one end to
the DVI
-I connector on the V2403’s front
panel and t
he other end to the monitor.

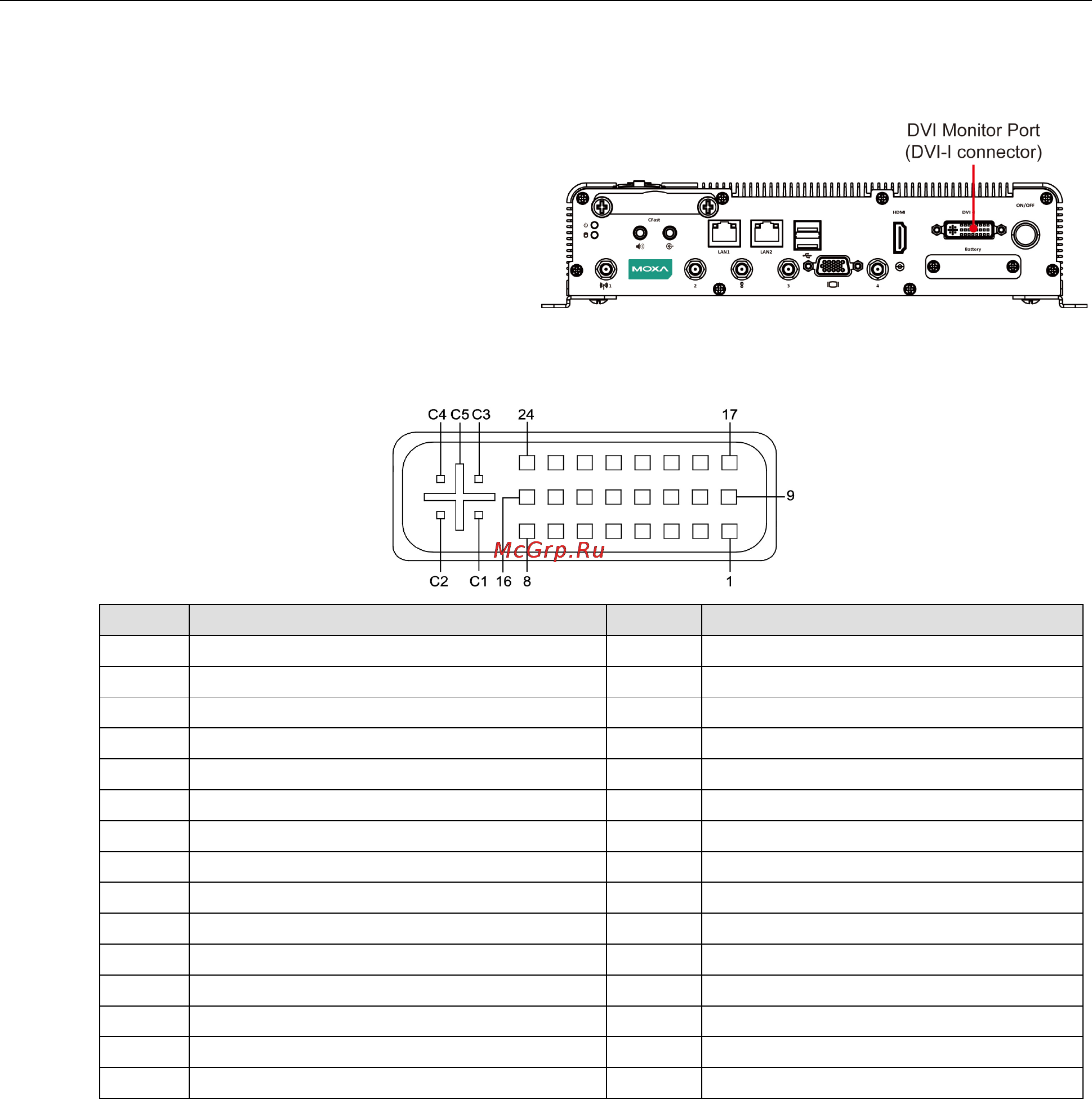

The following table lists the DVI-I connector pin assignments.
DVI-I Connector
Pin No. Signal Definition Pin No. Signal Definition
1 T.M.D.S. Data2- 16 Hot Plug Detect
2 T.M.D.S. Data2+ 17 T.M.D.S. Data0-
3 T.M.D.S. Data2/4 Shield 18 T.M.D.S. Data0+
4 T.M.D.S. Data4- 19 T.M.D.S. Data0/5 Shield
5 T.M.D.S. Data4- 20 T.M.D.S. Data5-
6 DDC Clock 21 T.M.D.S. Data5+
7 DDC Data 22 T.M.D.S. Clock Shield
8 Analog Vertical Sync 23 T.M.D.S. Clock+
9 T.M.D.S. Data1- 24 T.M.D.S. Clock-
10 T.M.D.S. Data1+ C1 Analog Red
11 T.M.D.S. Data1/3 Shield C2 Analog Green
12 T.M.D.S. Data3- C3 Analog Blue
13 T.M.D.S. Data3+ C4 Analog Horizontal Sync
14 +5V Power C5 Analog Ground (analog R, G, B return)
15 Ground (return for +5V, HSync, and VSync)
HDMI Outputs
The V2403 comes with a type A HDMI female connector and a DVI-I female connector on the front panel to
connect an HDMI or DVI-I supported monitor.
The screw hole above the HDMI connector is used to attach a customized lock to the HDMI connector; a custom
lock is needed since the shape of different HDMI connectors are not the same. Contact a Moxa sales
representative for details.
