V2401/2402 HW User's Manual Hardware Connection Description
3-11

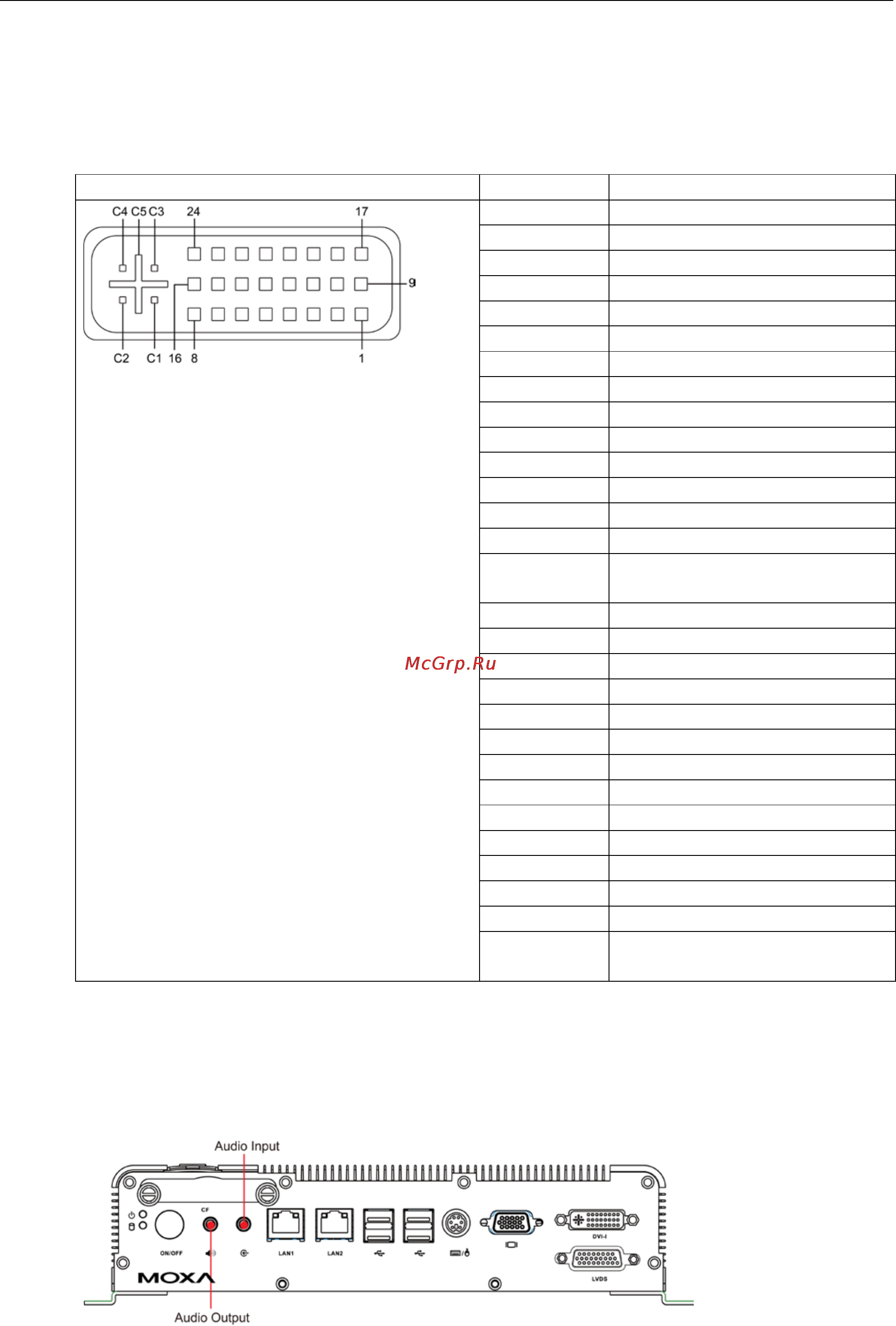

Connecting to a DVI-I Monitor
The V2401/2402 computers come with a DVI-I connector that can connect to a DVI monitor. Use the cable to
connect one end to the DVI-I connector and the other end to the monitor. See the following table for DVI-I
connector pin assignments.
DVI Connector Pin No. Signal Definition
1 T.M.D.S. Data2-
2 T.M.D.S. Data2+
3 T.M.D.S. Data2/4 Shield
4 T.M.D.S. Data4-
5 T.M.D.S. Data4-
6 DDC Clock
7 DDC Data
8 Analog Vertical Sync
9 T.M.D.S. Data1-
10 T.M.D.S. Data1+
11 T.M.D.S. Data1/3 Shield
12 T.M.D.S. Data3-
13 T.M.D.S. Data3+
14 +5V Power
15 Ground (return for +5V, HSync, and
VSync)
16 Hot Plug Detect
17 T.M.D.S. Data0-
18 T.M.D.S. Data0+
19
T.M.D.S. Data0/5 Shield
20 T.M.D.S. Data5-
21 T.M.D.S. Data5+
22 T.M.D.S. Clock Shield
23 T.M.D.S. Clock+
24 T.M.D.S. Clock-
C1 Analog Red
C2 Analog Green
C3 Analog Blue
C4 Analog Horizontal Sync
C5 Analog Ground
(analog R, G, B return)
Connecting to a Speaker or a Headphone
The V2401/2402 comes with audio input and output interfaces for connecting a microphone and speaker or
headphones. See the following figure for details.
