V2401/2402 HW User's Manual Hardware Connection Description
3-12
Upgrading the Memory Module
The V2401/2402 embedded computers support one 200-pin DDR2 533 SODIMM module of up to 2GB. One
DDR2 SDRAM memory module is installed at the factory. To upgrade the DDR2 SDRAM memory module, follow
these instructions:
Disconnect the V2401/2402 from the power source.

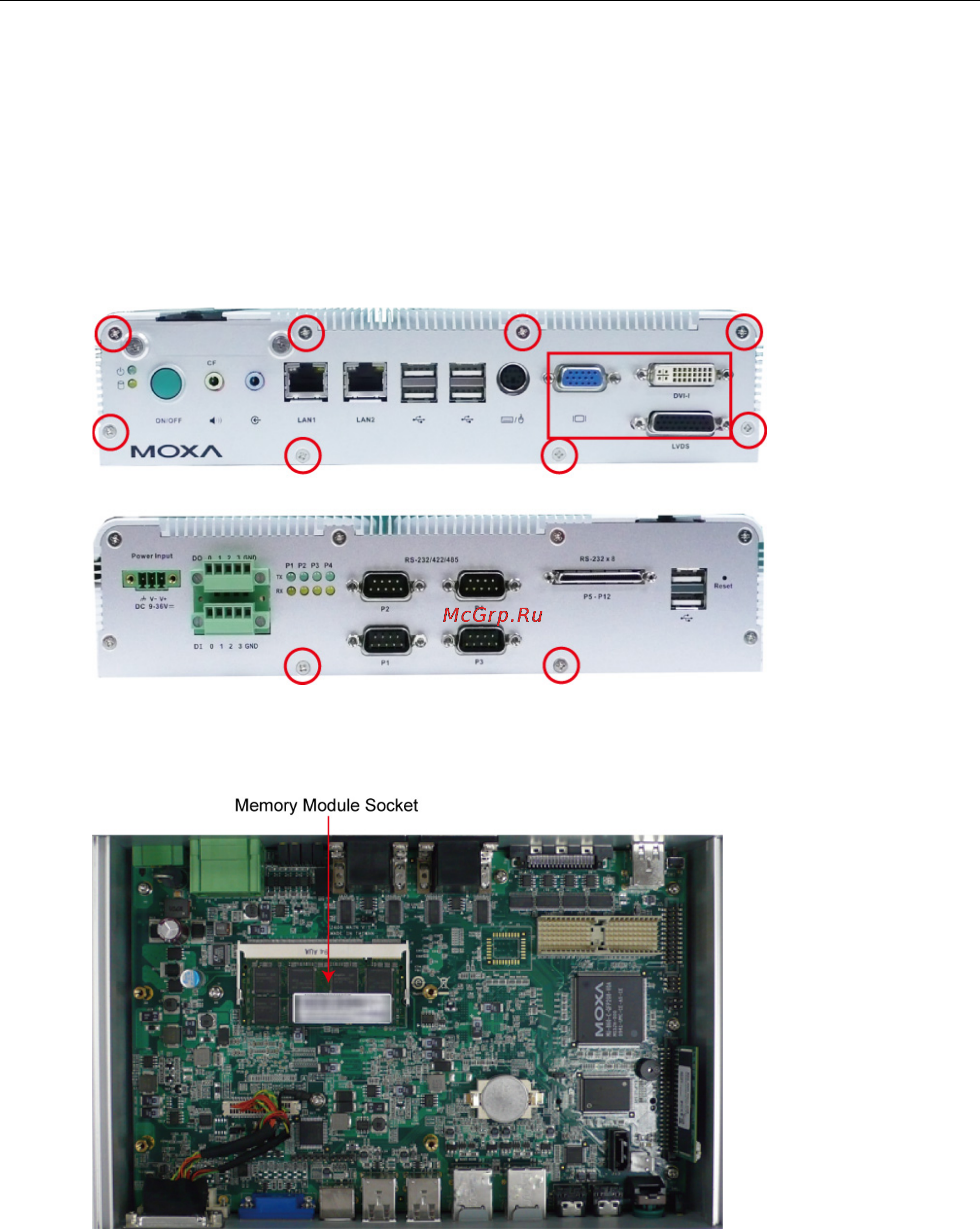

Remove the eight screws on the front panel and two screws on the rear panel. Also, you need to remove the
screws on the display connectors, including VGA, DVI and LVDS. See the following figures for details.
When finished, pull up the back cover of the V2401/2402 computer.
Find the location of the memory module.
