V2401/2402 HW User's Manual BIOS Setup
4-7
Peripherals
OnChip IDE Device

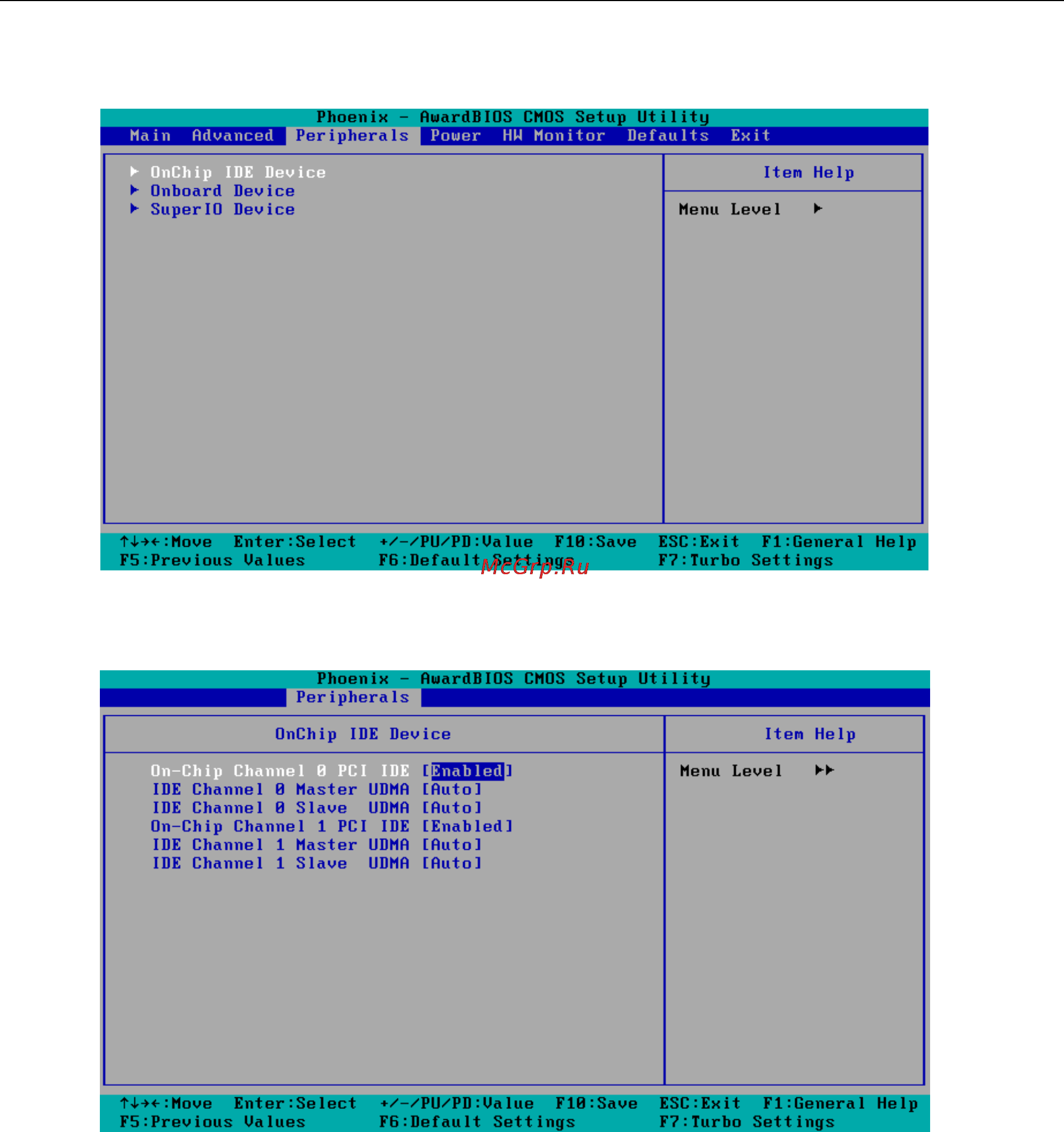

On-Chip Channel 0 PCI IDE
This item allows you to enable or disable the Channel 0 onboard PCI device.
Options: Enabled (default), Disabled
IDE Channel 0 Master UDMA
This item allows you to configure UDMA mode for the device on IDE channel 0 Master.
Options: Disabled, Auto (default), UDMA33, UDMA66, UDMA100
IDE Channel 0 Slave UDMA
This item allows you to configure UDMA mode for the device on IDE channel 0 Slave..
Options: Disabled, Auto (default), UDMA33, UDMA66, UDMA100
