V2401/2402 HW User's Manual Hardware Connection Description
3-13
Carefully remove the module by clicking the clutches at both sides of the module, and then replace the new
module. Be sure to orient the module correctly.
When finished, replace the back cover of the computer.
Upgrade the DOM Module
The V2401/2402 has been pre-installed with a DOM to store the OS. To upgrade the DOM module, see the
following steps.

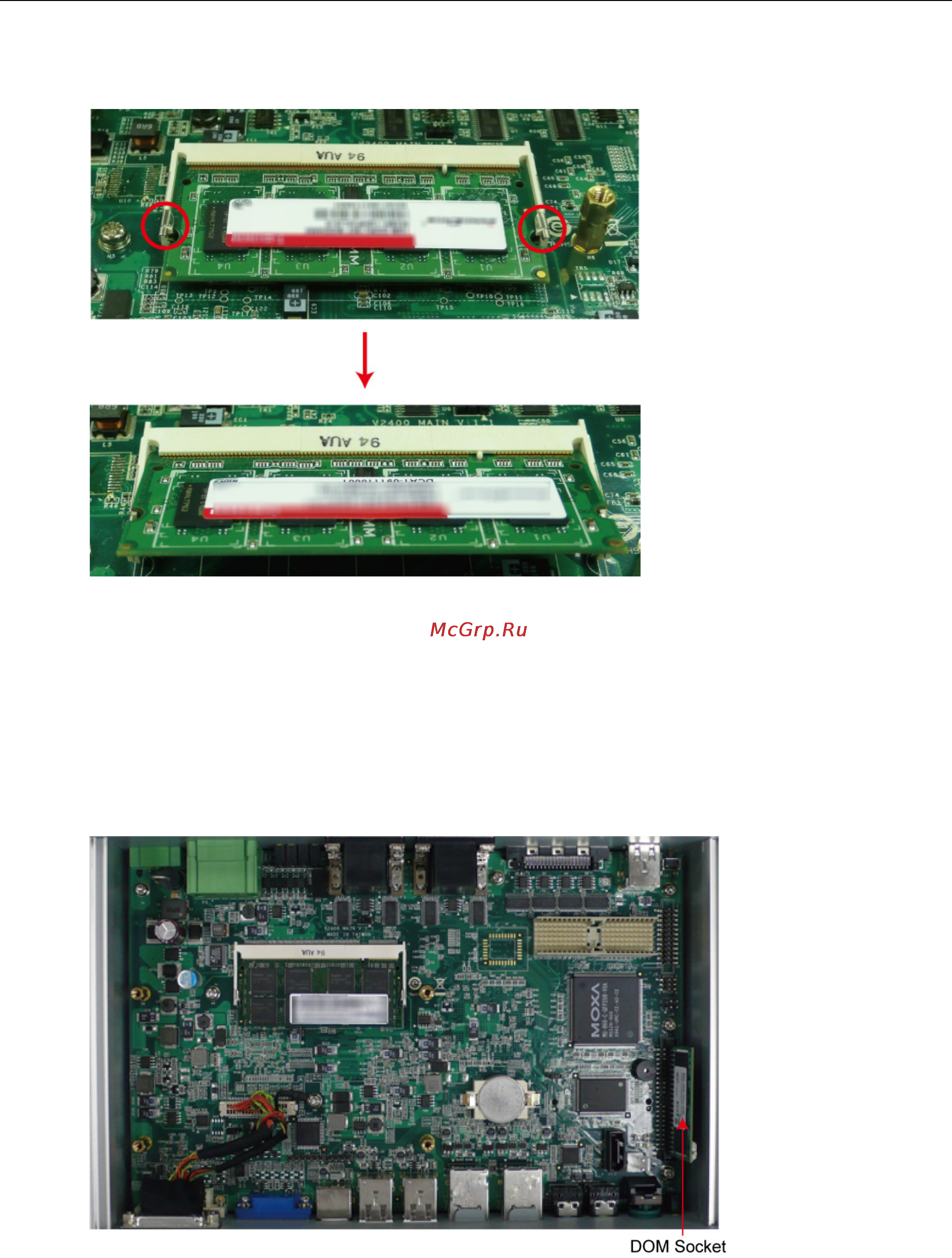

After taking off the back cover of the V2401/2402, find the location of the DOM module socket.
