DA-710 Series Hardware Manual Hardware Installation
2-2
Placement Options
Desktop
Place your DA-710 on a clean, flat, well-ventilated desktop. For better ventilation, leave some space between
the DA-710 and other equipment. Do not place equipment or objects on top of the DA-710, as this might
damage the computer’s internal components.
Rack Mounting
The DA-710 has rackmount supports for installing the embedded computer on a standard rack.
ATTENTION
1.
For maximum safety, at least two persons should work together to lift, place,
and attach the embedded
computer to the rack.
2.
Before you lift or move the embedded computer, make sure that the embedded computer is turned off
and
power to the rack system is turned off.

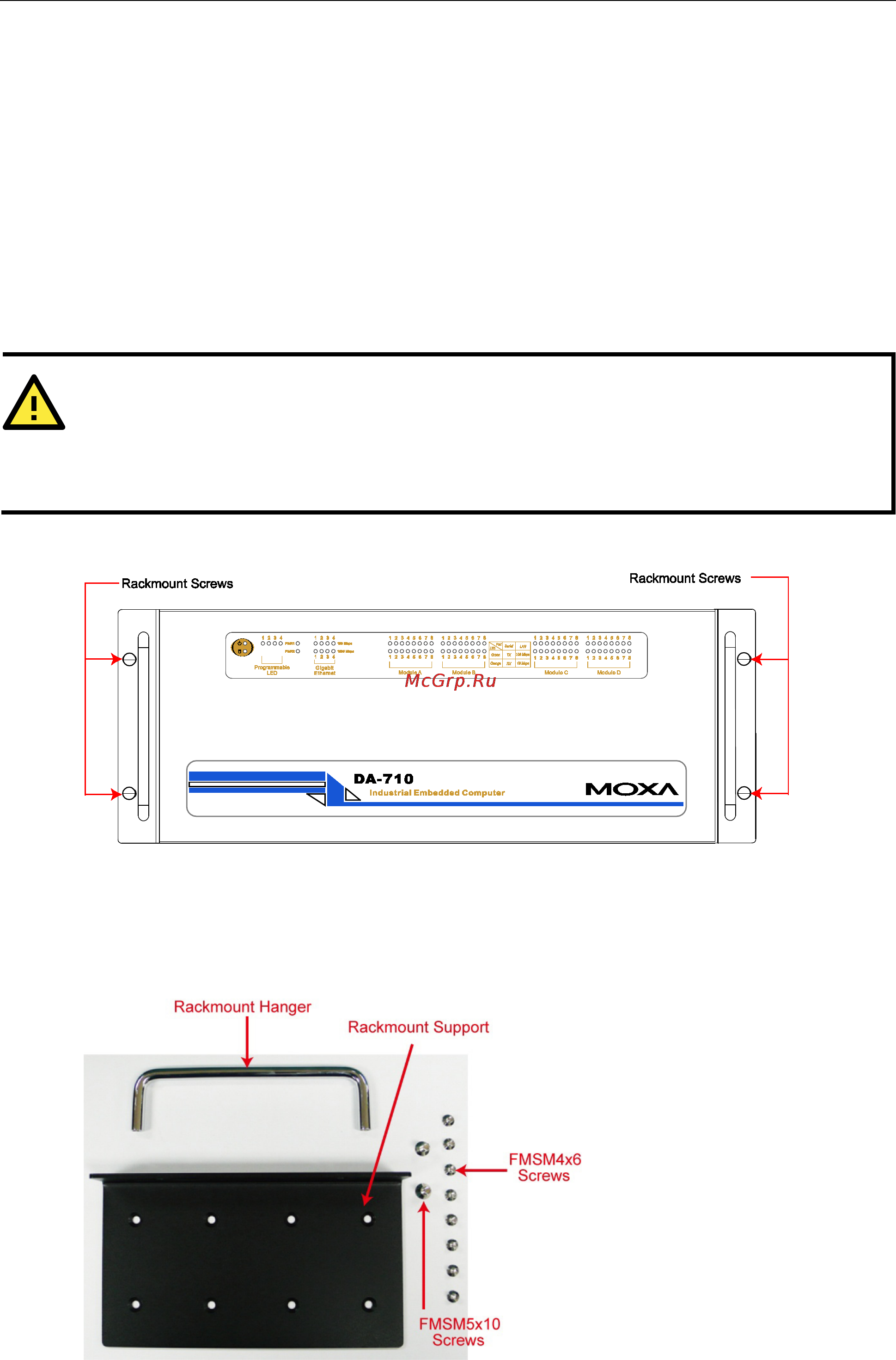

Four rackmount screws are required to attach the DA-710 to a standard rack.
Follow these steps to install the DA-710 on a rack.
Step 1: Reviewing your components.
Take the rackmount supports out of their packages. There are two packages, each of which contains 1
rackmount support, 1 rackmount hanger, 2 FMSM5X10 screws, and 8 FMSM4X6 screws.
