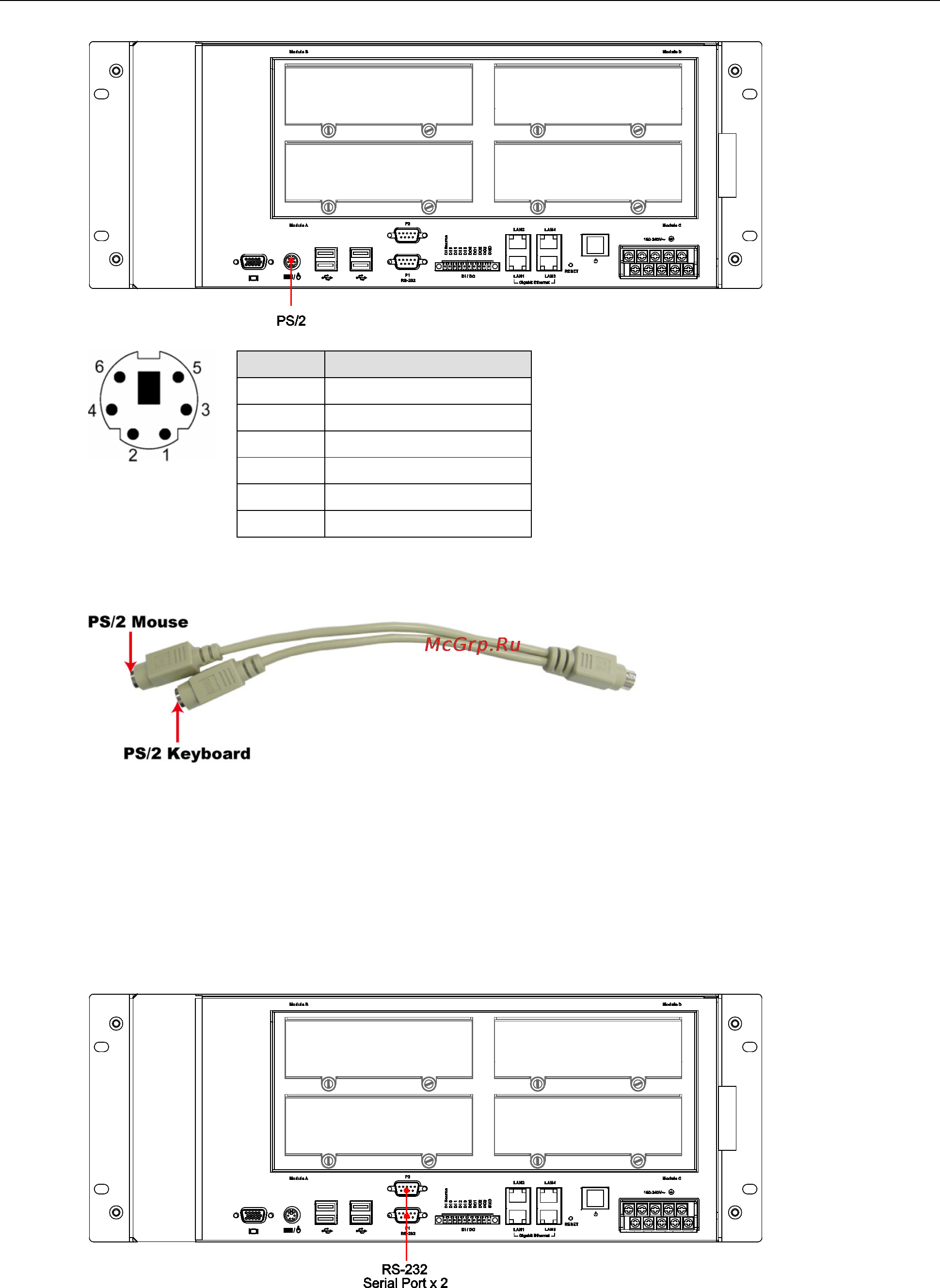

DA-710 Series Hardware Manual Hardware Installation
2-11
Pin No. Signal Definition
1 PS/2 Keyboard Data
2 PS/2 Mouse Data
3 GND
4 VCC
5 PS/2 Keyboard Clock
6 PS/2 Mouse Clock
Use a Y-type cable to convert the mini-DIN connector into two 6-pin mini-DIN connectors in order to
simultaneously connect both a PS/2 keyboard and PS/2 mouse.
Note: Without the Y-type cable, the PS/2 connector on the DA-710 series can only work with a PS/2
keyboard. A PS/2 mouse will not function when directly connected to the PS/2 connector on the
DA-710 series.
Connecting to a Serial Device
Use a serial cable to plug your serial device into the serial port on the rear panel of the embedded computer.
The DA-710 offers two serial ports with DB9 male connectors. The pin assignments are shown in the following
table:
