DA-710 Series Hardware Manual Introduction
1-4

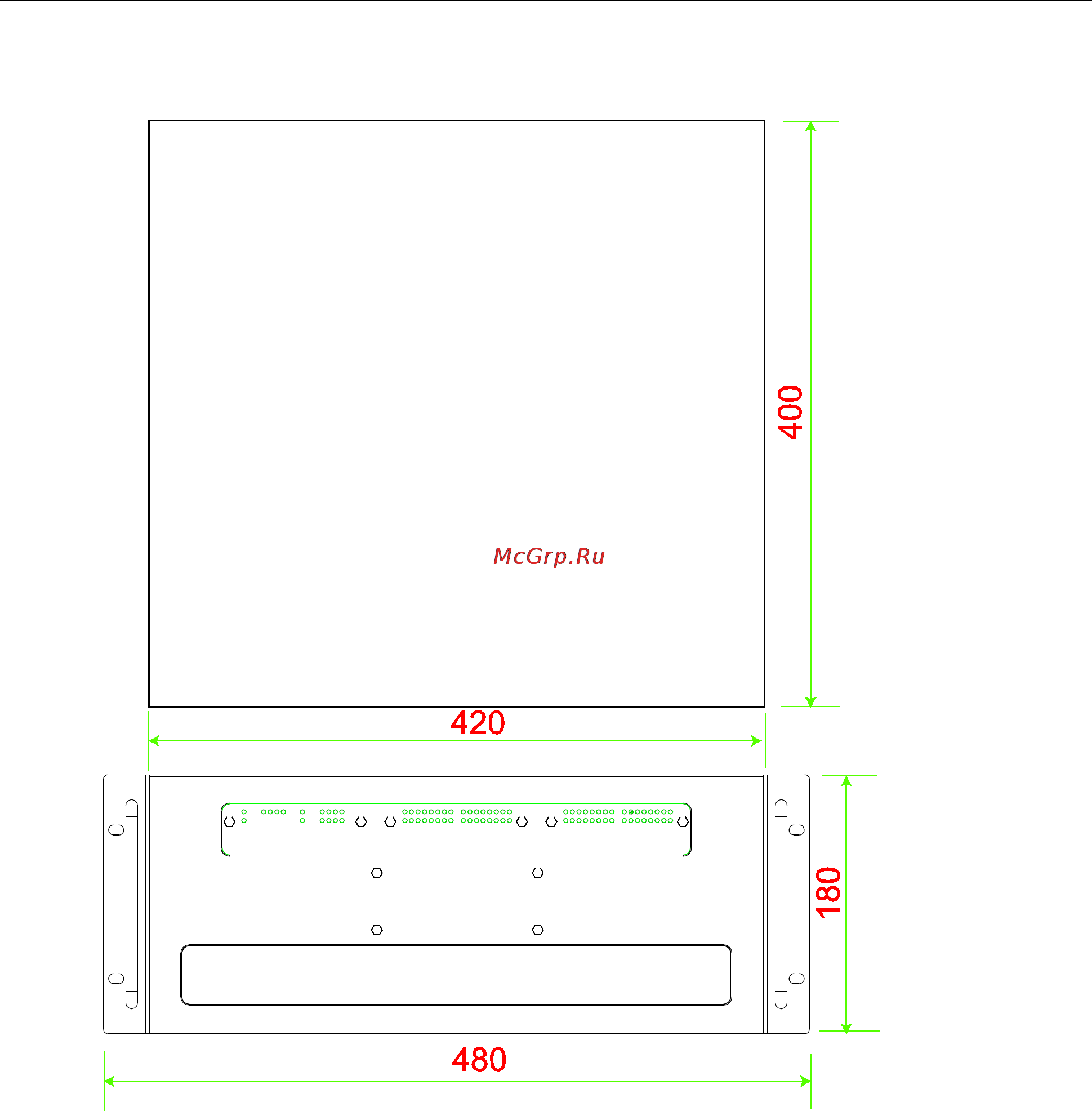

Dimensions
Features
• Intel Celeron M 2.0 GHz processor with 533 MHz FSB
• 1 x 200-pin DDR2 SODIMM socket, supporting up to 2 GB of DDR2 533 RAM.
• 4 PCI slots for expansion cards
• Quad 10/100/1000 Mbps Ethernet for network redundancy
• 1 CompactFlash socket, 1 EIDE connector for DOM or IED hard disk, and 2 serial ATA-150 connectors for
storage expansion
• 4 USB 2.0 ports for high speed peripherals
• 4 DIs and 4 DOs
• 2 RS-232 serial ports, supporting non-standard baudrates
• LED indicators for displaying dual power, system ready, storage and module statuses
• 4 programmable LED indicators for customized functions
• Ready-to-run Linux or Windows Embedded Standard 2009 platform
• 19-inch rackmount model, 4U high
• Fanless design
• Dual 100/240 VAC/VDC power input
