DA-710 Series Hardware Manual Introduction
1-5

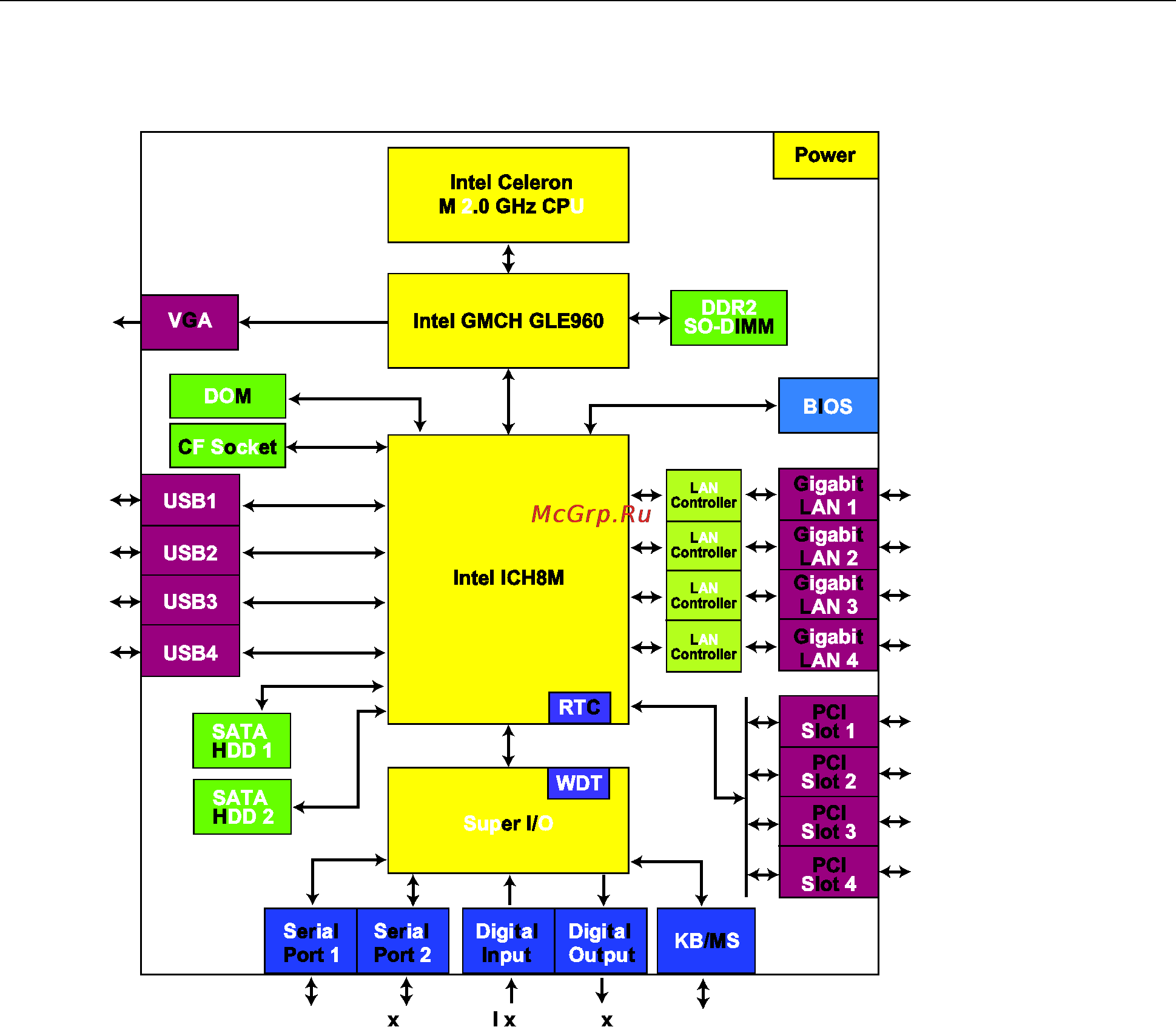

Hardware Block Diagram
Hardware Specifications
Computer
CPU:
• Intel Celeron M 2.0 GHz processor (standard version)
• Intel Core 2 Duo T7500 2.2 GHz processor (upgrade version; available by request)
OS (pre-installed): Windows Embedded Standard 2009, Linux 2.6
System Chipset: Intel GME965 + ICH8M
BIOS: 8 Mbit SPI Serial Flash, PCI Plug & Play, ACPI function support
FSB: 533 MHz
System Memory: 1 x 200-pin DDR2 SODIMM socket supporting DDR2 533; up to 2 GB max. (1 GB built-in)
USB: USB 2.0 compliant hosts x 4, type A connector, supports system boot up
Storage
Built-in: 2 GB industrial DOM onboard to store OS
Storage Expansion: CompactFlash socket
HDD Support: 2 x SATA connector, 1 x IDE connector
Other Peripherals
KB/MS: 1 PS/2 interface, supports standard PS/2 keyboard and PS/2 mouse
Display
Graphics Controller: Integrated Intel graphics media accelerator (GMA X3100)
Display Memory: Dynamic video memory technology
