EM-2260-CE User’s Manual Software Configuration
Display
The EM-2260 VGA output works through DB15 Female connector to display the Windows CE
desktop into a LCD monitor or a CRT monitor. The default setting is “800x600”, 16 bit and 60Hz.

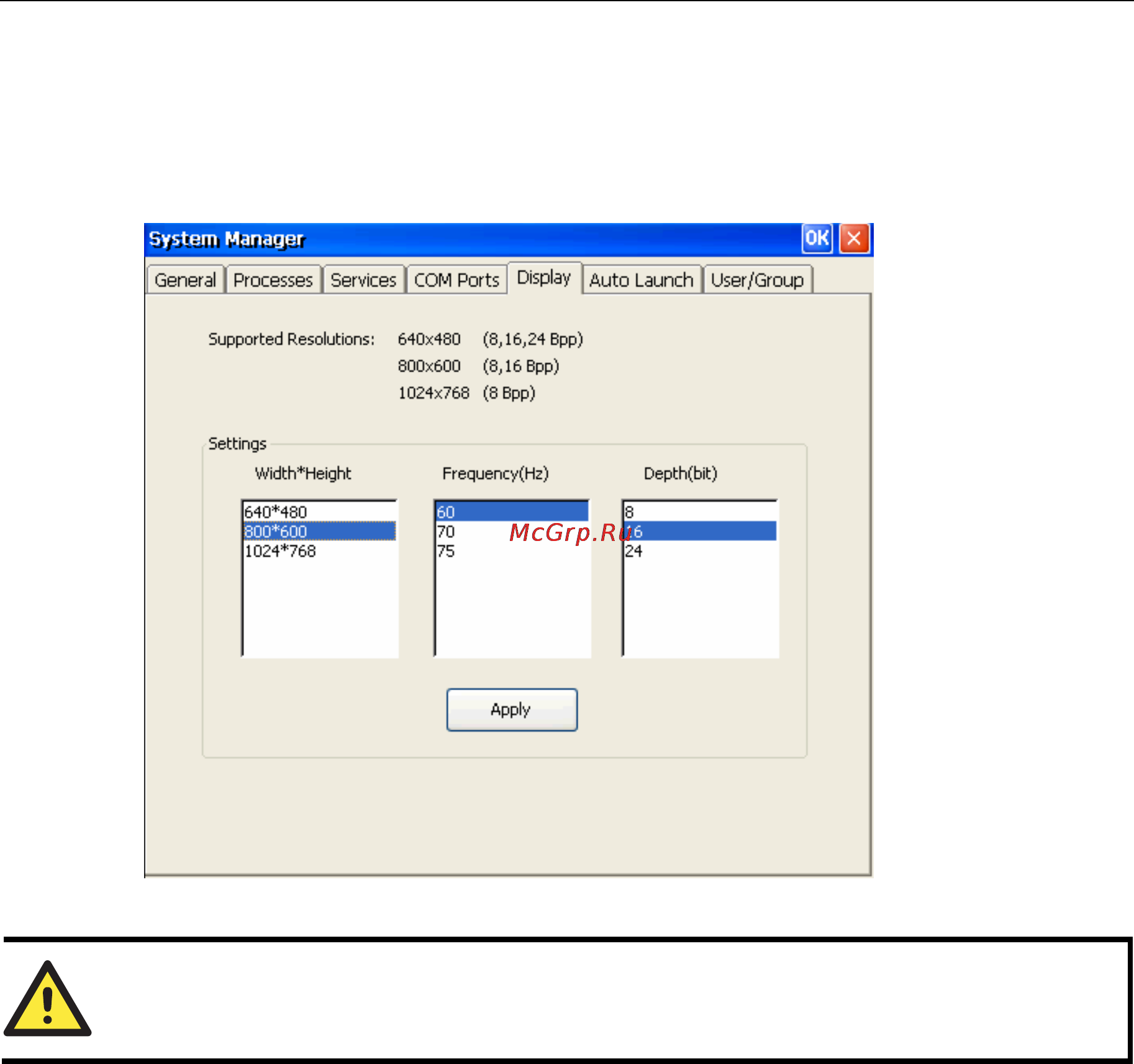

You should tune the setting to match your monitor’s specification. In the Display setting window
you can adjust the setting and press “Apply” to save the setting.
ATTENTION
You must restart (reboot) the system to make the setting takes effect.
2-7
