EM-2260-CE User’s Manual Boot Loader and Console Port
Firmware Upgrade Procedure
To upgrade the EM-2260 firmware, you must have the firmware upgrade installation file. This
firmware installation file is included in the released software CD. You can also download it from
MOXA Download Center if there is newly released, the URL is listed below.
http://web4.moxa.com/support/download_center.asp
1. Get the firmware upgrade installation file
(In this example, EM-2260-CE_V1.1_Build-08011415.hfm).

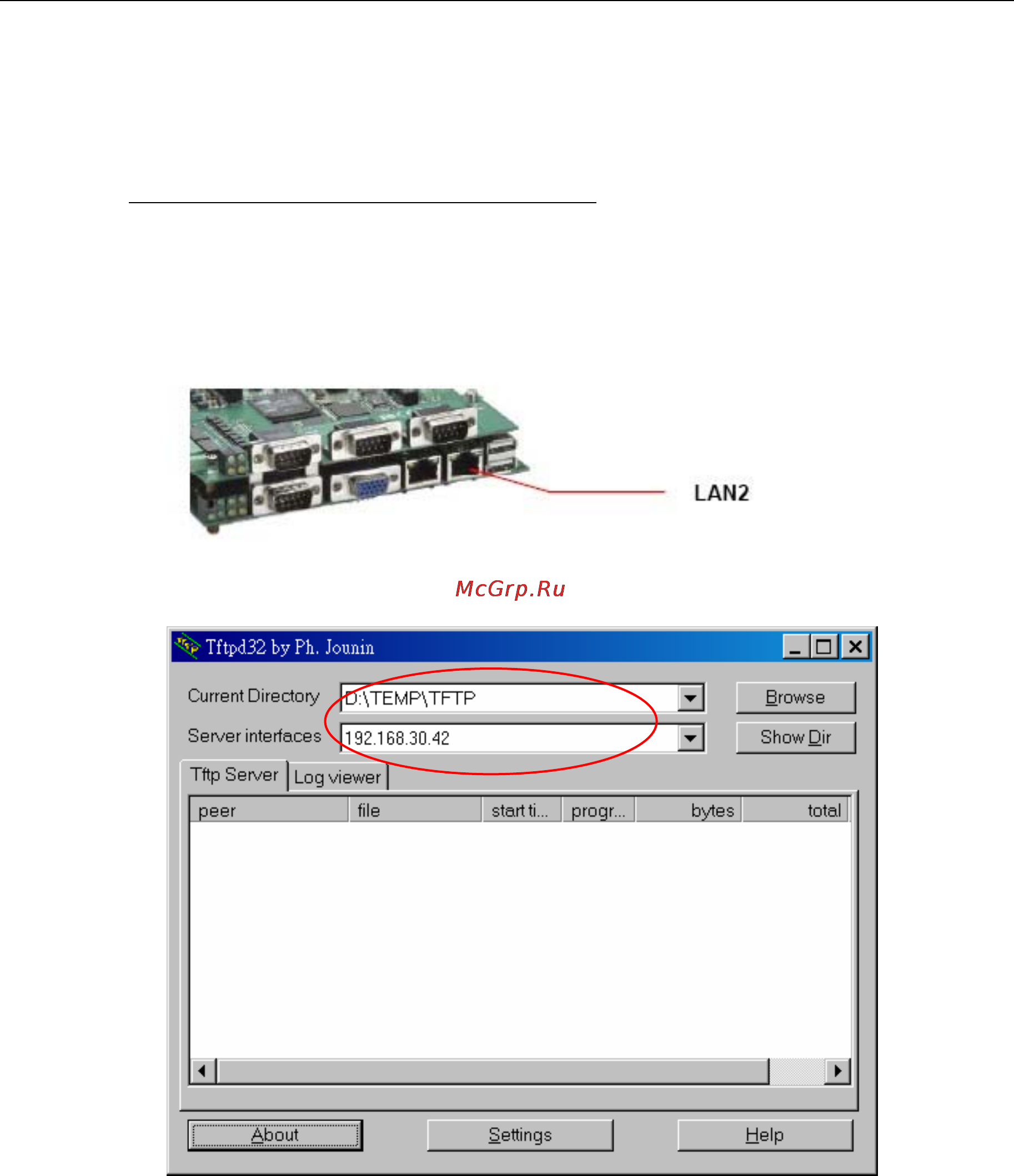

2. Connect target computer (The EM-2260) to development workstation (The PC) through
Ethernet port LAN2.
3. Execute TFTP utility on the development workstation (The PC), and set correct server IP and
file directory path. (In this example, 192.168.30.42).
3-5
