EM-2260-CE User’s Manual Boot Loader and Console Port

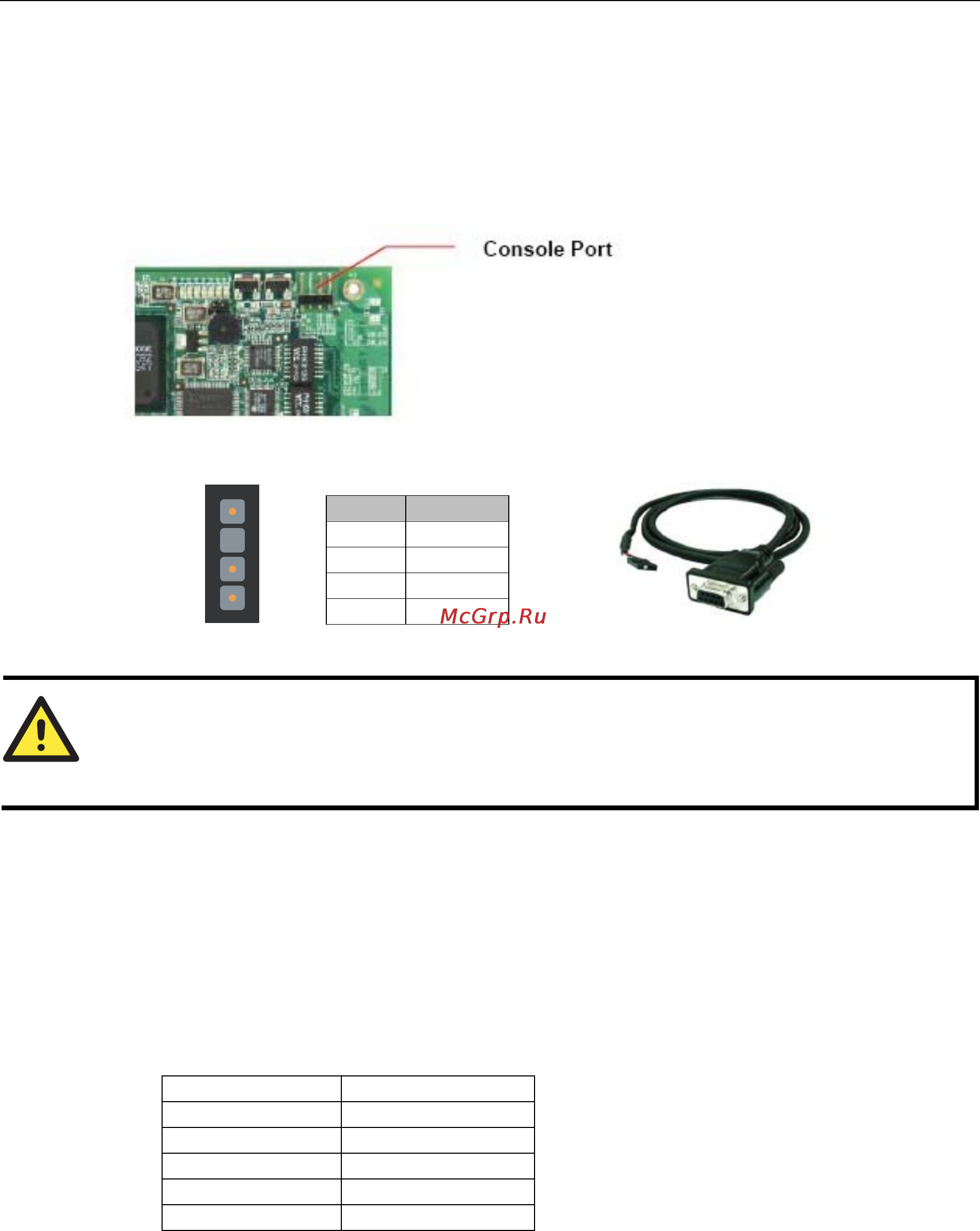

Console Ports
There is a 4-pin pin-header RS-232 console port designed for serial terminals, which gives users a
convenient way of connecting the development workstation (The PC) to the console utility of the
target computer (The EM-2260). This method is particularly useful when using the computer for
the first time or for debugging while the system cannot boot up. A special Serial Console Cable
(Optional) is needed for this function.
Serial Console Port & Pinouts Serial Console Cable
4
3
2
1
Pin Signal
1 TxD
2 RxD
3 NC
4 GND
ATTENTION
You do not need Console Port to operate this computer. Console Port and Serial Console Cable
are only for debugging purpose.
Operating EM-2260 Computer Via Serial Console
Follow the following steps to operate EM-2260 computer via serial console port.
1. Power off EM2260.
2. Connect the serial Console Cable.
3. Go back to the development workstation and start a terminal program (for example,
HyperTerminal or PComm) by using the settings shown below for the COM port.
Baud rate
115200bps
Parity
None
Data bits
8
Stop bits
1
Flow Control
None
Terminal
ANSI
