EM-2260-CE User’s Manual Boot Loader and Console Port

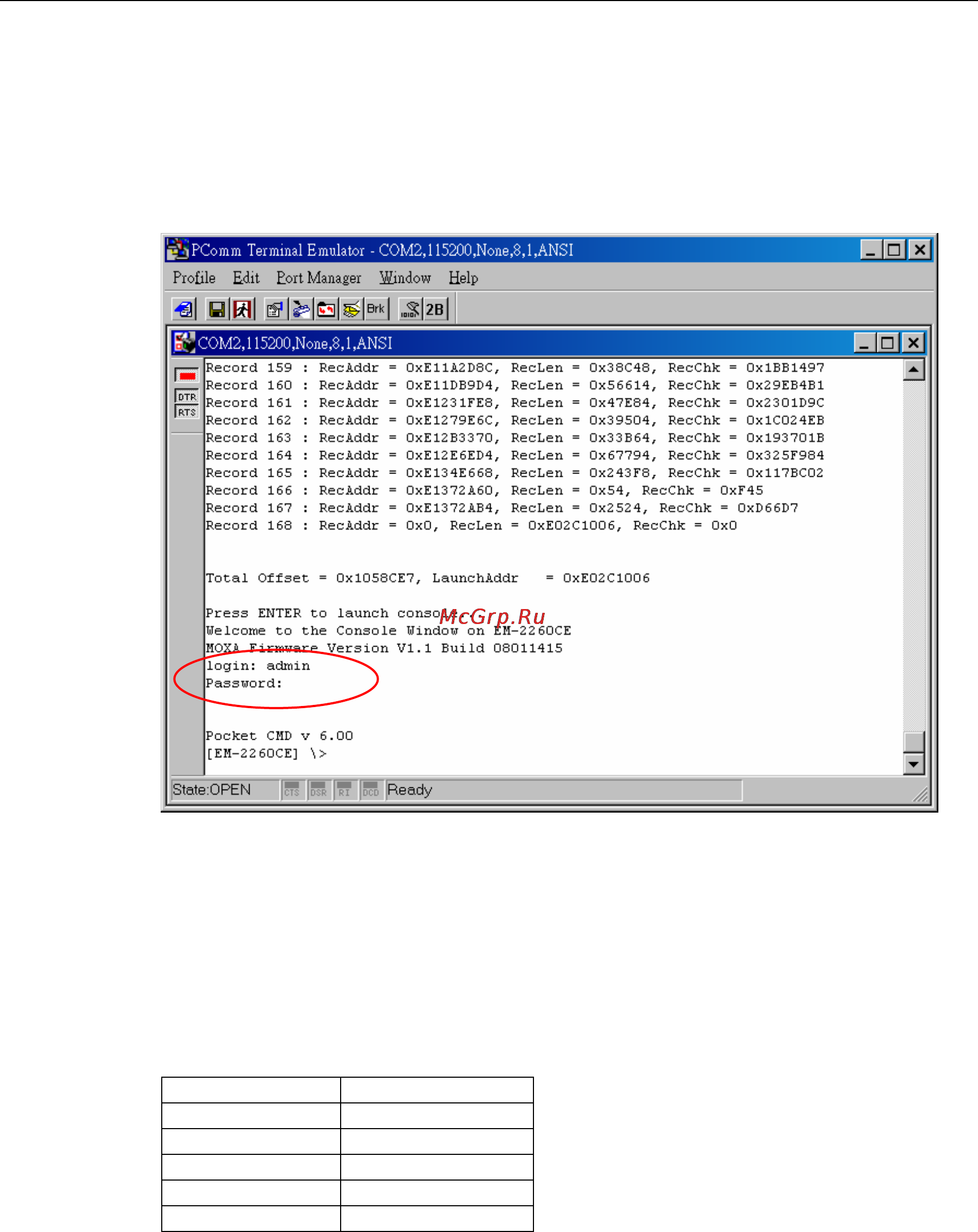

4. Power on to cold reset EM-2260, it may takes 30 to 60 seconds for the operating system to
boot up.
5. After a successful connection, type the login name and password as requested to logon the
computer. The default values are both “admin”.
Login: admin
Password: admin
Go to Boot Loader Menu from Console
If the computer is not working properly or the system cannot boot up successfully. You can use
following steps to go to Boot Loader menu.
1. Power off EM2260.
2. Connect the serial Console Cable.
3. Go back to the development workstation and start a terminal program (for example,
HyperTerminal or PComm) by using the settings shown below for the COM port.
Baud rate
115200bps
Parity
None
Data bits
8
Stop bits
1
Flow Control
None
Terminal
ANSI
3-3
