IA260-261-262 EM-2260 LX User’s Manual Getting Started

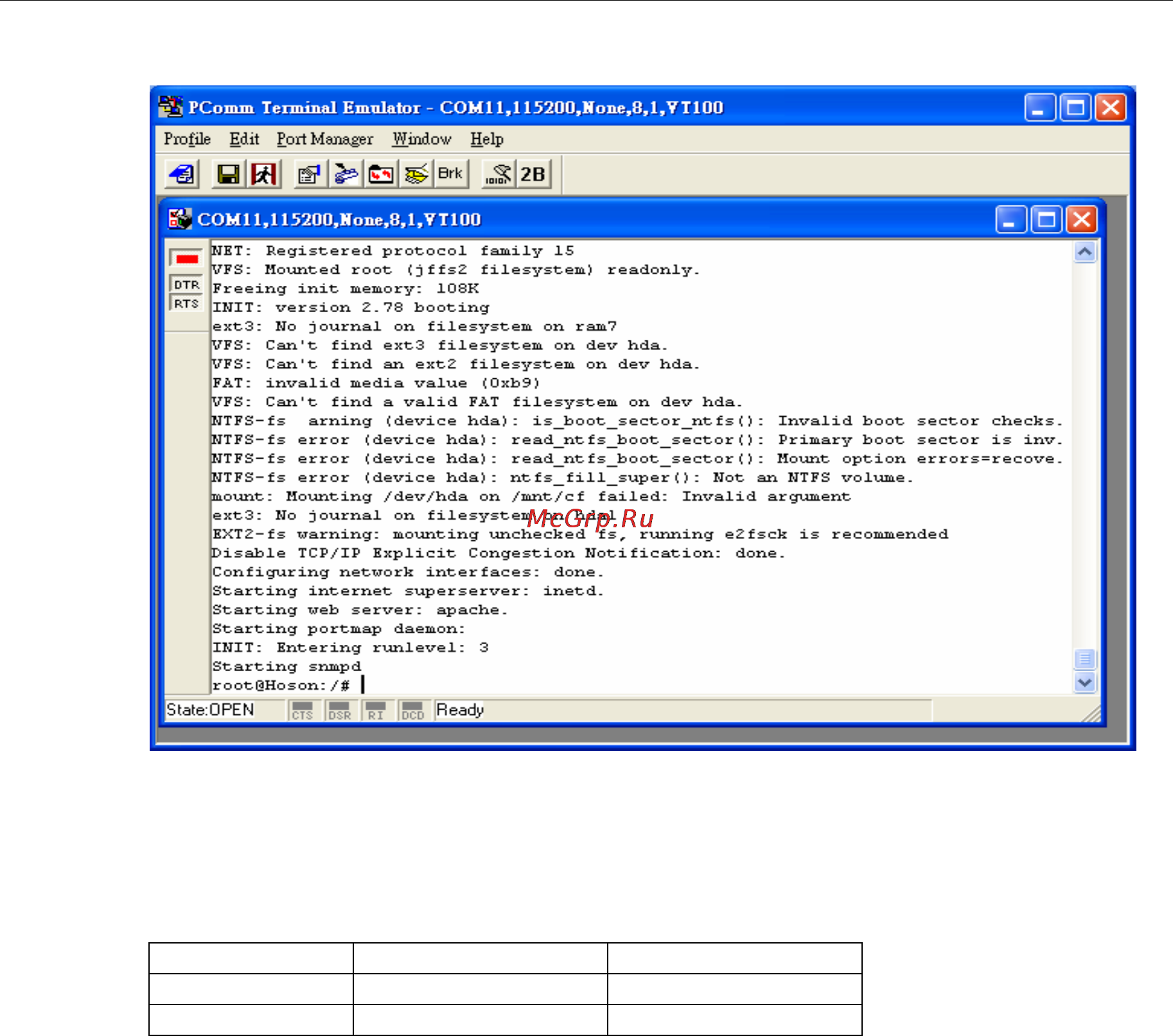

Once the connection is established, the following window will open.
Telnet Console
If you know at least one of the two IP addresses and netmasks, then you can use Telnet to connect
to the IA260/IA261/IA262/EM-2260’s console utility. The default IP address and Netmask for
each of the two ports are given below:
Default IP Address Netmask
LAN 1
192.168.3.127 255.255.255.0
LAN 2
192.168.4.127 255.255.255.0
Use a cross-over Ethernet cable to connect directly from your PC to the
IA260/IA261/IA262/EM-2260. You should first modify your PC’s IP address and netmask so that
your PC is on the same subnet as one of IA260/IA261/IA262/EM-2260’s two LAN ports. For
example, if you connect to LAN 1, you can set your PC’s IP address to 192.168.3.126 and netmask
to 255.255.255.0. If you connect to LAN 2, you can set your PC’s IP address to 192.168.4.126 and
netmask to 255.255.255.0.
To connect to a hub or switch connected to your local LAN, use a straight-through Ethernet cable.
The default IP addresses and netmasks are shown above. To log in, type the Login name and
password as requested. The default values are both root:
Login: root
Password: root
