IA260-261-262 EM-2260 LX User’s Manual Getting Started
VGA Console
You can connect VGA port to a LCD monitor with VGA interface. Then you connect a keyboard
with USB interface to USB port. You will see a login request on the LCD monitor. To log in, type
the Login name and password as requested. The default values are both root:
Login: root
Password: root
Configuring the Ethernet Interface
The network settings of the IA260/IA261/IA262/EM-2260 can be modified with the Debug Port,
or online over the network.
Modifying Network Settings
In this section, we use the serial console to configure the network settings of the target computer.
1.
Follow the instructions given in a previous section to access the Console Utility of the target
computer via the serial console port, and then type

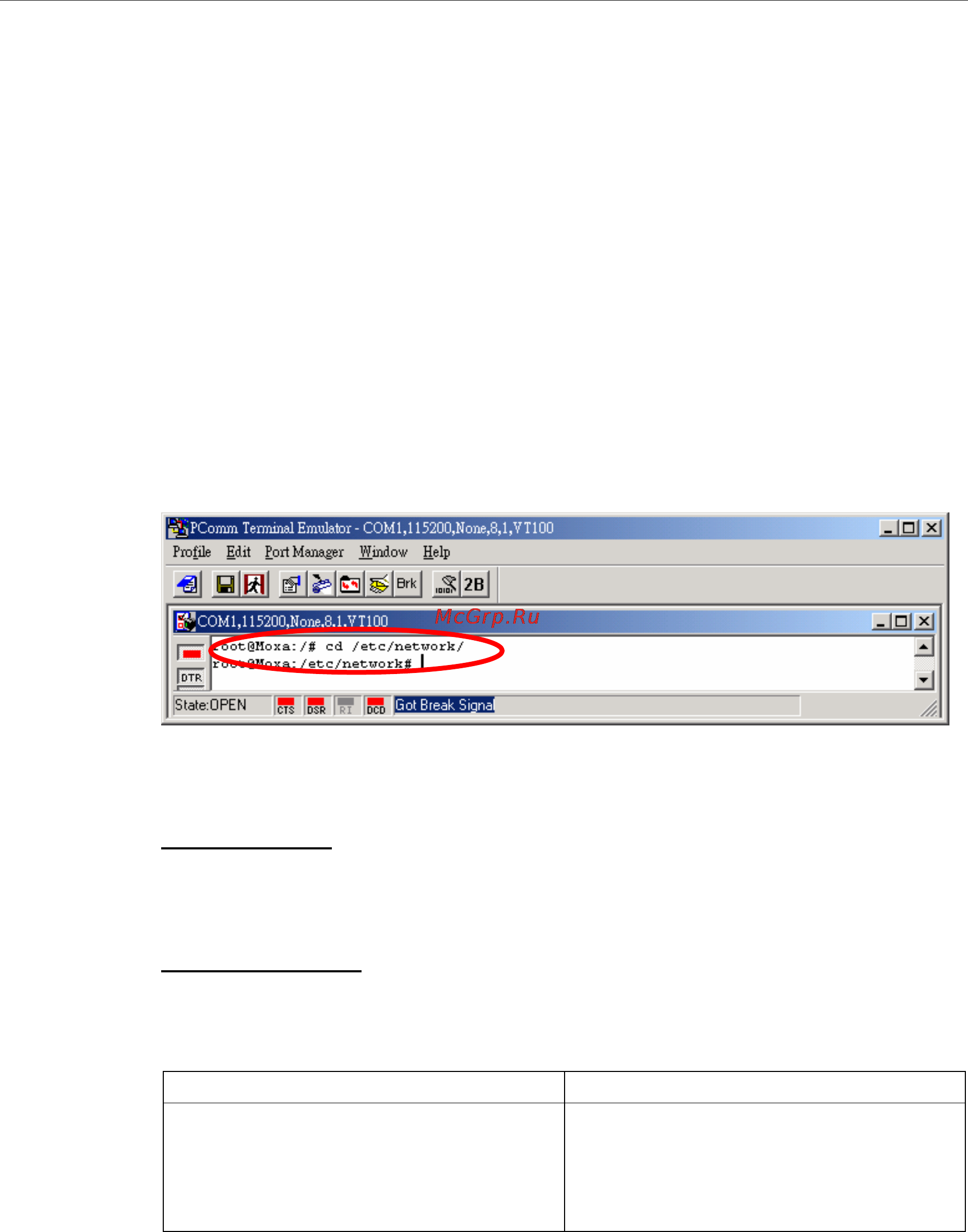

#cd /etc/network
to change directories.
2.
Type
#vi interfaces
to edit the network configuration file with vi editor. You can
configure the Ethernet ports of the IA260/IA261/IA262/EM-2260 for static or dynamic
(DHCP) IP addresses.
Static IP addresses:
As shown below, 4 network addresses must be modified: address, network, netmask, and
broadcast. The default IP addresses are 192.168.3.127 for LAN1 with default netmask of
255.255.255.0.
Dynamic IP addresses
:
By default, the IA260/IA261/IA262/EM-2260 is configured for “static” IP addresses. To
configure one or both LAN ports to request an IP address dynamically, replace static with
dhcp and then delete the address, network, netmask, and broadcast lines.
Default Setting for LAN1 Dynamic Setting using DHCP
iface eth0 inet static
address 192.168.3.127
network: 192.168.3.0
netmask 255.255.255.0
broadcast 192.168.3.255
iface eth0 inet dhcp
2-6
