IA260-261-262 EM-2260 LX User’s Manual Managing Communications

Web Service—Apache

The Apache web server’s main configuration file is /etc/apache/conf/httpd.conf, with the

default homepage located at

/home/httpd/htdocs/index.html. Save your own homepage to the

following directory:

/home/httpd/htdocs/

Save your CGI page to the following directory:

/home/httpd/cgi-bin/

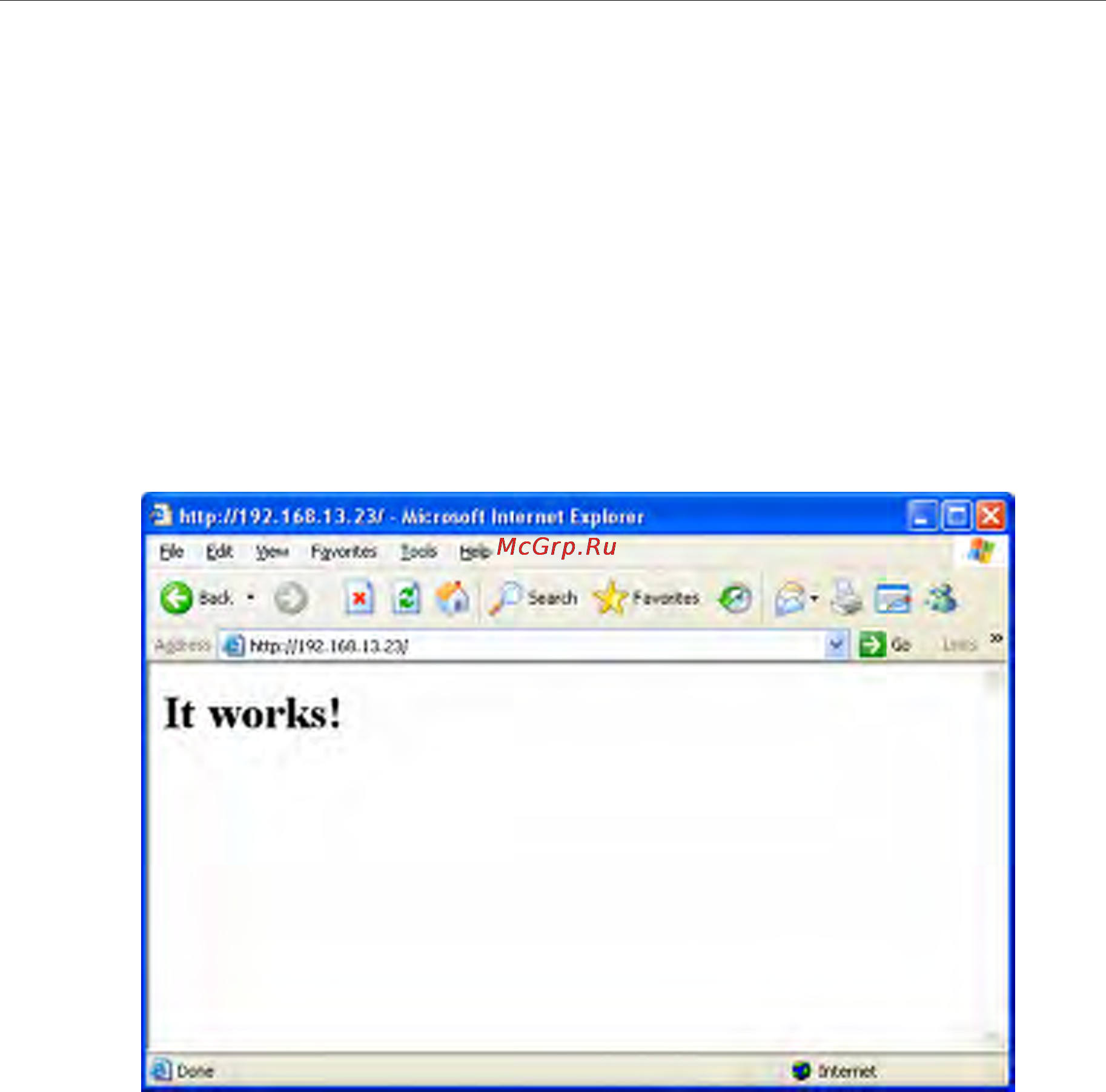

Before you modify the homepage, use a browser (such as Microsoft Internet Explorer or Mozilla

Firefox) from your PC to test if the Apache Web Server is working. Type the IP address of LAN1

or LAN2 in the browser’s address box to open the homepage. E.g , type http://192.168.13.23 in

the address box.

4-3
